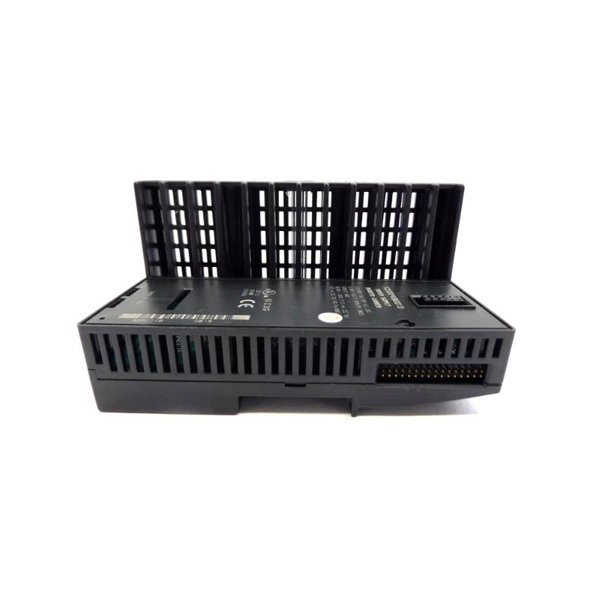

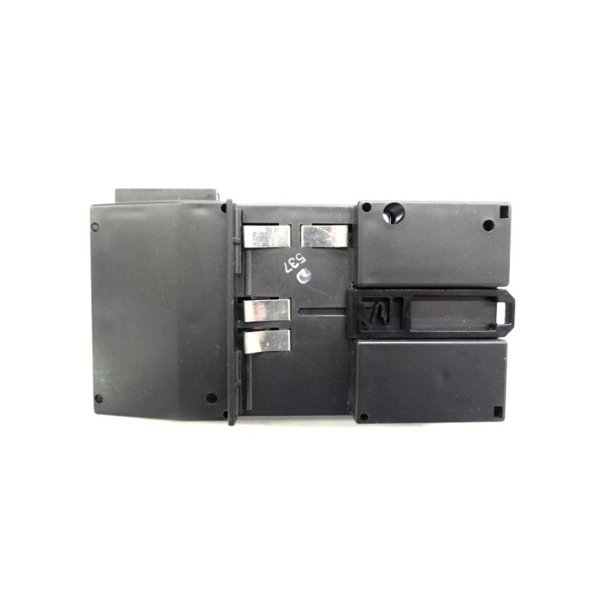

General Electric IC200PWB001D Power Supply Booster Carrier Module

​The GE Fanuc IC200PWB001D is a Power Supply Booster Carrier Module within the VersaMax series, engineered to augment the power capacity of automation systems by facilitating the integration of additional power supplies. This module ensures that all I/O modules positioned to its right receive consistent and reliable power, thereby enhancing the overall scalability and efficiency of the system.​

Product Specifications

Product Applications

The IC200PWB001D is utilized across various industrial sectors, including:​

1. Manufacturing Plants: Enhances control systems by supporting additional I/O modules, facilitating complex manufacturing processes.​

2. Energy Sector: Supports extensive monitoring and control systems in power generation and distribution.​

3. Water Treatment Facilities: Enables integration of multiple sensors and actuators for efficient water management.​

4. Automotive Industry: Assists in expanding control systems to accommodate additional machinery and robotics.​

5. Food and Beverage Industry: Supports the addition of control modules necessary for complex processing and packaging lines.​

Product Advantages

1. Scalability: Facilitates system expansion by accommodating additional I/O modules without compromising performance.​

2. Flexibility: Compatible with standard VersaMax power supplies, eliminating the need for specialized units.​

3. Ease of Installation: Designed for DIN rail mounting, allowing straightforward integration into existing systems.​

4. Reliability: Equipped with LED indicators for real-time status monitoring, ensuring system integrity.​

5. Compact Design: Occupies minimal space, optimizing control cabinet layout.​

Frequently Asked Questions (FAQ)

1. What is the primary function of the IC200PWB001D module?

   • It serves as a booster carrier, enabling the addition of extra power supplies to support additional I/O modules in a VersaMax system.​

2. Is the IC200PWB001D compatible with all VersaMax power supplies?

   • Yes, it is designed to work seamlessly with standard VersaMax power supplies.​

3. Does the booster carrier occupy one of the I/O module slots?

   • No, the booster power supplies do not consume any of the available module slots.​

4. How is the IC200PWB001D mounted within the control system?

   • It is designed for DIN rail mounting, specifically 7.5 mm x 35 mm rails.​

5. What are the LED indicators on the module for?

   • The PWR LED indicates the proper operation of the attached booster supply, while the OK LED signifies the proper operation of the CPU/NIU and booster power supply.​

6. Can multiple booster carriers be used in a single system?

   • Yes, multiple booster carriers can be integrated to support extensive I/O module expansions.​

7. What is the operating temperature range of the IC200PWB001D?

   • It operates effectively within a temperature range of -40°C to +70°C.​

8. Is any special configuration required after installing the booster carrier?

   • No special configuration is necessary; it integrates seamlessly with the existing system.​

9. Does the booster carrier provide power to modules on both sides?

   • No, it supplies power to all modules to its right until the next booster power supply.​

10. What precautions should be taken during installation?

    • Ensure that the DIN rail is properly grounded for EMC protection and that the rail finish is unpainted to provide a conductive surface.
