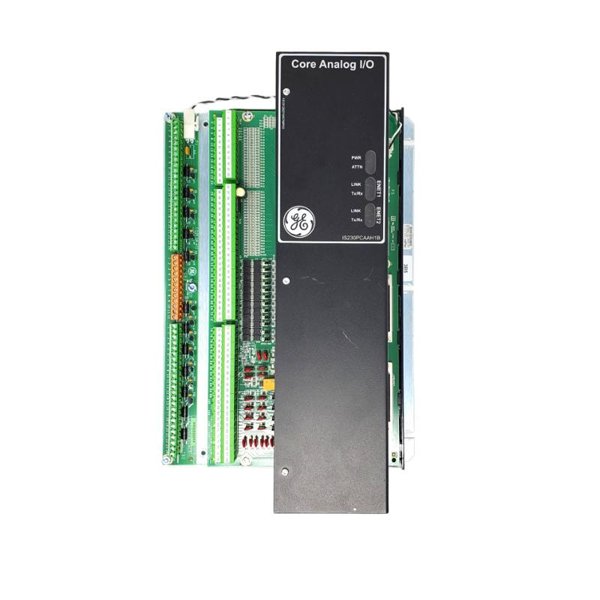

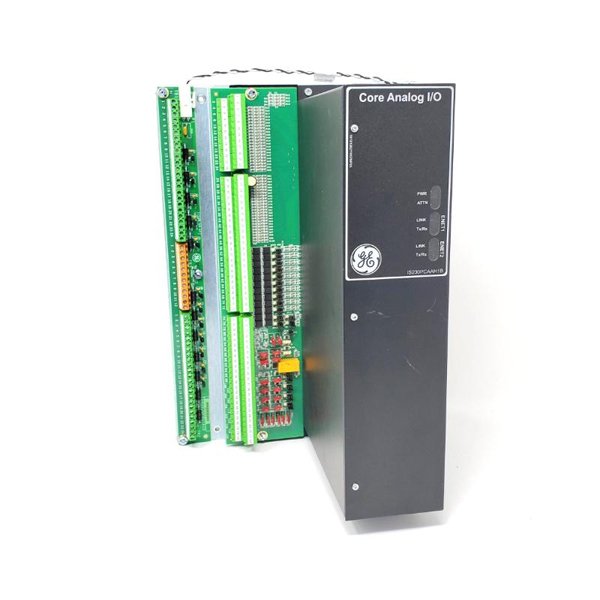

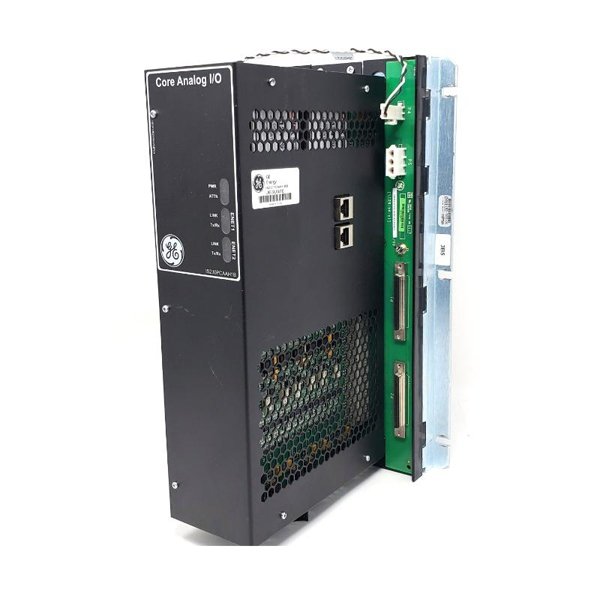

General Electric IS230PCAAH1A Core Analog Module

The GE IS230PCAAH1A Core Analog Module is a high-performance component designed for use in GE’s distributed control systems (DCS). It is part of the Mark VIe control system and serves as a key element in the operation of complex industrial systems, particularly for analog signal processing. The module is engineered to deliver precision and reliability in high-demand environments, ensuring seamless integration with other control modules and system components.

Technical Specifications

GE IS230PCAAH1A Applications

• Power Generation: Integration with turbine and generator controls.

• Oil & Gas: Monitoring and control of equipment such as pumps and compressors.

• Manufacturing: Automation of process controls in various industrial manufacturing settings.

• Chemical Processing: Control of reactors, mixers, and other chemical process equipment.

• Water Treatment: Ensuring proper monitoring and control of water treatment facilities.

GE IS230PCAAH1A Advantages

• Precision: Provides high accuracy in processing both analog inputs and outputs.

• Reliability: Built to perform reliably in demanding industrial environments with a wide operating temperature range.

• Flexible Integration: Easily integrates into GE’s Mark VIe control systems and can work with a variety of devices and systems.

• Robust Design: Designed for durability and stability, ensuring that operations continue without interruption even under extreme conditions.

• Low Power Consumption: Operates efficiently, helping reduce energy costs in large-scale systems.

• Scalability: Compatible with other GE control system modules, making it easy to expand system capabilities as needed.

FAQ

1. What types of signals does the IS230PCAAH1A handle?

   It handles both voltage and current analog signals, supporting a variety of industrial applications.

2. How does the IS230PCAAH1A integrate with other modules?

   The module integrates seamlessly with GE’s Mark VIe distributed control system and other control modules via Ethernet or serial communication.

3. Can the IS230PCAAH1A be used in hazardous environments?

   Yes, it is designed to operate in harsh industrial environments with a temperature range from -40°C to +70°C.

4. What is the power consumption of the IS230PCAAH1A module?

   The module consumes 2.5 W of power during operation.

5. What kind of mounting does the IS230PCAAH1A require?

   The module is rack-mounted, making installation in standard control panels easy.

6. Is the IS230PCAAH1A compatible with other GE control modules?

   Yes, it is fully compatible with other modules in GE’s Mark VIe series and other related systems.

7. What is the size and weight of the IS230PCAAH1A?

   The module measures 177.1 × 137.7 × 78.7 mm and weighs 0.36 kg.

8. What communication protocols are supported by the IS230PCAAH1A?

   The module supports both Ethernet and serial communication protocols for flexible system integration.

9. Can the IS230PCAAH1A process both inputs and outputs?

   Yes, it can handle both analog inputs and outputs, which is crucial for control and monitoring applications.

10. What is the typical operating environment for the IS230PCAAH1A?

    It is suitable for industrial environments with extreme conditions, including power plants, oil and gas, and manufacturing.
