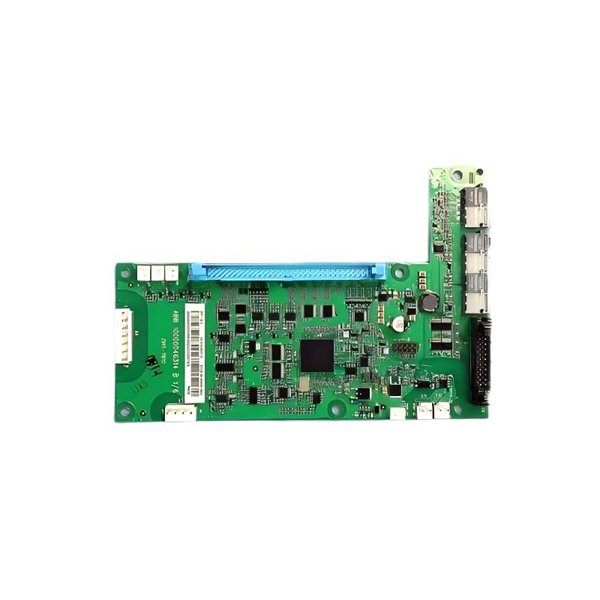

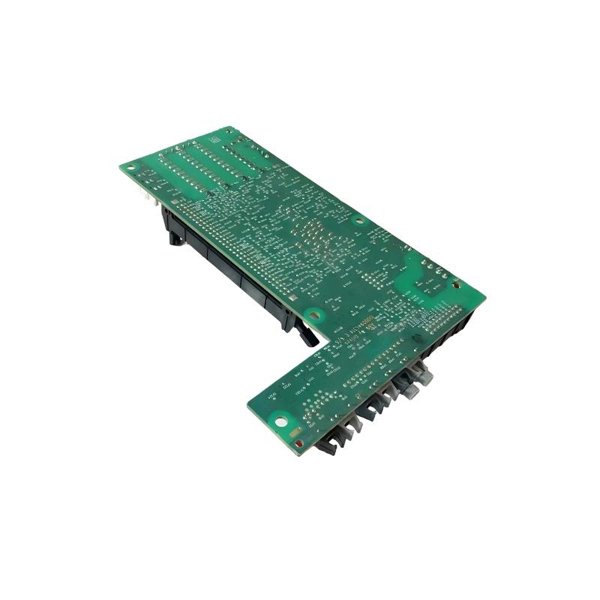

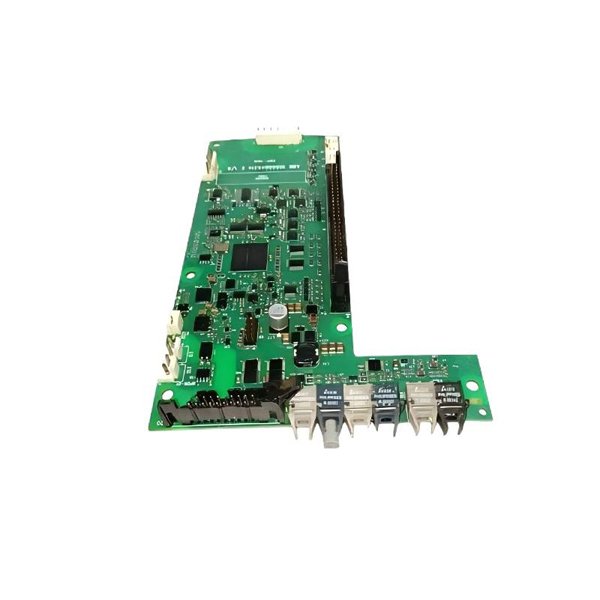

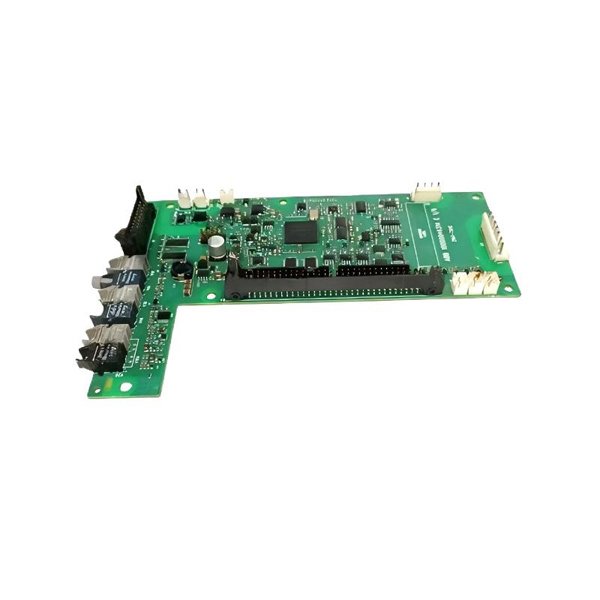

ABB ZINT-7B1C+N8205 3AXD50000004365 MC Interface Board

The ABB ZINT‑7B1C+N8205 MC Interface Board (order code 3AXD50000004365) is a compact, multichannel communication module engineered to bridge ABB controllers, drives, and third‑party field devices in demanding industrial environments. Designed around a low‑latency 32‑bit MCU and isolated transceiver architecture, the board guarantees deterministic data exchange across mixed‑protocol networks. A conformally coated PCB, high‑MTBF components, and IEC 61000‑6‑4 EMC compliance make it a reliable backbone for automation systems exposed to electrical noise, vibration, and temperature extremes.

Product Specifications

Applications

• Distributed Control Systems – Connects remote I/O nodes and process controllers over long RS‑485 trunks, ensuring synchronized process data.

• Drive Coordination – Provides deterministic command/feedback loops between ACS and ACS‑S drives and PLCs for line‑shaft applications.

• OEM Machine Integration – Bridges CANopen motion networks with Modbus diagnostics for packaging, textile, and woodworking machines.

• Energy Monitoring – Aggregates smart‑meter data and forwards KPIs to SCADA or MES layers in real time.

• Building Automation – Acts as a protocol gateway between HVAC units, lighting controllers, and security panels, reducing gateway count.

• Test Benches & Labs – Offers galvanic isolation and surge immunity needed for precision instrumentation in EMC‑rich test cells.

Product Advantages

• Trim 0.2 kg Form Factor – Light enough for DIN‑rail enclosures where every gram matters, yet rugged for industrial duty.

• Multi‑Protocol on One Board – Handles Modbus, CANopen, and ABB DriveBus simultaneously; eliminates external gateways.

• Robust 2.5 kV Isolation – Protects control logic from field transients and ground‑loop interference.

• Field‑Upgradeable Firmware – DFU utility loads updates without removing the board, minimizing downtime.

• Low Power Consumption – Typical draw of 6 W eases demand on 24 VDC power supplies and UPS systems.

• Conformal Coating – Guards against moisture, dust, and corrosive atmospheres, extending service life.

• Diagnostic LEDs – Per‑channel status lights accelerate commissioning and troubleshooting.

• EMC Hardened – Meets IEC 61000‑6‑4 Class A emission limits and 10 V/m immunity—ideal for inverter rooms.

• Tool‑Free Installation – Spring‑lock terminals and DIN clip cut wiring and mounting time by up to 40 %.

• Global Approvals – CE, UKCA, cULus Recognition, and RCM certifications streamline multinational deployments.

FAQ

1. Which cable type is recommended for RS‑485?

   Use shielded twisted pair, 120 Ω impedance, AWG 22–24.

2. Is live insertion allowed?

   Yes. The board tolerates hot‑swap on powered 24 VDC rails and resumes communication within three seconds.

3. How many nodes can one board manage?

   Up to 64 Modbus slaves and 127 CANopen devices concurrently.

4. What is the default baud rate?

   Factory default is 115.2 kbit/s; auto‑negotiation activates on first traffic.

5. Does the board log faults?

   A 64‑entry circular fault log is accessible via Modbus holding registers 0x3000–0x303F.

6. Are termination resistors built in?

   Each RS‑485 segment has switchable 120 Ω termination on the terminal header.

7. How is firmware updated?

   Connect via micro‑USB, open ABB DFU‑Suite, select the firmware file, and flash (typical time < 60 s).

8. What is the idle power draw?

   ≈ 4.8 W with all channels enabled but no traffic.

9. Do I need forced cooling?

   Natural convection suffices up to 50 °C ambient; above that, ensure cabinet airflow.

10. Is a Declaration of Conformity supplied?

    Yes. A CE/UKCA DoC ships with each unit and is downloadable from the ABB product page.
