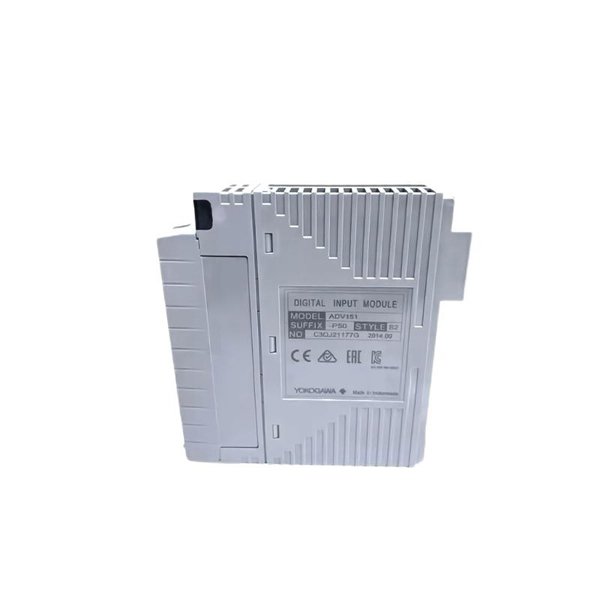

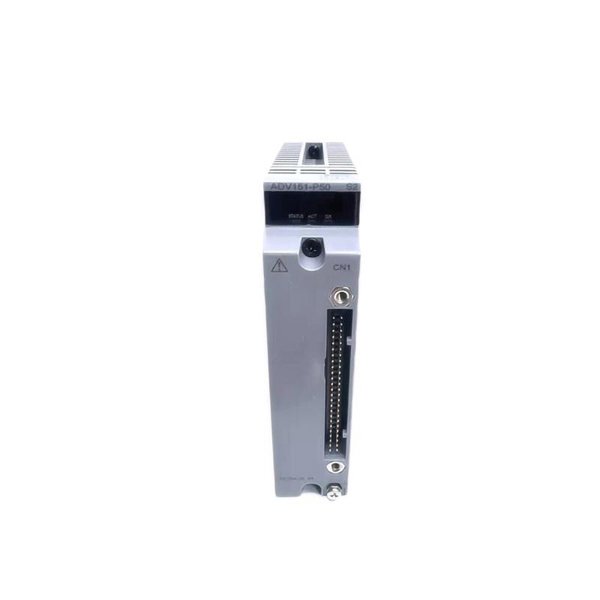

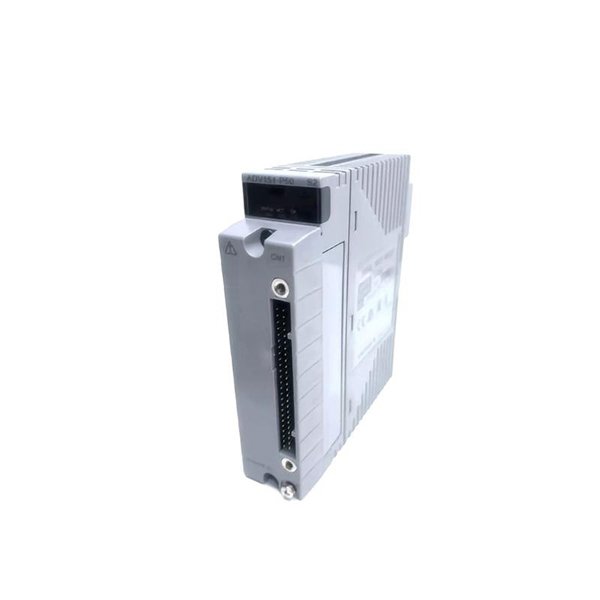

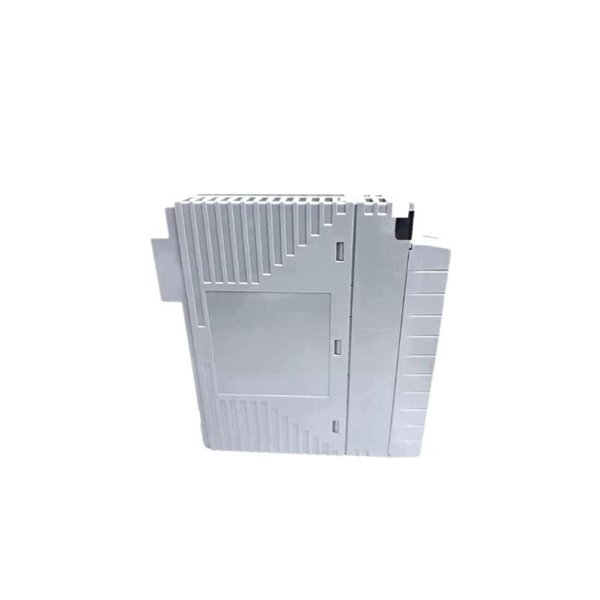

Yokogawa ADV151-P50/D5A00 Digital Input Module

The Yokogawa ADV151-P50/D5A00 is a precision-engineered digital input module designed for seamless integration into Yokogawa’s CENTUM VP and related automation systems. This module excels in capturing discrete input signals from various field devices, such as switches, relays, and sensors, providing accurate and reliable status information to the control system. The ADV151-P50/D5A00 variant incorporates enhanced diagnostic capabilities and improved electrical noise immunity, which increases the reliability of signal detection in industrial environments.

Built for demanding process control applications, this module supports up to 16 digital input channels with nominal 24 V DC input signals. Its rugged design ensures stable performance under typical plant conditions, including varying temperatures and high humidity. The module’s compact form factor and compatibility with Yokogawa’s modular rack system make it easy to install and maintain, allowing plants to scale their digital I/O capacity efficiently.

Product Specifications

Product Applications

• Industrial Automation: Detecting on/off status of devices such as valves, pumps, and safety interlocks within automated manufacturing plants.

• Power Generation: Monitoring breaker states, alarms, and auxiliary contact signals to maintain reliable power plant operation.

• Oil & Gas: Capturing digital signals from field instrumentation and safety shutdown devices to protect equipment and personnel.

• Water Treatment: Monitoring input signals from level switches, motor starters, and other critical equipment in water and wastewater facilities.

• Building Management Systems: Integrating with fire alarms, access controls, and environmental monitoring systems for comprehensive building automation.

• Chemical Processing: Providing reliable digital input feedback for batch control systems and emergency shutdown sequences.

Product Advantages

• Robust Signal Integrity: Designed to resist electrical noise common in industrial environments, ensuring accurate and consistent input detection.

• High Channel Count: 16 channels per module allow efficient use of rack space and reduce the total number of modules needed.

• Rapid Response: Sub-10 millisecond response time supports fast system reaction to changing process conditions.

• Comprehensive Diagnostics: Built-in status monitoring and fault detection simplify troubleshooting and maintenance activities.

• Compact and Modular: Slim design fits easily into Yokogawa’s rack systems, facilitating easy upgrades and expansions.

• Wide Environmental Tolerance: Suitable for operation in temperatures ranging from 0 to 55°C with high humidity tolerance, supporting diverse plant environments.

• Low Power Consumption: Energy-efficient design minimizes heat generation and reduces power costs.

• Seamless Integration: Fully compatible with CENTUM VP, ProSafe-RS, and other Yokogawa control platforms, ensuring interoperability.

• Global Certifications: Compliance with international standards guarantees suitability for worldwide deployment.

• Reliable Support Network: Supported by Yokogawa’s global service network, providing access to spare parts and technical expertise.

Frequently Asked Questions (FAQ)

1. What types of input signals can the ADV151-P50/D5A00 accept?

   It supports dry contact inputs and NAMUR sensor signals.

2. How many digital inputs are available on the module?

   The module has 16 discrete input channels.

3. What is the nominal input voltage for the digital inputs?

   The nominal input voltage is 24 V DC.

4. What is the typical power consumption of this module?

   Approximately 4.2 watts during normal operation.

5. What is the response time for digital signal changes?

   The response time is less than or equal to 10 milliseconds.

6. Can the module detect wiring faults or channel failures?

   Yes, it has built-in diagnostics for wiring faults and channel status monitoring.

7. Is the module compatible with Yokogawa’s CENTUM VP system?

   Yes, it is designed for full compatibility with CENTUM VP and other Yokogawa systems.

8. What are the operating temperature limits of the module?

   The module operates reliably between 0 and 55°C.

9. How is the module physically installed?

   It is mounted in a rack system, compatible with Yokogawa modular racks.

10. Is the module suitable for hazardous areas?

    This module is typically installed in safe control rooms and is not designed for intrinsic safety in hazardous locations.
