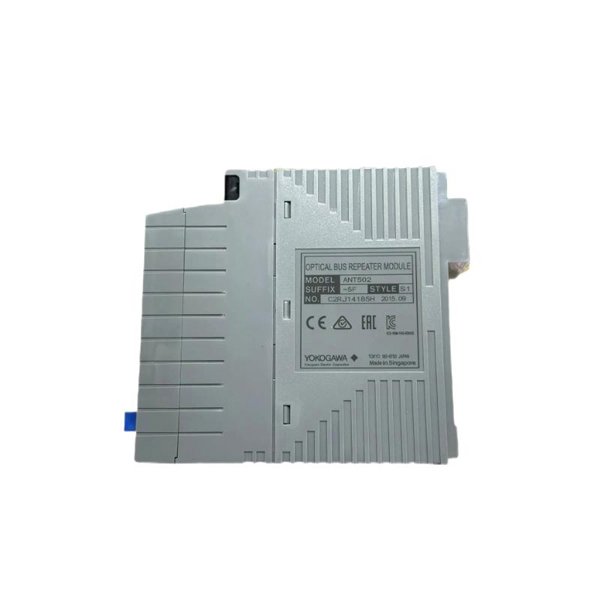

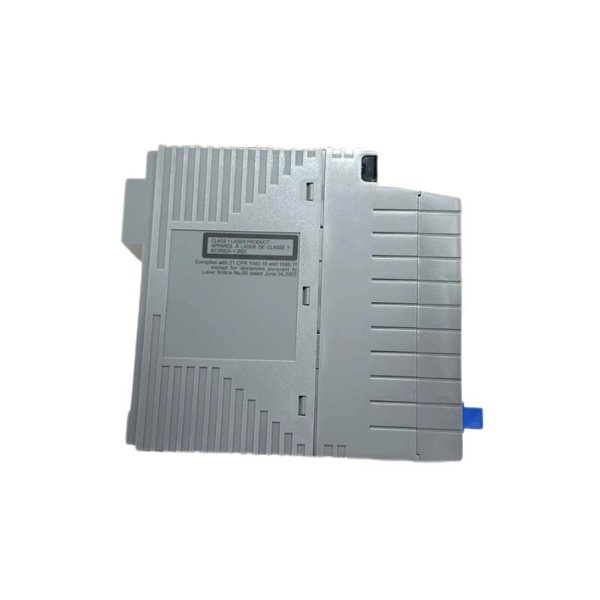

Yokogawa ANT502-5F Bus Repeater Slave Module

The Yokogawa ANT502-5F is an Optical ESB Bus Repeater Slave Module engineered to extend the communication capabilities of Yokogawa’s control systems. Designed for seamless integration within the Optical ESB Bus architecture, it facilitates reliable data transmission over extended distances, ensuring optimal performance in complex industrial environments. The ANT502-5F is typically installed in the Optical ESB Bus Node Unit (ANB11) as a slave module and can also be utilized within the Unit for Optical ESB Bus Repeater Module (ANT10U).

Product Specifications

Applications

The Yokogawa ANT502-5F module is utilized in various industrial applications requiring extended communication distances and reliable data transmission:

• Industrial Automation: Enhances communication between field control units and central systems over long distances.

• Power Generation: Facilitates data transfer in large-scale power plants where control systems are spread across vast areas.

• Oil & Gas: Supports reliable communication in extensive pipeline monitoring and offshore platforms.

• Chemical Processing: Ensures consistent data flow in large chemical plants with multiple processing units.

• Water Treatment: Enables centralized control and monitoring of widespread water treatment facilities.

• Pharmaceutical: Assists in maintaining stringent control over dispersed manufacturing processes.

Product Advantages

• Extended Communication Range: Supports data transmission up to 5 km, accommodating large industrial complexes.

• Flexible Network Topology: Compatible with both chain and star configurations, allowing adaptable system design.

• High Reliability: Designed to maintain data integrity over long distances, reducing the risk of communication errors.

• Compact and Lightweight: With a weight of 0.25 kg and compact dimensions, it allows for easy installation in space-constrained environments.

• Standardized Connectivity: Utilizes LC optical connectors compliant with IEC61754-20, ensuring compatibility with standard fiber optic components.

• Low Power Consumption: Operates with a current consumption of 0.5 A, promoting energy efficiency.

• Robust Design: Built to withstand harsh industrial conditions, ensuring long-term operational stability.

• Seamless Integration: Designed for compatibility with Yokogawa’s ANB11 and ANT10U units, facilitating straightforward system expansion.

Frequently Asked Questions (FAQ)

1. Q: What is the primary function of the ANT502-5F module?

   A: The ANT502-5F serves as an Optical ESB Bus Repeater Slave Module, extending communication distances and enhancing data transmission reliability in Yokogawa control systems.

2. Q: What are the supported network topologies for the ANT502-5F?

   A: It supports both chain and star configurations, offering flexibility in system design.

3. Q: What is the maximum transmission distance of the ANT502-5F?

   A: The module can transmit data over distances up to 5 km.

4. Q: Is the ANT502-5F compatible with other Yokogawa modules?

   A: Yes, it is designed for integration with Yokogawa’s ANB11 and ANT10U units.

5. Q: What type of optical connectors does the ANT502-5F use?

   A: It utilizes LC connectors compliant with IEC61754-20 standards.

6. Q: What are the dimensions and weight of the ANT502-5F module?

   A: The module measures 155.9 x 32.8 x 130 mm and weighs 0.25 kg.

7. Q: What is the operating temperature range for the ANT502-5F?

   A: The module operates effectively within a temperature range of -10°C to +55°C.

8. Q: How many connections can the ANT502-5F support?

   A: It supports up to 8 paired connections between ANT401 and ANT502 modules.

9. Q: What is the current consumption of the ANT502-5F?

   A: The module has a current consumption of 0.5 A

10. Q: Can the ANT502-5F be hot-swapped or replaced during system operation?

    A: Hot-swapping is not recommended due to potential disruption of optical communication. Always follow Yokogawa’s official maintenance procedures for module replacement.
