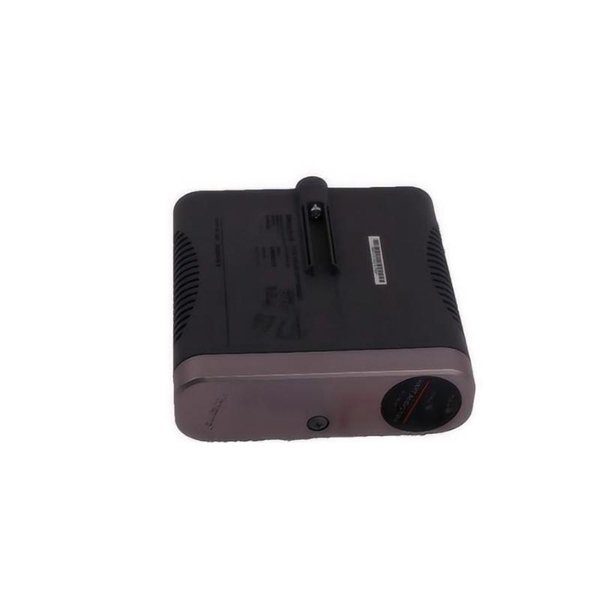

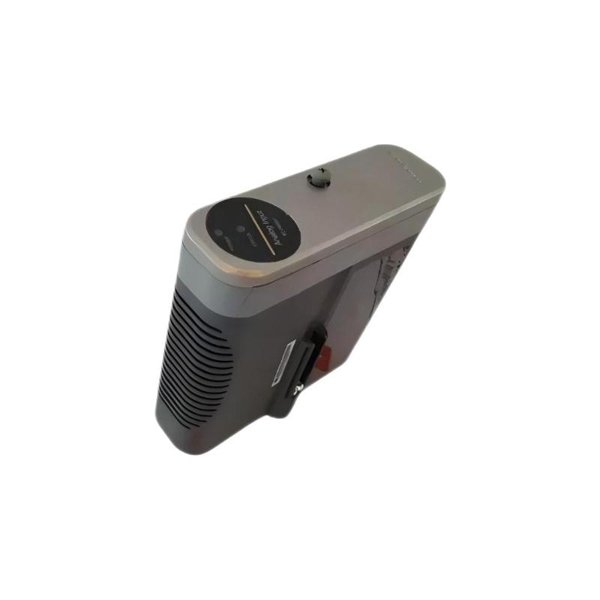

Honeywell 8C-PAIN01 51454356-175 Analog Input Module

The Honeywell 8C-PAIN01 51454356-175 is a high-performance analog input module designed for integration within Honeywell’s Experion Process Knowledge System (PKS) and C300 controller platforms. This module facilitates the accurate acquisition of analog signals from field devices such as transmitters and sensors, converting them into digital data for processing within the control system.

With support for multiple input types, including current and voltage signals, the 8C-PAIN01 offers flexibility in accommodating various field instruments. Its design emphasizes high accuracy, robust isolation, and reliable performance, making it suitable for critical industrial applications.

Technical Specifications

Product Applications

• Oil & Gas Industry: Monitoring pressure, temperature, and flow in upstream and downstream operations.

• Chemical Processing: Precise measurement of process variables in batch and continuous processes.

• Power Generation: Acquisition of analog signals from turbines, boilers, and auxiliary systems.

• Pharmaceutical Manufacturing: Ensuring accurate environmental and process monitoring for compliance.

• Water & Wastewater Treatment: Monitoring levels, flows, and chemical dosing processes.

• Food & Beverage Industry: Controlling temperatures and flows in processing and packaging lines.

Product Advantages

• High Accuracy and Resolution: Ensures precise data acquisition for critical control applications.

• Flexible Input Support: Accommodates both current and voltage signals, enhancing versatility.

• Robust Isolation: Protects the system from electrical noise and ground loops.

• Overload Protection: Safeguards the module against signal overrange conditions.

• Compact Design: Saves space within control cabinets, facilitating efficient installations.

• Seamless Integration: Designed for compatibility with Honeywell’s Experion PKS and C300 systems.

Frequently Asked Questions (FAQ)

1. What types of signals can the 8C-PAIN01 module handle?

   It supports both current (4–20 mA) and voltage (0–10 V) analog signals.

2. How many input channels are available on the module?

   The module provides 16 single-ended analog input channels.

3. Is the module compatible with Honeywell’s C300 controller?

   Yes, it is designed for seamless integration with the C300 controller and Experion PKS.

4. What is the accuracy of the analog inputs?

   The module offers an accuracy of ±0.1% of full scale.

5. Does the module provide electrical isolation?

   Yes, it offers 1000 VAC RMS or ±1000 VDC isolation to protect against electrical interference.

6. Can the module withstand signal overrange conditions?

   Yes, it has overload protection of 120% for 2 seconds and 150% for 0.1 seconds.

7. What is the operating temperature range of the module?

   It operates reliably within a temperature range of -40°C to +70°C.

8. Is the module suitable for use in hazardous environments?

   Yes, it carries certifications such as ATEX and IECEx for use in hazardous areas.

9. How is the module mounted within the system?

   It is mounted on an IOTA base, facilitating easy installation and maintenance.

10. What is the weight and size of the module?

    The module measures 157 x 106 x 35 mm and weighs 0.45 kg.
