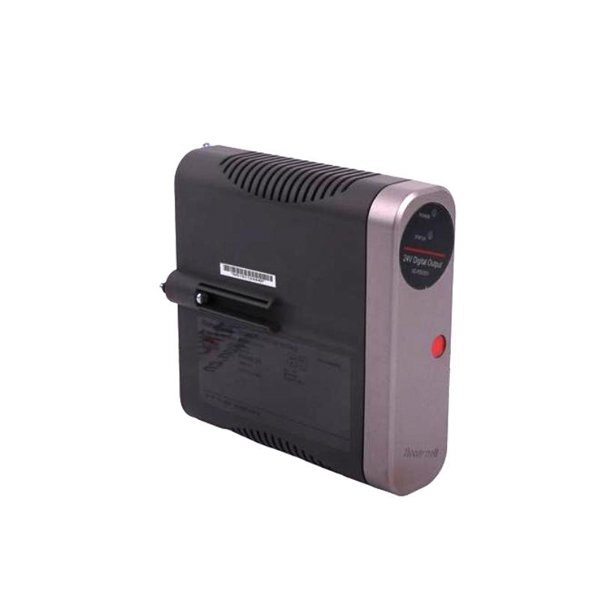

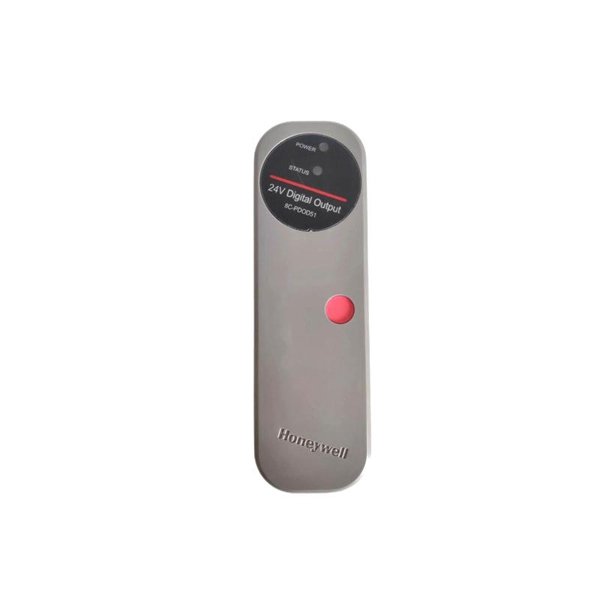

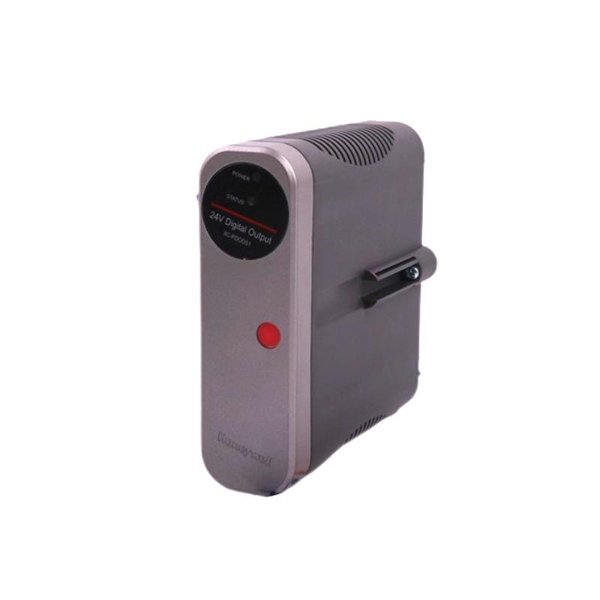

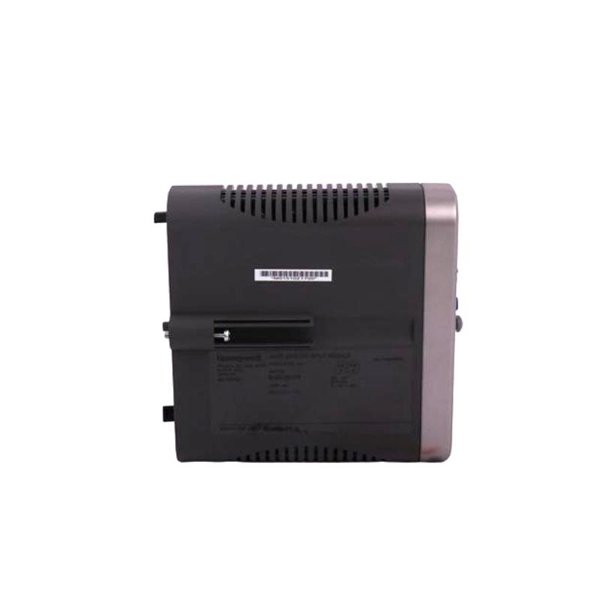

Honeywell 8C-PDOD51 51454361-175 Digital Output Module

The Honeywell 8C-PDOD51 51454361-175 Digital Output Module is a robust and reliable component designed to handle critical control operations in automation systems. As part of Honeywell’s comprehensive control module portfolio, this digital output module is specifically engineered for use in industrial environments where precise and durable performance is necessary. It converts control signals into digital outputs to manage a variety of industrial devices such as actuators, relays, and other field equipment.

The 8C-PDOD51 module provides 16 digital output channels, offering flexibility and scalability for a wide range of applications. Its high reliability and fast response time ensure that it can handle complex processes with precision and efficiency. Built to withstand tough industrial conditions, this module guarantees long-lasting performance while minimizing system downtime and maintenance costs.

Product Parameters

The table below outlines the key specifications for the Honeywell 8C-PDOD51 51454361-175 Digital Output Module:

Product Applications

The Honeywell 8C-PDOD51 51454361-175 Digital Output Module is ideal for a variety of industries that require precise and high-speed control of digital signals. The module is widely used in applications such as:

1. Process Control Systems: The module plays a critical role in the automation of processes like pressure, flow, temperature, and level control in chemical, petrochemical, and pharmaceutical industries.

2. Manufacturing and Assembly Lines: It is used for controlling machinery like actuators, robotic arms, and conveyor belts, ensuring smooth operation in production environments.

3. Energy Management Systems: The module helps in controlling and optimizing the performance of energy equipment, such as HVAC systems and power distribution networks.

4. Building Management Systems (BMS): This module is employed in smart building solutions, managing systems like lighting, HVAC, and fire alarms.

5. Industrial Automation: It interfaces with various industrial equipment like solenoids, valves, and relays to ensure consistent system performance and minimize errors in critical operations.

6. Safety Systems: The module is also vital in safety-critical applications, where it can control emergency shutdown devices, alarms, and other safety features in industrial settings.

Product Advantages

The Honeywell 8C-PDOD51 51454361-175 Digital Output Module offers numerous advantages, making it an essential choice for demanding industrial automation applications:

1. High Reliability: Designed for tough industrial environments, the module ensures dependable operation, even under extreme conditions, reducing downtime and maintenance needs.

2. Fast Response Time: With a response time of just 20 milliseconds, the module ensures quick signal processing, which is essential for real-time control applications.

3. Compact and Easy to Install: Its compact design (60 x 155 x 145 mm) allows it to fit into standard control panels with minimal space requirements, while its DIN rail mounting system makes installation quick and hassle-free.

4. Wide Operating Temperature Range: The module operates efficiently in temperatures ranging from -20°C to 60°C, ensuring performance in both cold and hot industrial environments.

5. Durable Construction: The module is built to withstand shock, vibration, and electrical interference, ensuring long-term durability.

6. Energy Efficient: Designed to operate with minimal power consumption, the module contributes to energy savings across the system.

7. Seamless Integration: Fully compatible with Honeywell’s broader control systems, the module easily integrates with other devices and components within automation setups.

8. Versatility: With 16 output points, it offers ample control options, providing flexibility to manage various industrial systems.

9. Safety and Precision: The high precision and safety features of the module help minimize errors and enhance the overall safety of the system.

10. Low Maintenance: The module is designed for minimal maintenance, helping reduce operational costs and extend the life of the entire system.

Frequently Asked Questions (FAQ)

1. What is the main function of the Honeywell 8C-PDOD51 Digital Output Module?

   • The module is designed to provide digital output signals for controlling industrial devices such as actuators, relays, and solenoids.

2. How many digital output points does this module have?

   • The module provides 16 digital output points.

3. What is the operating voltage for the 8C-PDOD51 module?

   • The module operates at 24V DC.

4. What is the output current per point for this module?

   • Each output point can supply up to 0.5A of current.

5. What is the response time of the module?

   • The module has a response time of 20 milliseconds.

6. How is this module installed?

   • The module is designed for DIN rail mounting, which makes installation easy and quick.

7. What is the operating temperature range for the module?

   • The module can operate in temperatures ranging from -20°C to 60°C.

8. How much does the Honeywell 8C-PDOD51 module weigh?

   • The module weighs 0.3 kg.

9. Can the module be used in hazardous environments?

   • While the module is highly durable and operates in tough conditions, for hazardous environments, specific certifications like ATEX or IECEx may be required.

10. Is the module compatible with other Honeywell control systems?

    • Yes, the module is fully compatible with other Honeywell automation and control systems, ensuring easy integration into existing setups.
