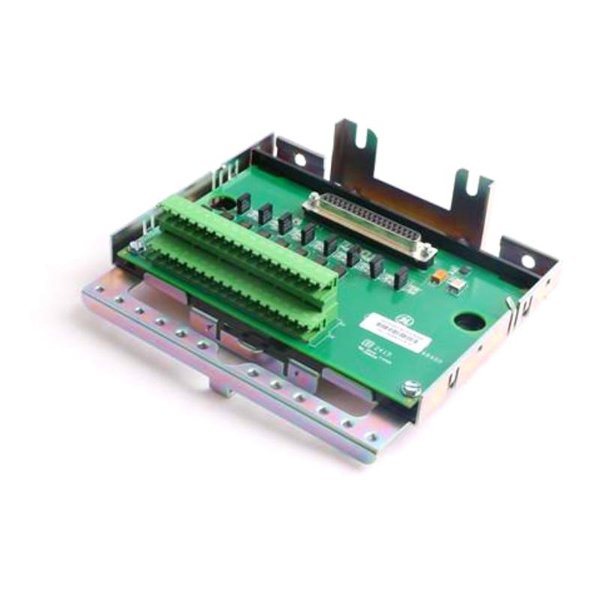

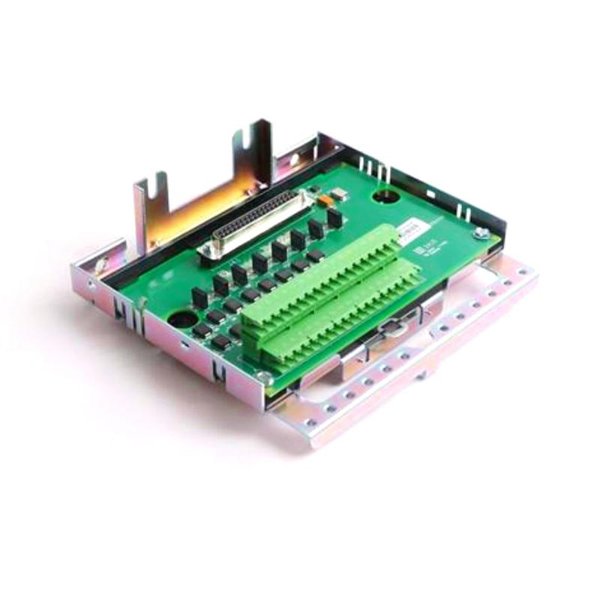

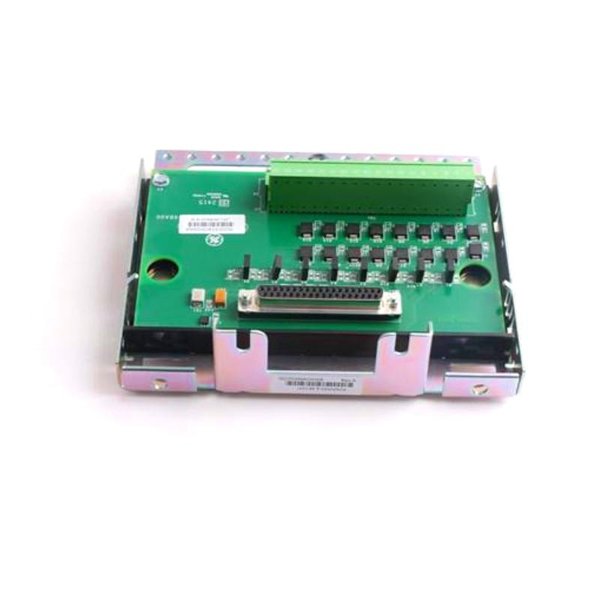

General Electric IS230SNAOH2A Analog Output Board

The GE IS230SNAOH2A Analog Output Board is designed for industrial applications that require high-performance analog output signals. It integrates seamlessly into control systems, offering precise control and reliable signal transmission. The board is part of the GE series of I/O modules, providing flexibility and scalability for process control and automation systems.

Technical Specifications

Product Applications

• Industrial Automation: For controlling actuators, valves, and other analog devices within an automation system.

• Process Control: To interface with machinery and equipment that require continuous analog output signals.

• Energy Systems: Used for managing and regulating power equipment that utilizes analog signals for operational control.

• Temperature and Pressure Control: In systems where precise analog outputs are required to control the heating, ventilation, or pressure systems in industries such as oil & gas, manufacturing, and chemicals.

Product Advantages

• High Precision: Offers accurate analog output, ensuring smooth and reliable control in industrial systems.

• Versatile Compatibility: Integrates easily with various controllers and systems in industrial environments.

• Reliable Performance: Built to withstand the harsh conditions of industrial settings, offering consistent output over long periods.

• Ease of Installation: Simple DIN rail mounting design for fast and efficient setup.

• Wide Temperature Range: Suitable for use in diverse environmental conditions, from cold storage to high-temperature zones.

• Low Power Consumption: Efficient power use, ensuring reduced operational costs.

FAQ

1. What type of outputs can the IS230SNAOH2A provide?

   • The board provides 4-20 mA and 0-10 V analog output signals, ideal for industrial control applications.

2. What is the accuracy of the output signal?

   • The output signal accuracy is ±0.1% of full scale, ensuring precise control in industrial processes.

3. What is the recommended operating temperature range for the IS230SNAOH2A?

   • The recommended operating temperature range is from -20°C to 70°C, making it suitable for a wide range of environments.

4. Can this module be integrated with other GE control systems?

   • Yes, the IS230SNAOH2A is fully compatible with GE’s control systems and can be easily integrated with other I/O modules.

5. What is the power consumption of this module?

   • The IS230SNAOH2A consumes only 5W of power, making it energy-efficient for continuous operation.

6. How is the module mounted?

   • The module is designed for DIN rail mounting, which simplifies installation and provides secure, stable positioning in control cabinets.

7. What is the voltage requirement for this module?

   • The IS230SNAOH2A operates on 24 V DC, commonly used in industrial control environments.

8. Can this board be used in hazardous environments?

   • While this module is designed for robust industrial environments, specific certifications may be required for use in hazardous locations. Consult the technical manual for more details.

9. How many analog output channels are supported by the module?

   • The IS230SNAOH2A supports multiple analog output channels, with each channel providing either 4-20 mA or 0-10 V outputs.

10. Is this module suitable for temperature and pressure control systems?

• Yes, this module is widely used in systems where temperature and pressure need to be controlled with precise analog outputs.
