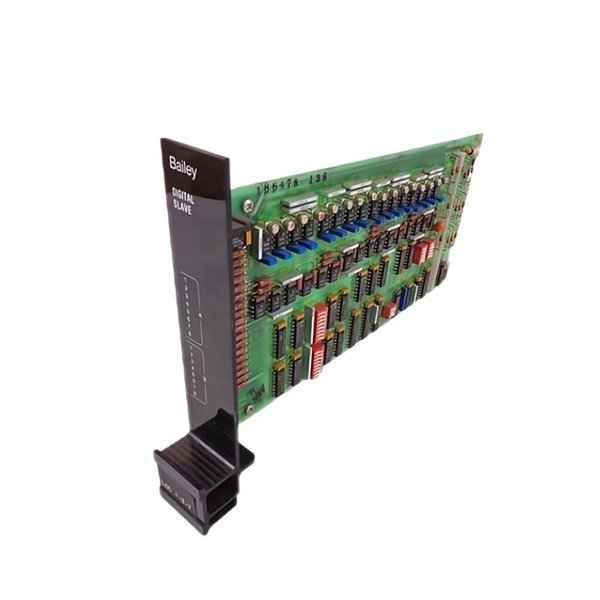

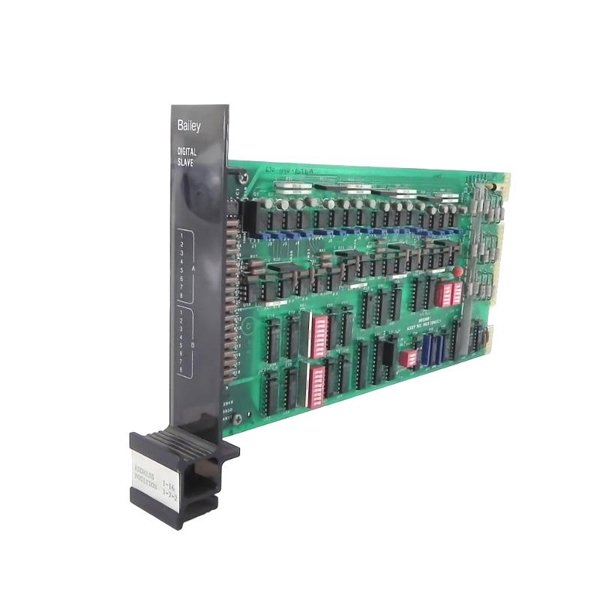

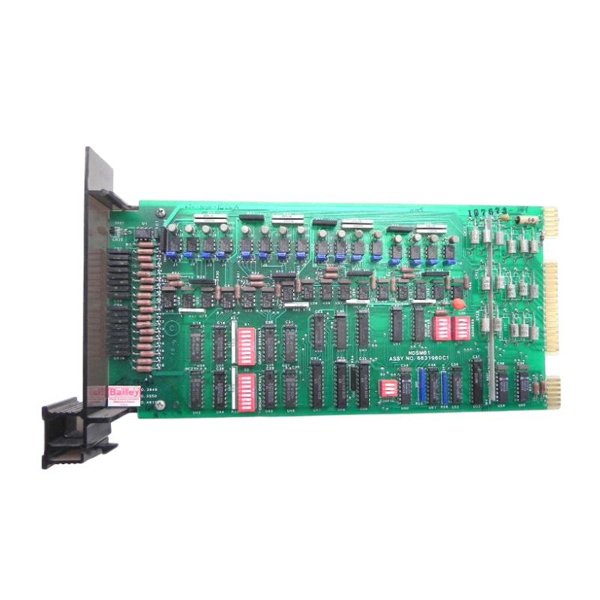

ABB Bailey NDSM01 Digital Slave Input Module

The ABB Bailey NDSM01 Digital Slave Input Module is an integral component of ABB’s INFI 90 and Symphony series Distributed Control Systems (DCS). Designed to handle digital input signals from external devices, the NDSM01 enables reliable monitoring and control in mission-critical industrial automation environments. It reads multiple digital (binary) signal inputs and communicates them to the main processing units via high-speed system buses. Its robust construction and excellent compatibility with existing INFI 90 systems make it ideal for plant upgrades and legacy system support.

Manufactured with precision and durability, the NDSM01 module ensures long-term performance in harsh industrial conditions. It supports a wide range of input devices such as limit switches, relays, and field transmitters, and is widely used in industries requiring high reliability, such as power generation, oil & gas, chemicals, and manufacturing automation.

Technical Specifications

Applications

The NDSM01 is deployed in a wide range of industrial environments, including:

• Power Generation Plants: Used to monitor switchgear status, relay contacts, and digital alarms.

• Oil & Gas Facilities: Interfaces with valve position indicators and emergency shutdown (ESD) systems.

• Chemical and Petrochemical Plants: Monitors limit switches, pressure switches, and safety devices.

• Pulp and Paper Mills: Inputs from motor control centers and field interlocks.

• Water and Wastewater Treatment Plants: Monitoring pump status and valve actuation feedback.

• Manufacturing Automation: Digital signal acquisition from safety devices and control panels.

Product Advantages

• Seamless Integration: Fully compatible with INFI 90 and Symphony Harmony series DCS architectures.

• Reliability: Designed for continuous operation in harsh industrial environments.

• Channel Isolation: Each input channel is optically isolated to reduce noise and improve signal integrity.

• Hot-Swappable: Modules can be replaced without shutting down the system, reducing downtime.

• LED Indicators: Built-in status indicators for quick diagnostics and troubleshooting.

• Field Proven: Trusted by industries worldwide for stable and secure digital input acquisition.

• Longevity: Built for long life cycles, ensuring minimal maintenance and extended use in legacy systems.

• Compact Design: Space-efficient form factor suitable for dense cabinet installations.

FAQ

1. What does the NDSM01 module do?

   It collects and transmits digital input signals from field devices to the DCS controller for monitoring and automation.

2. Can I hot-swap the NDSM01 while the system is running?

   Yes, it is designed for hot-swapping, minimizing downtime during maintenance or replacement.

3. Which control systems are compatible with the NDSM01?

   It is compatible with ABB’s INFI 90 and Symphony Harmony series DCS platforms.

4. How many input channels does the NDSM01 support?

   It supports up to 16 individually isolated digital input channels.

5. Does the NDSM01 support redundancy?

   Yes, it supports use in redundant configurations depending on system architecture.

6. What input voltage levels are accepted by the module?

   The module accepts digital input signals in the 18–30 VDC range.

7. Is the module resistant to electrical noise?

   Yes, it features optical isolation and shielding to ensure signal integrity in noisy environments.

8. What certifications does the NDSM01 carry?

   It is CE-marked and UL/CSA certified for industrial safety standards.

9. Can I mount the module on a DIN rail?

   Yes, it supports both DIN rail and panel mounting options.

10. Where can I use this module in a plant setting?

    It’s suitable for interfacing with field devices such as switches, relays, and sensors across various plant areas.
