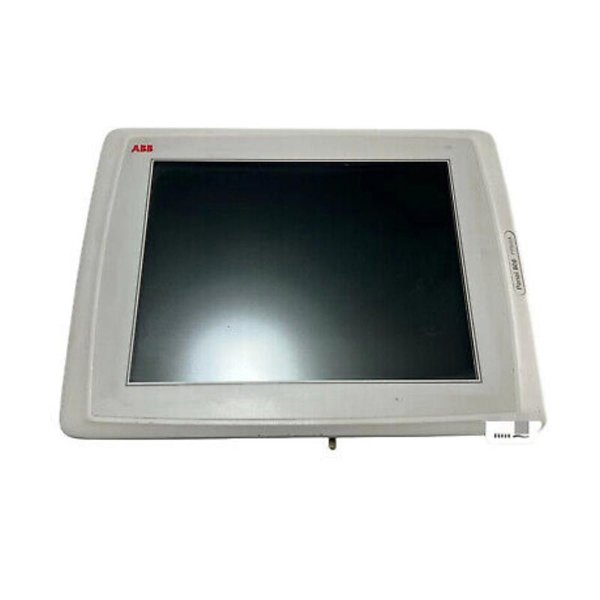

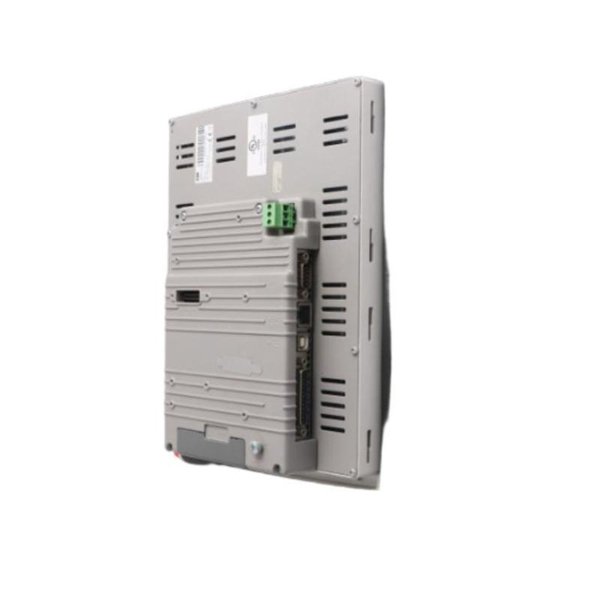

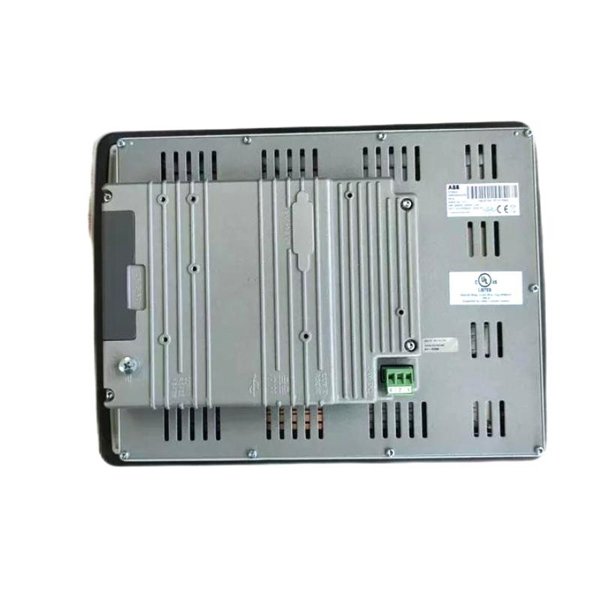

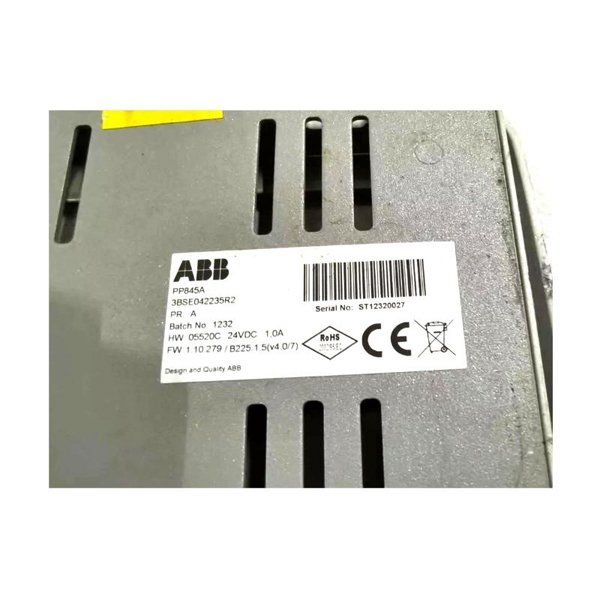

ABB PP845A 3BSE042235R2 Operation Panel

The ABB PP845A 3BSE042235R2 is an advanced Human-Machine Interface (HMI) designed to deliver seamless interaction between operators and industrial systems. This operation panel integrates user-friendly functionality with a robust design to provide reliable control and real-time monitoring of industrial machinery. Featuring a high-quality display, an intuitive touchscreen interface, and versatile connectivity options, the ABB PP845A is ideally suited for industries requiring high performance, safety, and precision.

Product Specifications

Below is a detailed table highlighting the key specifications for the ABB PP845A 3BSE042235R2 operation panel:

Product Applications

The ABB PP845A 3BSE042235R2 operation panel is versatile and can be used across a variety of industrial applications. Some of its key uses include:

• Manufacturing Lines: Essential for monitoring and controlling production processes in industries like automotive, electronics, and food & beverage.

• Energy Plants: Used for real-time data collection, system adjustments, and performance monitoring in power generation plants.

• Oil & Gas Industry: Ideal for controlling equipment and monitoring system status in oil refineries, drilling rigs, and pipelines.

• Water Treatment Plants: Crucial for tracking water quality and managing operational parameters to ensure compliance with environmental standards.

• Industrial Equipment: Provides a powerful interface to manage and monitor complex machinery in various industrial settings, improving operational efficiency and uptime.

Product Advantages

The ABB PP845A 3BSE042235R2 offers several advantages that make it a preferred choice for many industries:

1. User-Friendly Interface: The intuitive touchscreen and keypad interface enable operators to easily navigate and control systems, even with minimal training.

2. Durability: Built to withstand harsh industrial environments, this panel is resistant to dust, moisture, and extreme temperatures, ensuring long-lasting performance.

3. High Resolution: The high-resolution LCD display allows for clear and detailed visualization of system data, improving operational monitoring and control.

4. Flexible Connectivity: With Ethernet, RS232, and USB ports, the panel supports a wide range of industrial communication protocols and networks.

5. Compact Design: Despite its advanced features, the PP845A has a compact form factor, making it ideal for installations where space is limited.

6. Wide Temperature Range: The panel operates effectively within a temperature range of -10°C to +55°C, making it suitable for diverse industrial environments.

7. Energy Efficiency: With low power consumption, the panel offers a cost-effective and environmentally friendly solution for long-term use.

8. Customizable Interface: The user interface can be tailored to meet specific requirements, ensuring flexibility in various industrial applications.

9. Easy Installation: The panel is designed for panel-mount installation, which simplifies setup and integration into existing control systems.

FAQs

1. What is the operating voltage of the ABB PP845A 3BSE042235R2?

   • The operating voltage is 24 V DC.

2. What is the display resolution of this product?

   • The display resolution is 800 x 600 pixels.

3. Can the ABB PP845A be mounted on any surface?

   • No, it is specifically designed for panel mounting.

4. Is the touchscreen resistive or capacitive?

   • The touchscreen is resistive.

5. What is the operating temperature range of the panel?

   • The panel operates within a temperature range of -10°C to +55°C.

6. How many communication ports are available?

   • The panel features Ethernet, RS232, and USB communication ports.

7. What is the IP rating of the ABB PP845A?

   • The panel has an IP65 rating, ensuring it is dust-tight and resistant to water.

8. What industries is the ABB PP845A suitable for?

   • The panel is suitable for industries such as manufacturing, energy, oil & gas, water treatment, and general industrial equipment.

9. What storage capacity does the panel offer?

   • The panel offers 64 MB of flash storage.

10. Is the ABB PP845A energy-efficient?

    • Yes, the panel is designed to consume minimal power, making it energy-efficient.
