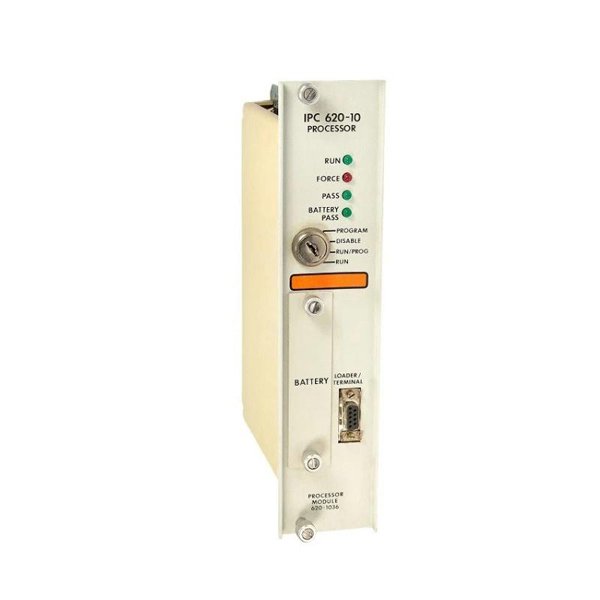

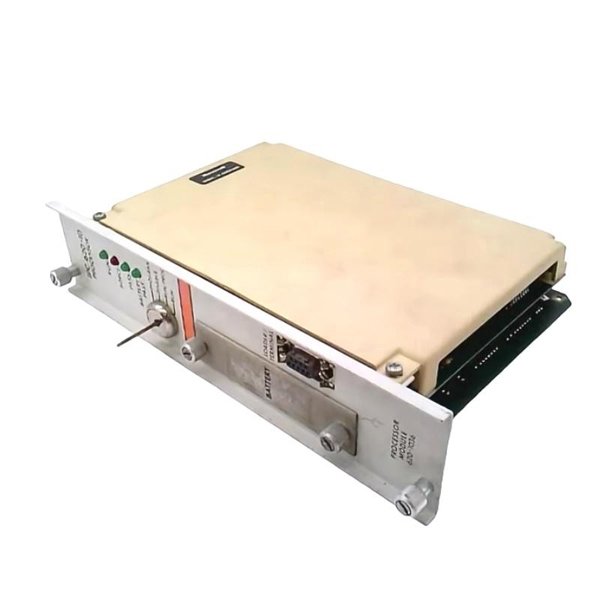

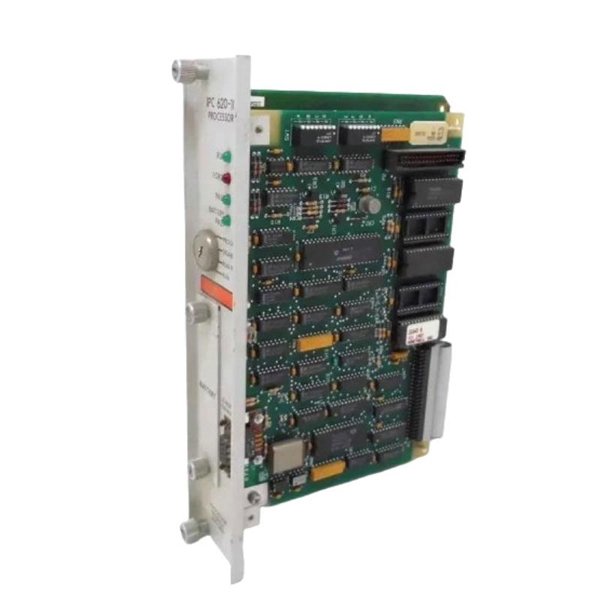

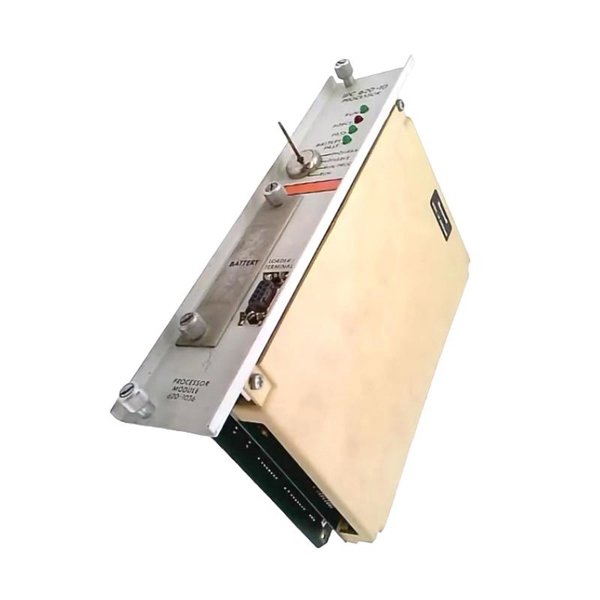

Honeywell 620-1036 Processor Module

The Honeywell 620-1036 Processor Module is a high-performance central processing unit designed for Honeywell IPC series distributed control systems. Serving as the primary computational engine, it executes control algorithms, manages real-time data acquisition, interfaces with I/O modules, and coordinates communication with other system modules.

Optimized for industrial automation applications, the 620-1036 provides deterministic control and high-speed processing capabilities. It ensures accurate execution of control strategies in chemical plants, power generation facilities, oil & gas operations, and other process industries. The module integrates seamlessly into Honeywell’s modular rack system, supporting scalability and system expansion while maintaining reliability and operational safety.

Product Parameters

Product Applications

The 620-1036 Processor Module is widely used in:

• Process Control Systems – Supervising I/O operations, control logic, and process management.

• Batch Manufacturing – Managing sequential and timed operations with precise control.

• Energy and Utilities – Water treatment, power distribution, and wastewater management.

• Oil & Gas – Supervising wellhead operations, pipelines, and processing facilities.

• Data Acquisition – Collecting and processing data from distributed sensors for monitoring and analysis.

• SCADA Integration – Serving as the core computing engine in supervisory control systems.

Product Advantages

• High Reliability – Industrial-grade CPU ensures stable operation in critical environments.

• Deterministic Real-Time Processing – Fast and precise execution of control algorithms.

• Flexible Communication Options – Supports ASCII serial and network interfaces for external device integration.

• Scalable System Architecture – Compatible with Honeywell IPC I/O, communication, and simulation modules.

• Built-in Diagnostics – Monitors system performance and provides fault reporting for preventive maintenance.

• Seamless Integration – Directly compatible with IPC series racks, simplifying installation and expansion.

FAQ

1. What is the primary function of the 620-1036 module?

   It acts as the central processor, executing control logic and managing I/O operations.

2. What type of CPU does the module use?

   An industrial-grade microprocessor optimized for real-time process control.

3. How does it communicate with I/O modules?

   Through the internal backplane bus of the IPC rack.

4. Does the module support serial ASCII communication?

   Yes, it has serial ports for ASCII-based data exchange.

5. Can the module perform multitasking?

   Yes, it supports multiple simultaneous control and monitoring tasks.

6. Is the module hot-swappable?

   No, it should be powered down before installation or removal.

7. Does it provide fault diagnostics?

   Yes, it can detect system and I/O faults for troubleshooting.

8. What are the environmental operating limits?

   0°C to 60°C temperature and 5% to 95% relative humidity.

9. How much memory is available for control programs?

   Memory includes on-board RAM and firmware storage sufficient for typical IPC applications.

10. Is it compatible with other Honeywell IPC series modules?

    Yes, it integrates fully with I/O, communication, and simulation modules.
