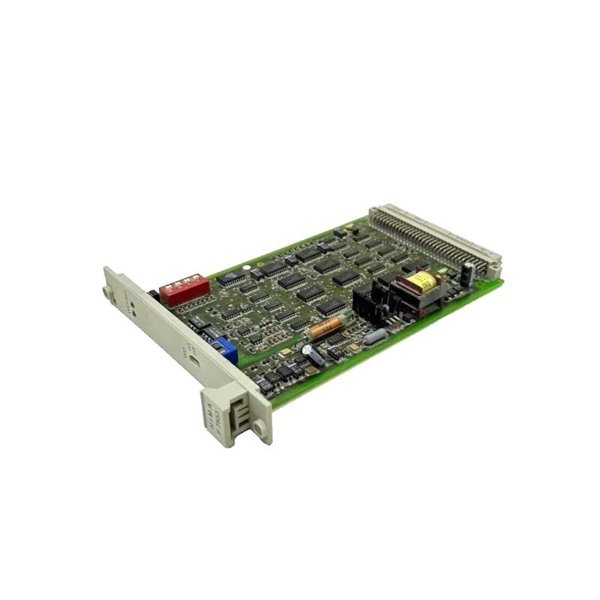

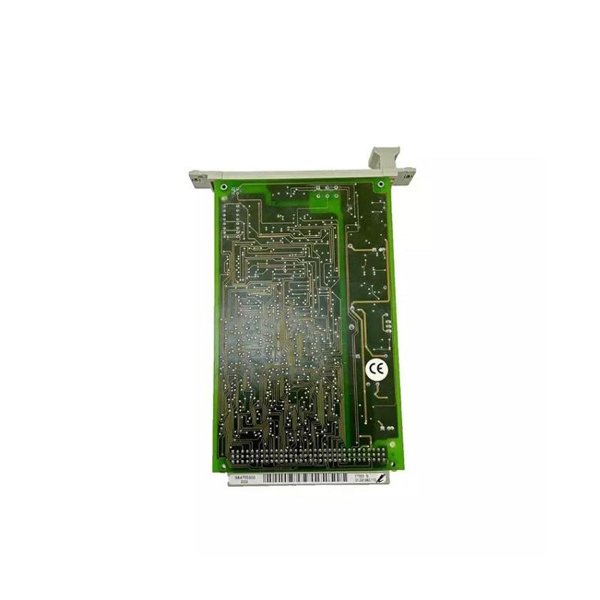

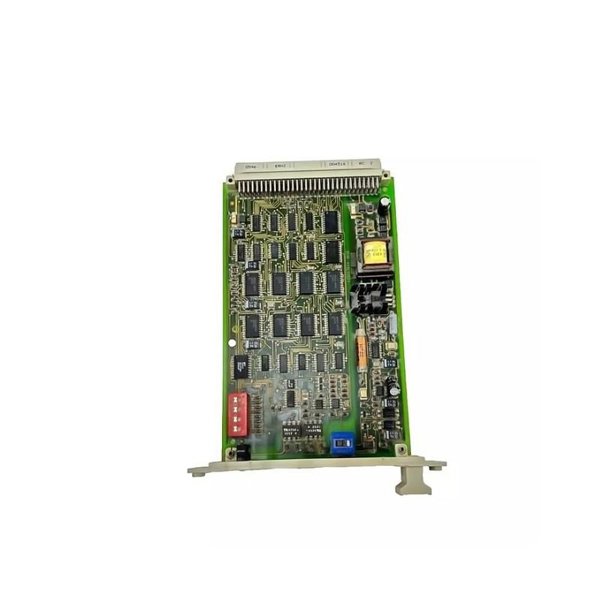

Hima F7553 Coupling Module

The HIMA F7553 Coupling Module is a vital interface component within HIMA’s safety automation systems, designed to reliably interconnect safety I/O modules with the main processing units. It acts as a high-integrity coupling bridge that ensures fast, secure, and fault-tolerant communication across the safety bus. The F7553 is engineered to support both centralized and decentralized architectures, making it adaptable to complex industrial safety systems where dependability and real-time operation are crucial.

Built to withstand harsh industrial environments, the F7553 module delivers exceptional performance in process automation and safety-related control. It integrates seamlessly with HIMA’s HIMax and HIQuad X platforms, facilitating modular expansion and providing comprehensive diagnostics to reduce maintenance efforts and increase operational uptime.

Product Specifications

Product Applications

The F7553 Coupling Module is primarily used in safety-critical automation environments where communication integrity and system reliability are paramount. Typical application areas include:

• Oil & Gas Industry

  Ensures safe data transmission between distributed I/O racks and safety controllers in refinery and pipeline control systems.

• Chemical and Petrochemical Plants

  Facilitates modular, redundant safety bus communication to protect personnel and equipment from hazardous incidents.

• Power Plants

  Supports safety-related control functions for turbine control, emergency shutdown, and boiler safety systems.

• Pharmaceutical Manufacturing

  Allows for safe automation of batch processes by securely connecting field devices to central safety logic.

• Transportation Systems

  Used in railway and mass transit signaling to maintain high safety standards in operational communication.

Product Advantages

• Robust Safety Communication

  Provides reliable, high-speed data coupling with built-in fault detection, ensuring safe and uninterrupted communication.

• Certified for SIL 3 Applications

  Complies with the highest safety integrity standards, ideal for the most demanding industrial safety environments.

• Modular and Compact Design

  Slim form factor for easy DIN rail mounting, supporting scalable system architectures.

• Wide Operating Range

  Capable of operating reliably across a broad temperature range and in challenging environmental conditions.

• Integrated Diagnostics

  Includes status LEDs and fault indicators that simplify troubleshooting and maintenance.

• Flexible Integration

  Compatible with multiple HIMA safety platforms, enabling easy upgrades and system expansions.

Frequently Asked Questions (FAQ)

1. Q: What role does the F7553 play in a HIMA safety system?

   A: It acts as a coupling bridge between safety I/O modules and the central processor, enabling reliable data exchange on the safety bus.

2. Q: Can the F7553 be used in redundant system configurations?

   A: Yes, it supports redundant architectures to ensure continuous operation during hardware failures.

3. Q: Is the F7553 module hot-swappable?

   A: Yes, it can be replaced without shutting down the system in platforms that support hot-swapping, such as HIMax.

4. Q: What indicators are available to monitor the module’s status?

   A: The module has integrated LEDs that show operating status and fault conditions for quick diagnostics.

5. Q: What maintenance does the F7553 require?

   A: It is designed to be maintenance-free, though periodic inspections and diagnostic checks are recommended.

6. Q: How does the module handle power supply variations?

   A: The F7553 operates on a stable 24 V DC supply and includes protections against minor voltage fluctuations.

7. Q: Can the F7553 interface with legacy HIMA systems?

   A: It is optimized for HIMax and HIQuad X systems; compatibility with older systems should be verified case by case.

8. Q: What are the environmental requirements for installing the F7553?

   A: It should be installed in environments within the specified temperature and humidity ranges, mounted securely on DIN rails.

9. Q: What happens if the F7553 detects a fault?

   A: It signals the fault via LEDs and the safety system triggers safe-state procedures to prevent hazardous situations.

10. Q: Is the F7553 certified for use in explosive atmospheres?

    A: Yes, it is ATEX certified for Zone 2/22 hazardous area installations when housed appropriately.
