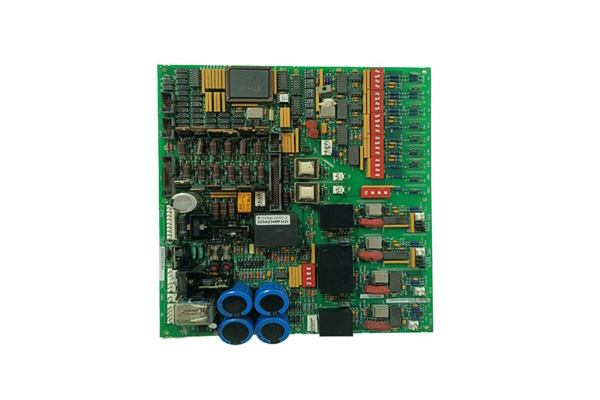

General Electric DS200DCFBG1BNC Digital Controller Module
Module Number:DS200DCFBG1BNC
Product status:Discontinued
Delivery time:In stock
Product status:100% new
Sales country:All over the world
Product situation:one year warranty
Product Description
GE DS200DCFBG1BNC is a digital controller module or power board produced by General Electric (GE), with specific characteristics and uses as follows:
Features and Applications
Digital controller module: DS200DCFBG1BNC, as a digital controller module, is mainly used in industrial control systems to execute various control logics and algorithms, and control the operation of industrial processes or equipment.
Excitation controller: In some applications, it serves as an excitation controller to control the electromagnetic excitation system in the generator set, thereby regulating the voltage and current output values of the generator.
Features and characteristics
Communication interface: It may have multiple communication interfaces, such as Ethernet interface, serial interface, etc., used for data exchange and communication with other devices or systems.
Input/Output: Modules typically have multiple digital input and output channels for receiving external signals and controlling external devices.
Data processing: supports data processing and calculation functions, can process and analyze input signals, and generate corresponding control output signals.
Modular design: Adopting modular design, it is convenient for installation, maintenance, and replacement. Users can choose and configure corresponding modules according to their needs.
High reliability and stability: designed for industrial environments, with high reliability and stability, suitable for long-term operation and various working conditions.
Security: It may have security functions such as fault detection, data encryption, etc., to protect the security and stability of the control system.
Programmability: The module may support programming functions, and users can write control logic and algorithms as needed to achieve specific control functions.
Power board related information
DS200DCFBG1BNC is also a power board manufactured for General Electric’s Mark V series replacement and optional boards.
As part of the Speedtronic Mark V control system, the system control level power supply and chassis fan are powered by this card.
This card is compatible with many General Electric brand exciters and drives and can be installed in various systems, such as FC2000, AC2000, DC2000, ME2000, and CB2000 series drives.
The voltage fed into the circuit board can be safely between 38 and 115 VAC.
Circuit and monitoring
DS200DCFBG1BNC consists of five circuits around the circuit board, including driver circuit, control level power circuit, motor field power circuit, and AC and DC monitoring circuit.
The fuses on the circuit board are protected, and the integrated LED and neon indicator lights will alert users to any fuse issues.
Monitoring voltage levels is important and can be achieved using one of the five test points on the card.
