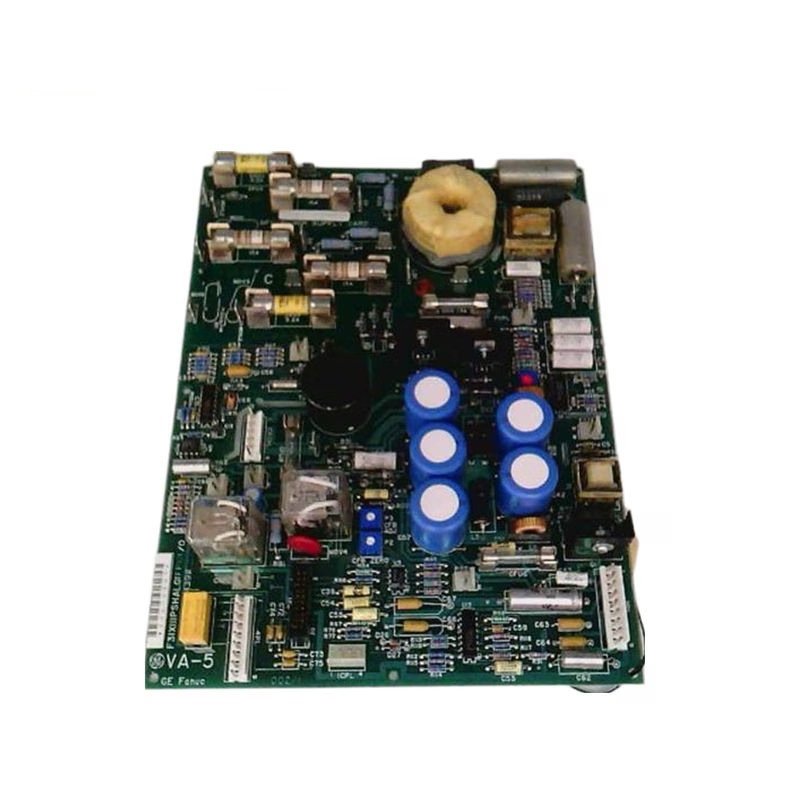

The 531X111PSHAPG3 is a power supply card designed for use in the Speedtronic / Mark V control systems. This terminal board relay card plays a key role in providing the necessary 5 V dc, 15 V dc, and 24 V dc currents to the drive. Additionally, it includes a pulse transformer that supports motor field control circuitry, ensuring smooth motor operation.

Technical Specifications

• Part Number: 531X111PSHAPG3
• Category: Power Supplies
• Subcategory: Power Supply
• Weight: 1.91 lbs
• Voltage Outputs:
  • 5 V dc
  • 15 V dc
  • 24 V dc
• Functions:
  • Motor field control
  • Pulse transformer for motor circuitry
• Compatibility: Works with Speedtronic / Mark V system
• Status: Discontinued by Manufacturer
• Description: MCF / Power Supply Card for motor field control
