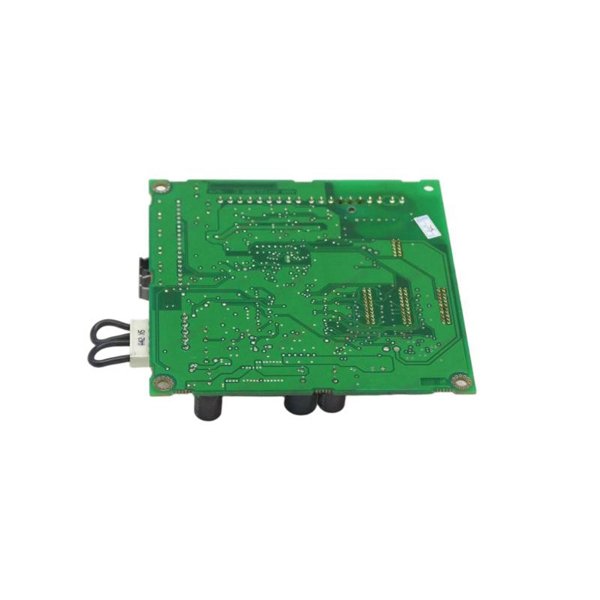

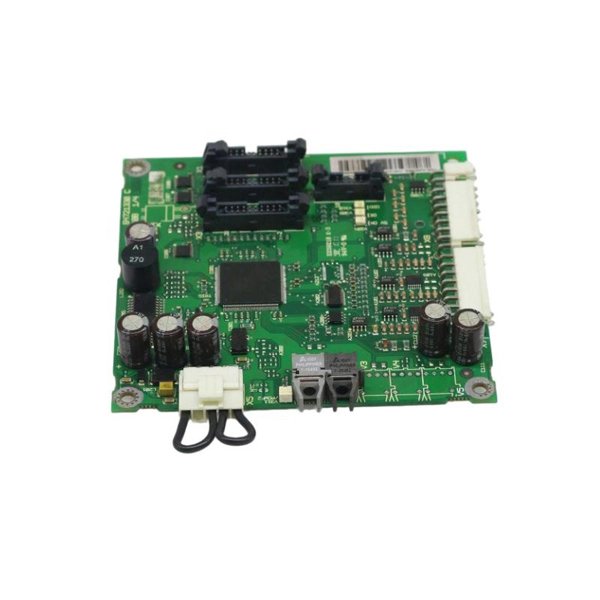

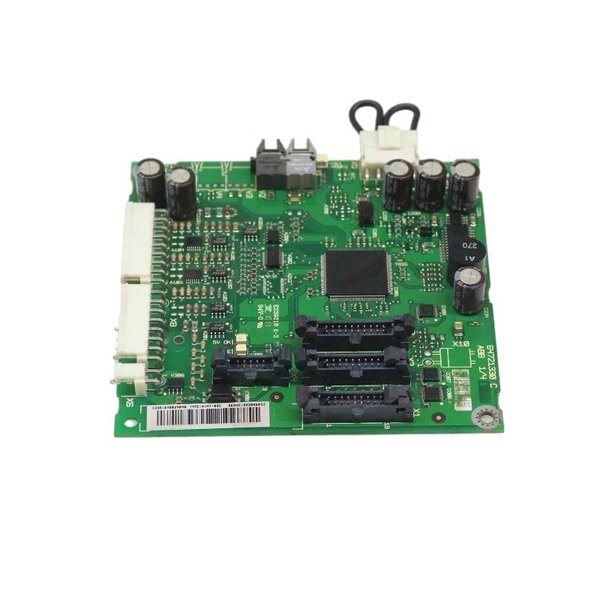

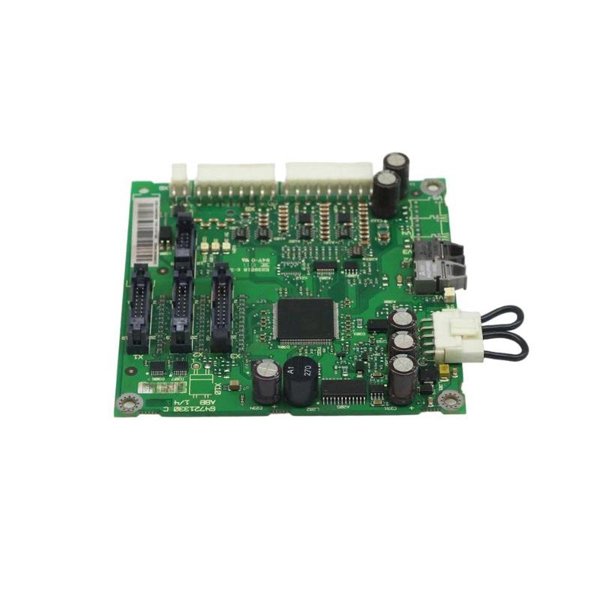

ABB AINT-02C 64802989 SP Suite Main Interface

The ABB AINT-02C 64802989 SP Suite Main Interface is a specialized industrial communication module developed for robust integration within ABB’s SP suite of automation systems. Designed to act as the primary interfacing hub between field-level equipment and higher-level control logic, this module enables accurate and high-speed signal transmission across diverse industrial environments.

Built with an emphasis on operational reliability, the AINT-02C seamlessly handles digital and analog I/O signals, offering excellent electromagnetic compatibility (EMC), rugged enclosure design, and low power consumption. Its compact form factor makes it ideal for installations where space is at a premium, while its solid performance ensures minimal downtime and maximum system availability.

With its straightforward connectivity and ABB-standard communication interfaces, the AINT-02C offers long-term operational stability and compatibility across various sectors including power generation, process industries, discrete manufacturing, and more.

Product Specifications

Product Applications

The AINT-02C is built to perform consistently in high-demand industrial automation environments. It plays a central role in enabling effective signal interfacing and system coordination. The main application areas include:

• Power Generation & Distribution

  Facilitates monitoring and control of circuit breakers, transformers, and load centers.

• Chemical and Petrochemical Plants

  Enables real-time data acquisition and transfer from process instrumentation.

• Water and Wastewater Treatment

  Acts as the communication bridge for pumps, flow meters, and PLC controllers.

• Factory Automation

  Used in production lines for collecting sensor data and triggering actuator responses.

• HVAC and Building Automation

  Interfaces with temperature sensors, air quality modules, and building management systems.

• Metallurgy and Mining Operations

  Handles field data input and system command outputs in rugged and remote operations.

Product Advantages

The AINT-02C 64802989 delivers tangible benefits in terms of system integration, long-term durability, and maintenance efficiency. Key advantages include:

• Compact and Lightweight Design

  With a size of 140 x 110 x 30 mm and weight of only 0.1 kg, it is easy to install in dense panel configurations.

• Industrial-Grade Reliability

  Withstand harsh environments, including electrical interference, temperature extremes, and vibration.

• Universal Protocol Support

  Modbus TCP/IP ensures compatibility with a wide range of existing industrial control systems.

• Fast Installation

  Preconfigured connectors and DIN rail mounting simplify setup and reduce downtime during commissioning.

• Multi-Type Signal Processing

  Supports both analog and digital inputs and outputs, reducing the need for additional interface modules.

• Diagnostic Capability

  Built-in LED indicators allow real-time status monitoring and fault detection.

• Low Power Operation

  Efficient internal architecture results in low heat generation and reduced energy costs.

• Global Compliance

  Certified for CE, UL, and RoHS—meeting international safety and environmental standards.

• Reduced Maintenance Overhead

  Minimal moving parts and robust construction ensure a long service life with less need for intervention.

• Scalable Integration

  Easily expandable within the SP suite architecture as part of modular automation designs.

Frequently Asked Questions (FAQ)

1. What is the function of the AINT-02C 64802989 module?

   It serves as the primary communication interface between field devices and the SP suite control systems.

2. What is the size and weight of this module?

   The dimensions are 140 x 110 x 30 mm, and it weighs approximately 0.1 kg.

3. Which communication protocol is supported?

   It uses Modbus TCP/IP for high-speed and reliable data communication.

4. Can it handle both analog and digital signals?

   Yes, it supports both signal types, making it highly flexible for diverse applications.

5. Is this module suitable for high-temperature environments?

   It can operate within a wide temperature range from -40°C to +70°C.

6. How is the module mounted?

   It is designed for DIN rail mounting (35 mm standard).

7. Does it have built-in diagnostic indicators?

   Yes, LED indicators provide real-time feedback on power, communication, and signal status.

8. Can this module be used in outdoor installations?

   It is IP20 rated, so it requires enclosure protection for outdoor or dusty environments.

9. Is additional software required for setup?

   Configuration may require standard ABB engineering tools or integration with an HMI system.

10. What industries commonly use the AINT-02C?

    Power, water treatment, chemical processing, manufacturing, and building automation.
