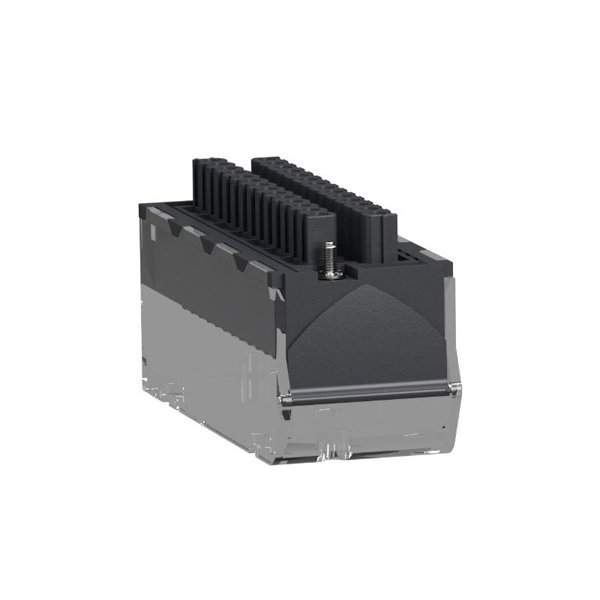

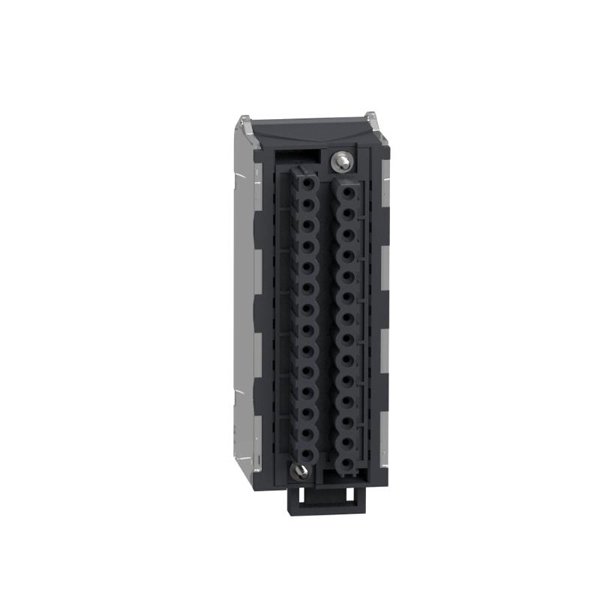

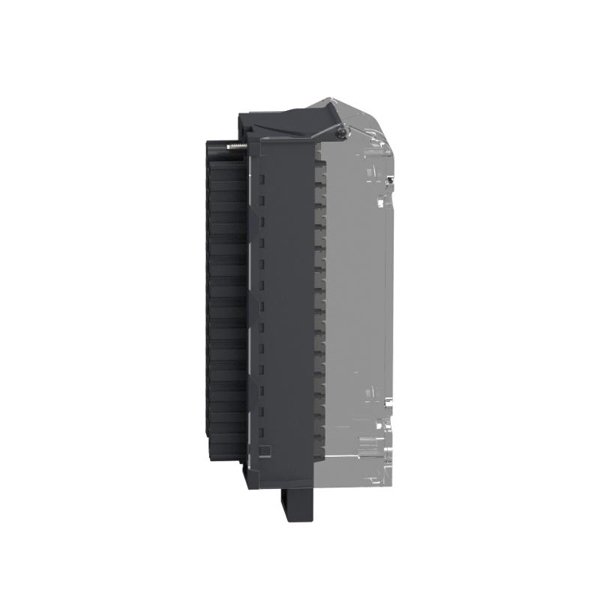

Schneider BMXFTB2820 28-pin Removable Spring Clamp Terminal Block

The Schneider Electric BMXFTB2820 is a 28-pin removable spring clamp terminal block designed for seamless integration with the Modicon X80 automation platform. It facilitates secure and efficient connections for various industrial control applications, ensuring reliability and ease of maintenance. Its robust construction and compliance with international standards make it a preferred choice for professionals seeking dependable terminal block solutions.​

Product Specifications

Product Applications

The BMXFTB2820 terminal block is utilized in various industrial settings, including:​

1. Manufacturing Plants: Facilitates connections between sensors, actuators, and control systems, ensuring efficient production processes.​

2. Energy Sector: Supports power distribution and monitoring systems by providing reliable terminal connections.​

3. Water Treatment Facilities: Enables secure wiring for control systems managing water purification and distribution.​

4. Automotive Industry: Assists in connecting various control modules and devices on assembly lines.​

5. Food and Beverage Industry: Ensures hygienic and reliable connections in processing and packaging equipment.​

Product Advantages

1. Ease of Installation: The removable spring clamp design allows for quick and secure wire connections without the need for specialized tools.​

2. Reliable Performance: Designed to maintain stable connections even in environments with vibrations and temperature variations.​

3. Compact Design: Its streamlined form factor allows for efficient use of space within control panels.​

4. Compliance with Standards: Adheres to CE and RoHS standards, ensuring safety and environmental responsibility.​

5. Compatibility: Specifically designed for seamless integration with the Modicon X80 series, ensuring system coherence.​

Frequently Asked Questions (FAQ)

1. What is the primary function of the BMXFTB2820 terminal block?

   • It serves as a 28-pin removable spring clamp terminal block for connecting wires within the Modicon X80 automation platform.​

2. Which wire sizes are compatible with this terminal block?

   • It accommodates wire sizes ranging from 0.34 mm² to 1 mm².​

3. Is the BMXFTB2820 compatible with other Schneider Electric products?

   • Yes, it is specifically designed for use with modules that have a 28-pin removable terminal block within the Modicon X80 series.​

4. What materials are used in the construction of this terminal block?

   • It is made from high-quality plastic and metal components to ensure durability and reliability.​

5. Does the terminal block comply with environmental standards?

   • Yes, it is RoHS compliant, indicating adherence to environmental regulations regarding hazardous substances.​

6. What are the operating temperature limits for the BMXFTB2820?

   • It operates effectively within a temperature range of -20°C to +55°C.​

7. Is the terminal block easy to install and remove?

   • Yes, its spring clamp design allows for quick and secure connections without the need for specialized tools.​

8. Can this terminal block be used in environments with high humidity?

   • Yes, it operates within a humidity range of 30% to 95% RH (non-condensing).​

9. What is the weight of the BMXFTB2820?

   • The terminal block weighs 0.07 kg.​

10. Where is the BMXFTB2820 manufactured?

    • It is manufactured in France.
