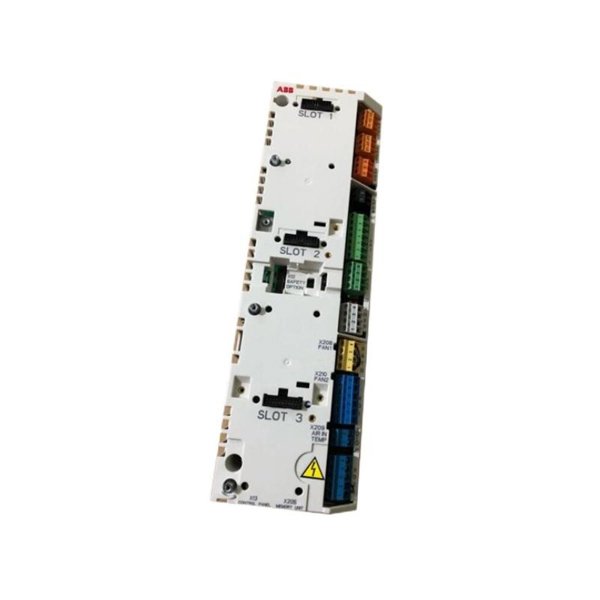

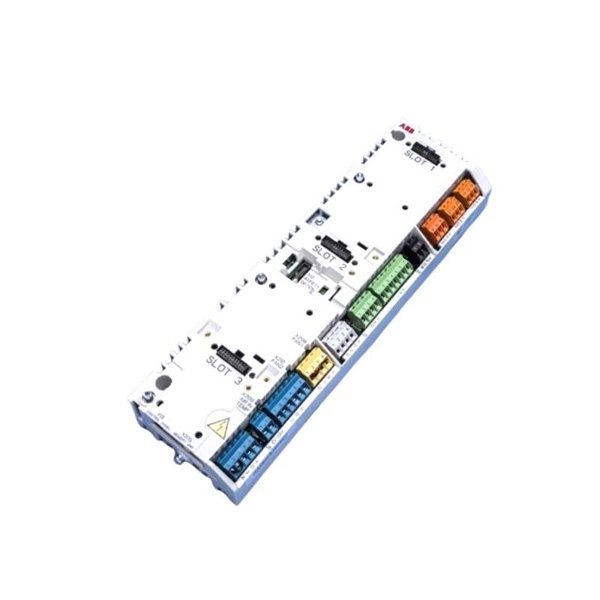

ABB ZCU-14 3AXD50000005164 Control Unit

The ABB ZCU-14 Control Unit is a high-performance control device designed to deliver robust and reliable automation solutions for industrial environments. As part of ABB’s cutting-edge control unit series, the ZCU-14 is engineered to meet the increasing demands of process automation, offering advanced communication protocols, real-time processing, and flexible I/O options. With a compact yet powerful design, it is ideal for managing complex control tasks in industries such as manufacturing, process control, energy management, and automation systems integration.

This unit is a versatile control solution for controlling machinery, processes, and robotic systems. The ZCU-14 offers an intuitive user interface and advanced functionality for system integration, making it a go-to solution for both small and large-scale industrial applications.

Product Parameters

The following table highlights the key specifications of the ABB ZCU-14 Control Unit:

Product Applications

The ABB ZCU-14 Control Unit is suitable for a wide array of industrial applications due to its flexible design and advanced capabilities. Some of its main applications include:

1. Manufacturing Automation: The ZCU-14 plays a crucial role in controlling complex manufacturing systems, ensuring high productivity and minimal downtime.

2. Process Control: It is extensively used in industries like chemical processing, petrochemical, food and beverage, and water treatment to monitor and regulate critical parameters such as pressure, flow, and temperature.

3. Building Automation: The unit can be integrated into building management systems, controlling aspects like HVAC systems, lighting, and energy management.

4. Energy Management: Used for efficient monitoring and control of energy consumption in power grids, smart grids, and renewable energy plants.

5. Robotics: The ZCU-14 helps in controlling robotic arms and automated systems for assembly, packaging, and material handling tasks.

6. Industrial Networks: It can be integrated with larger control systems to ensure seamless operation and management of distributed assets across large industrial sites.

Product Advantages

1. High Performance: The ZCU-14’s powerful 1 GHz CPU ensures fast processing speeds and smooth operation, even in high-demand automation environments.

2. Scalability: Its modular design and support for a wide range of I/O configurations make the ZCU-14 highly scalable, catering to both small and large systems.

3. Reliability: Designed for harsh industrial environments, the ZCU-14 operates reliably across a broad temperature range from -20°C to +70°C.

4. Advanced Communication: With multiple communication ports, including Ethernet and RS protocols, the ZCU-14 facilitates easy integration with other control systems and devices.

5. Enhanced Memory and Storage: The unit’s 2 GB of RAM and 16 GB of flash storage offer ample resources for handling data-heavy tasks and storing critical configurations.

6. Energy Efficiency: The ZCU-14 is designed with low power consumption in mind, contributing to energy savings in large automation systems.

7. User-Friendly Interface: The intuitive user interface allows for easy programming and system monitoring, making it accessible even to non-expert operators.

8. Wide Operating Range: With a temperature range of -20°C to +70°C and resistance to high humidity, the ZCU-14 can be used in a variety of industrial settings, from hot factories to damp environments.

FAQ

1. What industries can benefit from using the ABB ZCU-14 Control Unit?

   • The ZCU-14 is suitable for industries such as manufacturing, energy management, process control, robotics, and building automation.

2. What is the power supply requirement for the ZCU-14?

   • The ZCU-14 requires a 24V DC power supply, with a voltage range between 20.4V to 28.8V.

3. How much RAM does the ZCU-14 have?

   • The ZCU-14 is equipped with 2 GB of RAM for fast data processing.

4. What is the storage capacity of the ZCU-14?

   • The ZCU-14 comes with 16 GB of flash storage for storing configuration files and operating data.

5. What communication protocols does the ZCU-14 support?

   • It supports Ethernet, RS-232, and RS-485 communication protocols, ensuring compatibility with various systems.

6. Can the ZCU-14 operate in high-temperature environments?

   • Yes, it is designed to operate in environments with temperatures ranging from -20°C to +70°C.

7. What is the weight of the ZCU-14?

   • The ZCU-14 weighs 0.8 kg.

8. Is the ZCU-14 suitable for use in humid environments?

   • Yes, it can operate in environments with humidity levels from 5% to 95% (non-condensing).

9. What are the dimensions of the ZCU-14?

   • The dimensions are 230 x 120 x 40 mm.

10. How can I integrate the ZCU-14 with other ABB products?

    • The ZCU-14 offers easy integration with other ABB products using its extensive communication capabilities, including Ethernet and serial ports.
