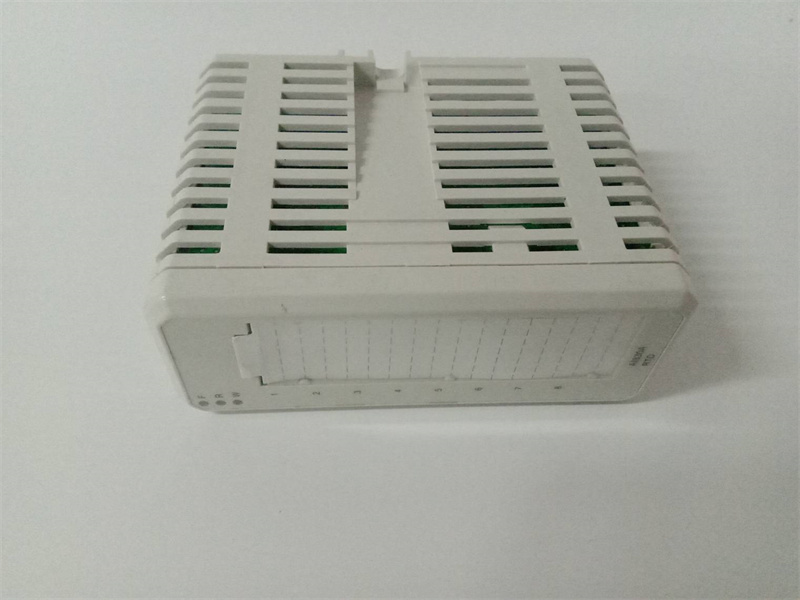

ABB AI830A Product Details

ABB AI830A module is mainly used to convert analog signals into digital signals and transmit them to the control system for processing.It can monitor physical quantities such as temperature,pressure,flow,and transmit these data to the controller for analysis and control,thereby realizing real-time monitoring and adjustment of the production process.

Main Features

Multi-channel design:AI830A modules usually have multiple analog input channels,each of which can receive an analog signal.This enables the module to process multiple different types of signals at the same time,improving the flexibility and efficiency of the system.

Signal type support is wide:The module supports a variety of signal types,such as voltage,current,resistance(RTD),etc.This wide range of signal support enables AI830A to adapt to the needs of various industrial application scenarios.

High precision and high-speed sampling rate:The AI830A module has high precision and high-speed sampling rate,which can ensure the accuracy and real-time performance of data acquisition.This is especially important for applications that require fast response and precise control.

Strong anti-interference ability:The module has strong anti-interference ability and can operate stably under harsh industrial environment conditions.This ensures the reliability of data acquisition and transmission,and reduces errors and failures caused by environmental interference.

High protection level:The AI830A module usually has a good protection level,such as IP65,which can effectively prevent the intrusion of dust and water vapor,further improving its adaptability in harsh environments.

Flexible configuration and expansion:The module supports flexible configuration and expansion,and can be customized according to the needs of different application scenarios.This not only improves the compatibility of the system,but also reduces the cost of maintenance and upgrades.

Application fields

ABB AI830A analog input modules are widely used in industrial automation control systems,including but not limited to the following fields

Chemical industry:used to monitor key parameters such as reactor temperature,pressure and liquid level to ensure production safety and product quality.

Power industry:In power plants and substations,AI830A modules can be used to monitor equipment operating status and power parameters to improve the operating efficiency and stability of power systems.

Pharmaceutical industry:used in the pharmaceutical production process to accurately monitor parameters such as temperature,humidity,and pressure to ensure the compliance and consistency of drug production.

Manufacturing:In automated production lines,the AI830A module can monitor equipment operating status and product quality in real time,improving production efficiency and product qualification rate.

Technical Specifications(Reference)

As specific technical specifications may vary depending on product versions and production batches,the information provided below is for reference only

Model:AI830A(3BSE040662R1)

Number of channels:Depends on the specific model,such as the RTD input module has 8 channels

Resolution:High resolution,such as 14-bit resolution,to ensure accurate measurement of the value of the analog signal

Working range:The specified working range,that is,the acceptable range of analog signals,to ensure that the signal is within the valid range

Communication interface:Usually has a communication interface to transmit analog signals to the control system or other equipment

Timing sampling:Sample the analog signal at a set time interval and transmit the data to the control system for processing
