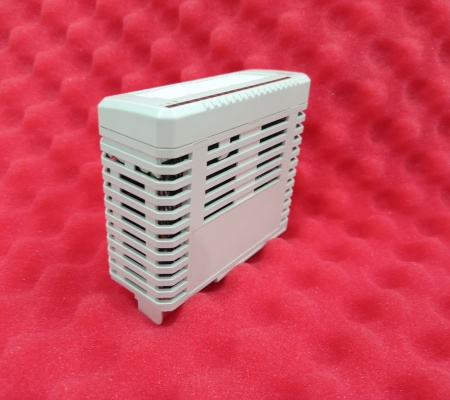

The AI830/AI830A RTD Input Module has 8 channels for measurement of temperature with resistive elements (RTDs). With 3-wire connections. All the RTDs must be isolated from ground.The AI830/AI830A can be used with Pt100, Cu10, Ni100, Ni120 or resistive sensors. Linearization and conversion of the temperature to Centigrade or Fahrenheit is performed on the module.Every channel can be individually configured. The MainsFreq parameter is used to set mains frequency filter cycle time. This will give a notch filter at the frequency specified (50 Hz or 60 Hz).

ABB AI830A is an analog input module in the ABB Advant 800xA system. It is mainly used for the measurement of thermal resistance temperature sensors (RTDs) and the acquisition and conversion of related analog signals. Common product models are 3BSE040662R1, 3BSE040662R2.It has 8 channels and can connect thermal resistance temperature sensors such as Pt100, Cu10, Ni100, Ni120, etc. It uses a 3-wire connection, and all RTDs must be isolated from the ground.

Detailed data

Error depends on field cable resistance: Rerr = R* (0.005 + ∆R/100) Terr°C = Rerr / (R0 * TCR) Terr°F = Terr°C * 1.8

Temperature drift See table in S800 modules and terminal units 3BSE020924-xxx

Update period 150 + 95 * (number of active channels) ms

CMRR, 50Hz, 60Hz >120 dB (10Ω load)

NMRR, 50Hz, 60Hz >60 dB

Rated insulation voltage 50 V

Dielectric test voltage 500 V AC

Power consumption 1.6 W

Current consumption +5 V Modulebus 70 mA

Current consumption +24 V Modulebus 50 mA

Current consumption +24 V external 0

Frequently asked questions about the product are as follows:

-What type of module is ABB AI830A?

ABB AI830A is an analog input module, mainly used for the measurement of thermal resistance temperature sensors (RTD) and the acquisition and conversion of related analog signals

-How many input channels does AI830A have?

It has 8 channels and can connect thermal resistance temperature sensors such as Pt100, Cu10, Ni100, Ni120, etc. It uses a 3-wire connection, and all RTDs must be isolated from the ground.

-What unique features does AI830A have in temperature measurement?

The linearization and conversion of temperature to Celsius or Fahrenheit are both performed on the module, which is convenient for users to directly obtain the required temperature unit. Each channel can be configured separately to meet the needs of different application scenarios.
