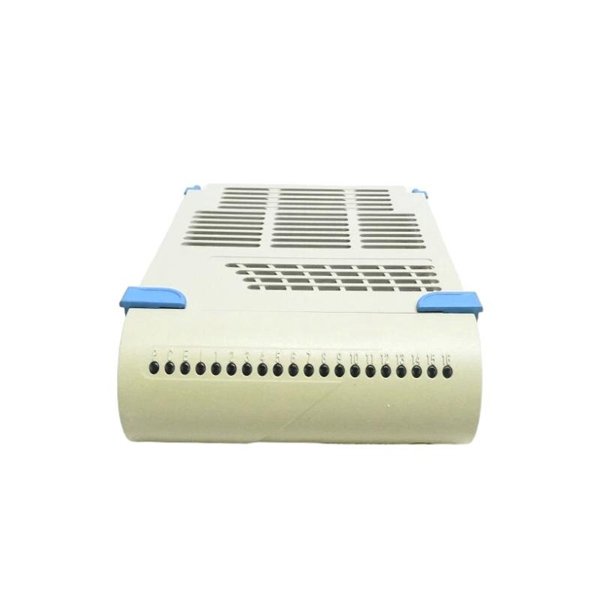

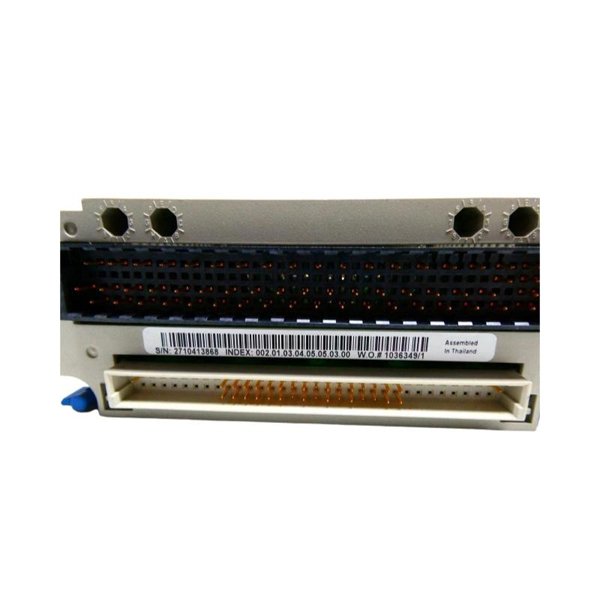

Ovation 1C31129G01 Analog Output Module

The Ovation 1C31129G01 Analog Output Module is a highly reliable and precise component designed for use in Emerson Ovation Distributed Control Systems (DCS). It is engineered to provide analog output signals that interface with field devices such as control valves, dampers, actuators, and other process equipment in various industrial automation settings.

Capable of generating accurate analog outputs — typically 4–20 mA signals — the module allows the Ovation DCS to exert fine control over critical process variables such as flow, temperature, pressure, and chemical dosing. The 1C31129G01 delivers excellent signal integrity, wide operational temperature range, and robust construction, making it suitable for harsh industrial environments.

As part of the Ovation control architecture, this analog output module integrates seamlessly with other I/O components, CPUs, and networked systems, contributing to the overall reliability, flexibility, and performance of the plant’s automation platform.

Product Specifications

Applications

The Ovation 1C31129G01 Analog Output Module is widely used in a range of industries where precise control of analog signals is essential for maintaining process quality and safety:

• Power Generation

  Steam turbine control, boiler management, balance-of-plant applications.

• Water & Wastewater Treatment

  Flow control, chemical dosing, and level regulation.

• Oil & Gas

  Upstream and downstream automation, pipeline control, separator systems.

• Chemical Processing

  Precise control of temperature, pressure, and chemical flows.

• Pulp & Paper

  Process optimization and machine control.

• Metals & Mining

  Actuator control for smelters, refining, and extraction systems.

• Pharmaceuticals

  Accurate process control in manufacturing and clean-room environments.

Product Advantages

• High Precision Output

  12-bit resolution with ±0.1% accuracy ensures fine control of process variables.

• Reliable Isolation

  Channel-to-channel and channel-to-ground isolation protects against signal interference and ground loops.

• Built-in Diagnostics

  Real-time fault detection enhances system safety and simplifies troubleshooting.

• Seamless Ovation Integration

  Native compatibility with Emerson Ovation DCS reduces engineering and commissioning time.

• Redundancy Ready

  Supports deployment in redundant I/O configurations for high availability systems.

• Wide Operating Range

  Suitable for harsh environments with -20 °C to +60 °C operational range.

• Low Maintenance

  Factory-calibrated and designed for long operational life with minimal servicing.

• Flexible Installation

  Easily mounted on DIN-rails or installed in Ovation I/O chassis.

• Certified & Compliant

  Meets international industrial standards (UL, CSA, CE), ensuring safe operation.

• Field Proven

  Deployed globally across thousands of critical applications.

Frequently Asked Questions (FAQ)

1. What is the output range of the 1C31129G01 Analog Output Module?

   The module provides 4–20 mA analog outputs on each of its 8 channels.

2. Can the module be used in redundant systems?

   Yes, it supports full I/O redundancy when configured within an Ovation DCS.

3. What is the resolution of the output signal?

   It features 12-bit resolution for precise control.

4. Is the module factory calibrated?

   Yes, it is factory calibrated but can also be field-adjusted if needed.

5. What types of field devices can be controlled?

   It controls a wide variety of actuators, valves, dampers, and other analog-driven field devices.

6. Does it support diagnostic features?

   Yes, the module has built-in diagnostics to detect faults and signal errors.

7. Is isolation provided between channels?

   Yes, both channel-to-channel and channel-to-ground isolation is provided.

8. What type of cabling is required?

   Standard shielded twisted-pair cabling is typically used for 4–20 mA outputs.

9. How long is the service life of the module?

   The MTBF is greater than 500,000 hours, supporting many years of reliable operation.

10. Does the module comply with industry standards?

    Yes, it is CE, UL, and CSA certified and meets EMC requirements.
