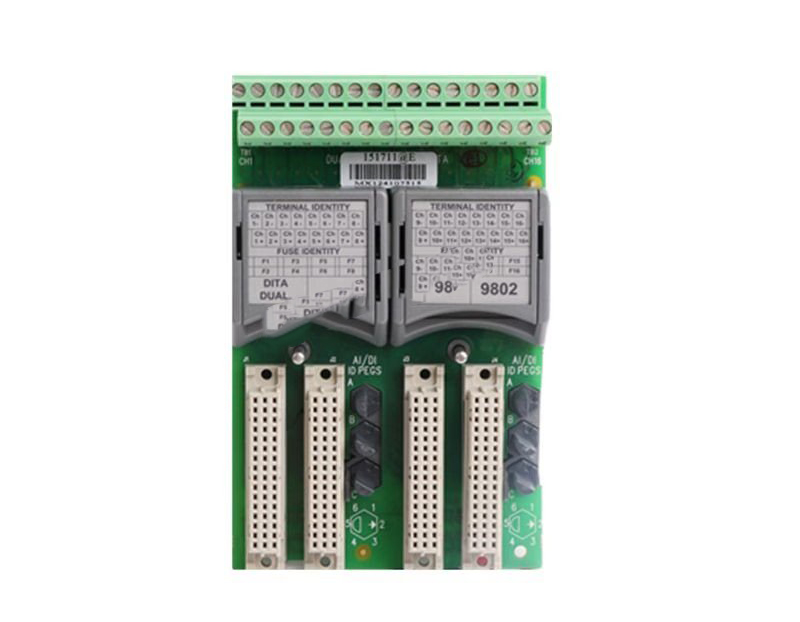

The ICS Triplex T9802 is a dual-channel, isolated digital input module designed for safety-critical applications. It is part of the ICS Triplex AADvance safety instrumented system (SIS) components. The module is certified to Safety Integrity Level (SIL) 3 according to the IEC 61508 standard.

Technical Specifications

• Model Number: T9802
• Manufacturer: ICS Triplex
• Type: Digital Input Module
• Number of Channels: 16 isolated digital input channels
• Input Voltage: 24 VDC
• Input Current: 2 A per channel
• Input Impedance: 47 kΩ
• Response Time: < 2 ms
• Isolation Voltage: 2500V RMS between channels and power supply
• Common Mode Rejection Ratio: > 60 dB
• Operating Temperature Range: -40°C to +85°C
• Storage Temperature Range: -40°C to +85°C
• Humidity: 5% to 95% RH (non-condensing)
• Vibration: 5g RMS, 10 to 500 Hz
• Shock: 30g, 11 ms half-sine
• Dimensions: 13.1 cm x 8.4 cm x 3.5 cm
• Weight: 0.14 kg
