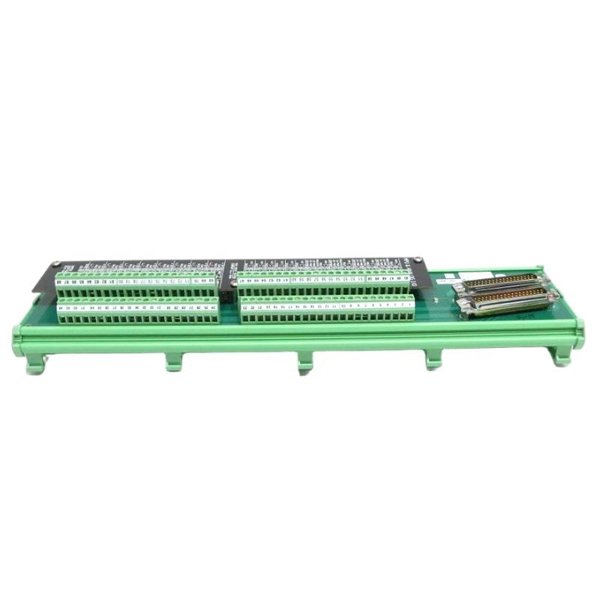

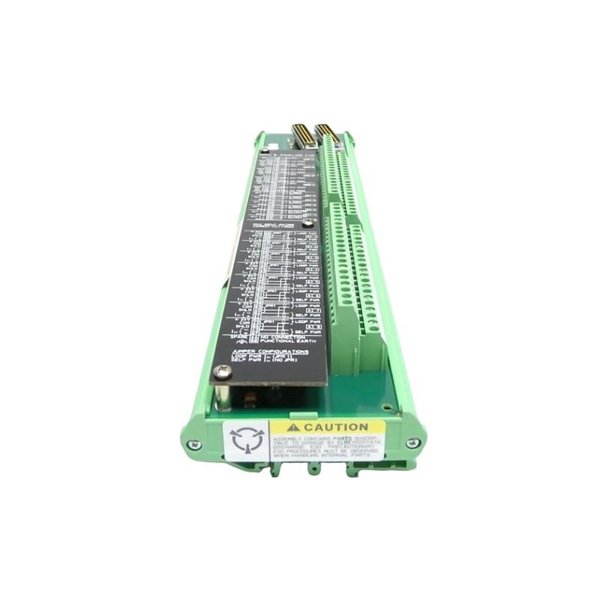

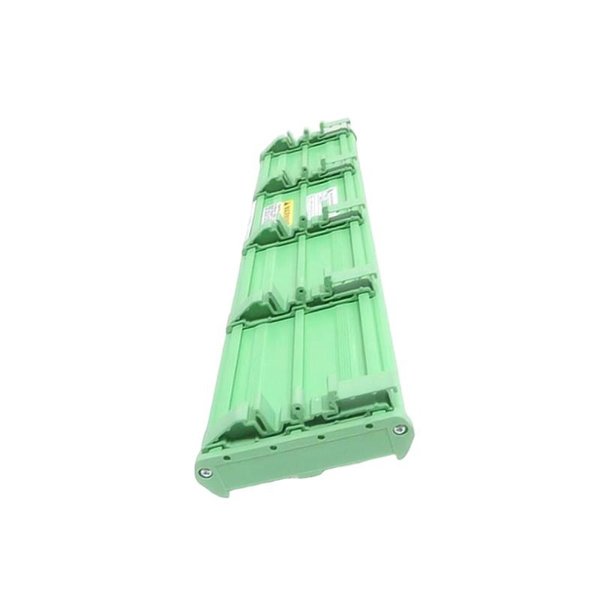

Woodward 5501-371 Simplex Interface Module

The Woodward 5501-371 Simplex Interface Module is a high-performance device designed to interface seamlessly with industrial control systems. Built to enhance the communication between a controller and various field devices, the module acts as a bridge for discrete and analog signals. This product is part of Woodward’s comprehensive control solutions that prioritize reliability, accuracy, and ease of integration.

The Woodward 5501-371 is used in systems requiring flexible input and output configurations, making it a versatile choice for both new installations and system upgrades. It ensures efficient signal processing and data communication with other modules and controllers, offering high reliability in critical control applications.

Technical Specifications

Applications

The Woodward 5501-371 Simplex Interface Module is ideal for use in numerous industrial control applications where efficient signal conversion and high reliability are paramount. Some of the main industries and applications include:

• Power Generation: Used in power plants to interface with turbines, generators, and transformers for precise control and monitoring.

• Industrial Automation: Essential in automated manufacturing environments to integrate sensors, actuators, and other devices with control systems.

• Oil and Gas: Offers connectivity for various devices used in oil rigs, pipelines, and gas processing facilities, ensuring safe and efficient operations.

• Marine: Facilitates integration with monitoring and control systems on ships, providing reliable communication between sensors and the main control systems.

• Transportation: Used in railways and other transportation networks for control, monitoring, and data acquisition purposes.

• Factory Automation: Supports production lines by interfacing with multiple devices, ensuring smooth automation and control processes.

Advantages

• Versatile Input/Output Configuration: The module supports both digital and analog signals, providing extensive flexibility for a wide range of industrial applications.

• High-Speed Communication: With a response time of less than 10 milliseconds, the module processes signals quickly, enabling fast and precise control.

• Compact Design: The module has a small footprint (160 x 160 x 120 mm), making it ideal for space-constrained environments.

• Wide Operating Temperature Range: It operates in temperatures ranging from -40°C to +70°C, making it suitable for harsh industrial conditions.

• Low Power Consumption: Consumes only 8W of power, making it energy-efficient and suitable for use in energy-sensitive environments.

• Reliable Communication: With support for CANopen and MODBUS protocols, the module can easily integrate into existing control systems and communicate reliably.

• High Durability: Built to withstand industrial environments, the module ensures long-term, reliable operation.

• Global Certifications: Compliant with UL, CE, and RoHS standards, ensuring it meets global safety, quality, and environmental requirements.

• Enhanced Safety: Offers built-in safety features to protect against overvoltage, short circuits, and other potential faults.

• Simple Integration: The module is designed for easy installation and integration into existing systems, simplifying system upgrades.

FAQs

1. What is the purpose of the Woodward 5501-371 Simplex Interface Module?

The module is used to interface discrete and analog devices with a control system, providing signal conversion for better communication and control.

2. How many channels does the Woodward 5501-371 support?

The module supports 16 discrete inputs and 16 discrete outputs.

3. What are the supported communication protocols?

The module supports CANopen and MODBUS protocols for easy integration into industrial control systems.

4. What is the operating voltage of the module?

The operating voltage is 24V DC.

5. Can the module be used in high-temperature environments?

Yes, the module operates effectively in temperatures ranging from -40°C to +70°C.

6. What is the power consumption of the module?

The module consumes only 8W of power, making it energy-efficient.

7. What certifications does the Woodward 5501-371 have?

The module is UL, CE, and RoHS certified, ensuring compliance with global standards for safety and environmental compatibility.

8. What are the dimensions of the module?

The module has dimensions of 160 x 160 x 120 mm.

9. What is the response time of the module?

The module has a response time of less than 10 milliseconds, ensuring quick signal processing.

10. How is the module mounted?

The Woodward 5501-371 Simplex Interface Module is designed to be mounted in a standard 19-inch rack or panel.
