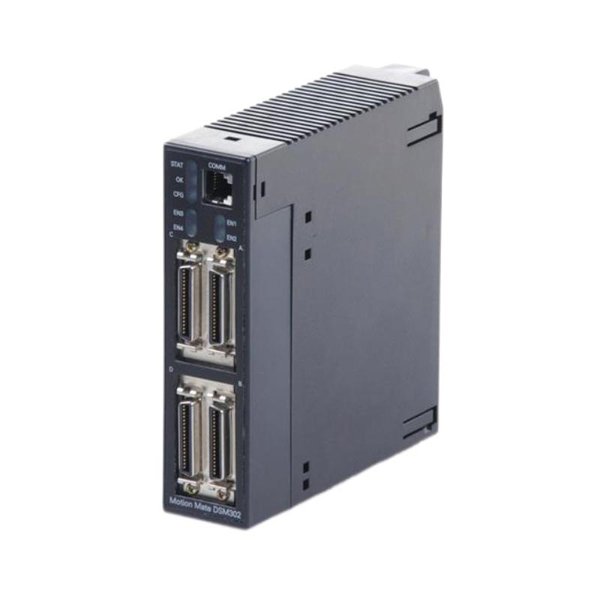

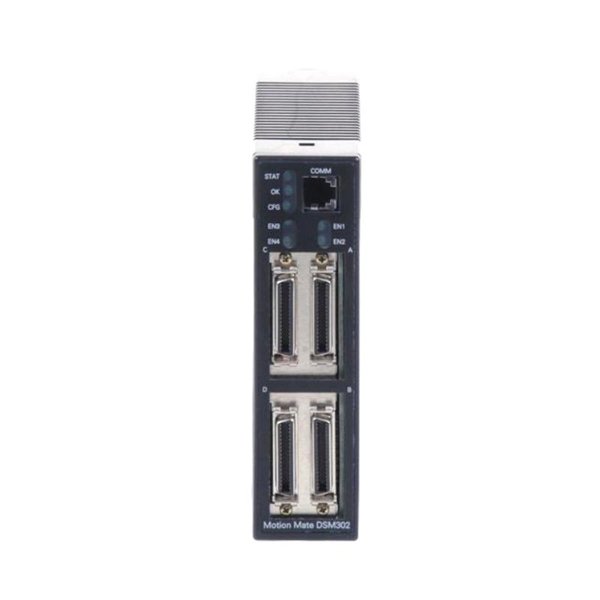

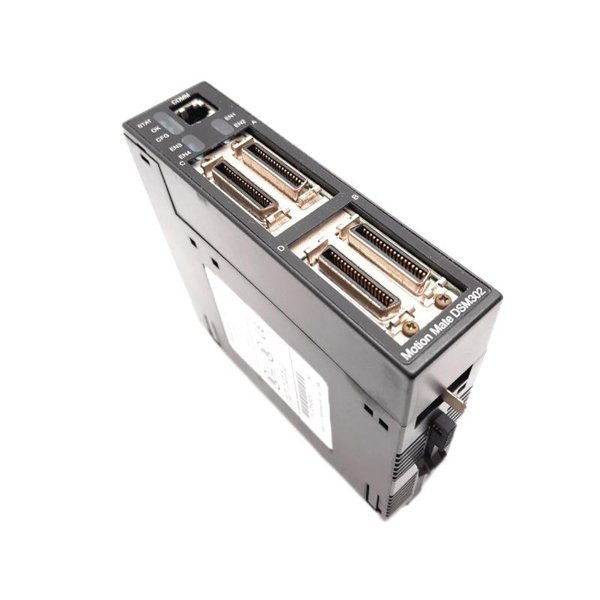

General Electric IC693DSM302 Two-Axis Motion Control Module

The GE IC693DSM302 Two-Axis Motion Control Module is an advanced motion control solution designed for use with the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) platform. It provides precision control of two independent servo axes, allowing the automation of complex mechanical processes with high levels of accuracy and repeatability.

The IC693DSM302 is capable of executing sophisticated motion control profiles such as linear, circular interpolation, and continuous path control. It supports high-speed communication with servo amplifiers and motors, and seamlessly integrates with GE Proficy Machine Edition and VersaPro software for easy configuration and programming.

Thanks to its flexible design, robust performance, and easy integration into existing control systems, the IC693DSM302 is widely used in diverse industrial sectors, including automotive manufacturing, robotics, packaging, textiles, and precision assembly lines.

Product Specifications

Applications

The GE IC693DSM302 Two-Axis Motion Control Module is ideal for a wide variety of industrial applications that require precision motion control:

• CNC machines and machining centers

• Robotics systems (including pick-and-place arms)

• Automated packaging machinery

• Conveyor systems with positioning tasks

• Electronic component assembly equipment

• Textile machinery with synchronized movements

• High-speed labeling machines

• Semiconductor manufacturing tools

• Palletizing and depalletizing systems

• Glass processing and cutting machines

By providing advanced motion control and flexibility, the IC693DSM302 enhances productivity and ensures consistent product quality across many manufacturing processes.

Advantages

• Precision and Accuracy: 32-bit control resolution ensures high-precision positioning and speed regulation.

• Dual Axis Capability: Simultaneous control of two servo axes, reducing hardware costs and simplifying integration.

• Wide Motor Compatibility: Supports various servo motor brands through open pulse/direction interfaces.

• Advanced Motion Profiles: Capable of handling complex paths and interpolation for sophisticated mechanical tasks.

• Real-Time Diagnostics: LED indicators and software-based tools help detect and troubleshoot issues quickly.

• Ease of Programming: Compatible with GE Proficy Machine Edition and VersaPro for fast and intuitive motion programming.

• Compact Design: Space-saving module fits directly into the GE Series 90-30 PLC rack.

• Reliable and Durable: Engineered for operation in harsh industrial environments with wide temperature tolerance.

• Simplified Maintenance: Built-in diagnostics and modular design facilitate quick maintenance and replacement.

• Cost-Effective Integration: Avoids the need for external motion controllers or third-party solutions.

Frequently Asked Questions (FAQ)

1. What type of motors can be used with the IC693DSM302?

   The module supports servo motors with digital pulse and direction control interfaces.

2. How many axes can the module control?

   It controls two independent motion axes.

3. Does it support interpolation?

   Yes, it supports both linear and circular interpolation.

4. What feedback devices are supported?

   The module accepts incremental encoder or resolver feedback.

5. What is the maximum pulse frequency output?

   500 kHz per axis.

6. Is it compatible with Series 90-30 PLC systems?

   Yes, it integrates directly with the GE Fanuc Series 90-30 PLC platform.

7. What software is used to configure the module?

   It is configured using GE Proficy Machine Edition or VersaPro.

8. What is the physical size of the IC693DSM302?

   100 x 38 x 80 mm, 0.39 kg.

9. Can it be used in high-speed applications?

   Yes, it supports up to 500 kHz output per channel, ideal for high-speed motion.

10. Does the module provide diagnostic indicators?

    Yes, it includes LEDs for axis status, errors, and communication.
