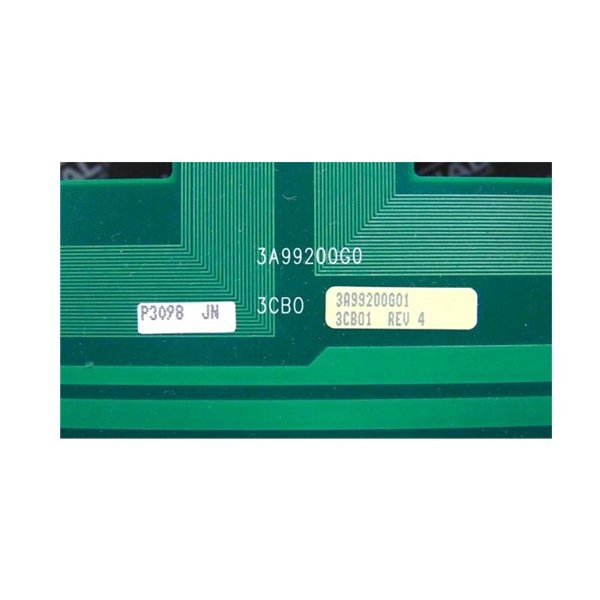

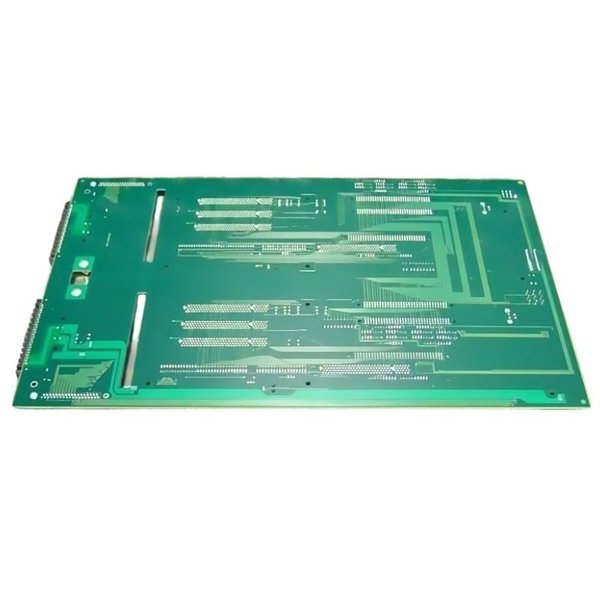

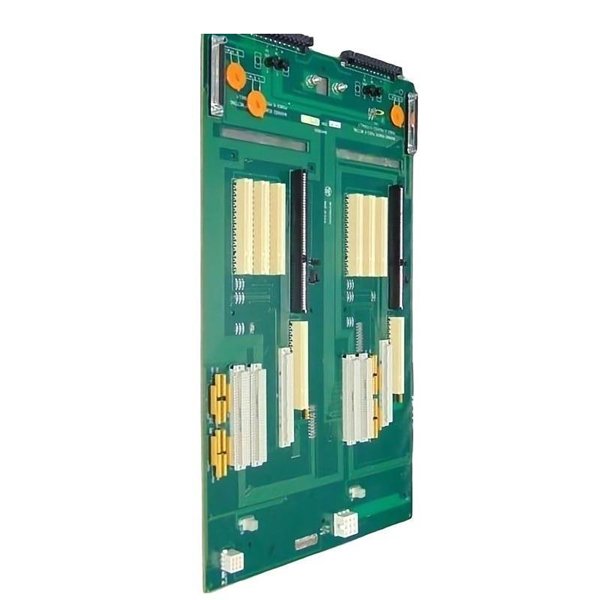

Ovation 3A99200G01 Controller Slot Rack Backplane Board

The Ovation 3A99200G01 Controller Slot Rack Backplane Board is an essential component within the Ovation Distributed Control System (DCS). It serves as the main backbone for connecting controller modules, I/O cards, and power modules in a centralized rack configuration. The backplane board ensures reliable communication, power distribution, and signal integrity between all inserted modules.

Designed for high-availability industrial environments, this backplane board provides a robust and fault-tolerant platform for process control applications. Its high-speed data pathways and precise signal routing enable rapid exchange of control data, supporting complex automation tasks across power plants, chemical processing units, and other industrial systems.

Product Specifications

Product Applications

The 3A99200G01 Backplane Board is utilized in industrial control networks where multiple controller and I/O modules need centralized integration. Typical applications include:

• Power generation plants for turbine and generator automation

• Chemical and petrochemical processing plants requiring centralized control

• Water and wastewater treatment facilities for process control networks

• Large-scale manufacturing plants with distributed automation systems

• Energy management and distribution networks

• Any Ovation-based rack system requiring high-speed inter-module communication

Product Advantages

The 3A99200G01 Backplane Board offers several technical advantages:

• High-Speed Communication: Optimized signal pathways for fast and reliable data transfer between modules.

• Robust Design: Built to maintain signal integrity and power distribution even in industrial noise environments.

• Fault Protection: Includes short-circuit and signal fault detection to protect connected modules.

• Scalability: Supports multiple controller and I/O modules for expanded system capacity.

• Ease of Maintenance: Rack-mounted plug-in design allows module replacement without interrupting system operation.

• Compatibility: Fully compatible with Ovation DCS controller and I/O modules for seamless integration.

Frequently Asked Questions (FAQ)

1. What type of modules can be installed on the 3A99200G01 backplane?

   It supports Ovation DCS controller and I/O modules compatible with the Multibus interface.

2. How many slots does the board provide for modules?

   The board provides 12 standard slots for controller or I/O modules.

3. Does the backplane provide power to inserted modules?

   Yes, it distributes 5V DC and 12V DC power to all installed modules via the rack power supply.

4. Can the board maintain high-speed data transfer in industrial environments?

   Yes, it is designed for high-speed parallel data communication, maintaining integrity under electrical noise.

5. Does the backplane include protection features for modules?

   Yes, it includes short-circuit and signal fault protections to safeguard all inserted devices.

6. Is the board compatible with legacy Ovation systems?

   Yes, it works with most Ovation legacy controller and I/O modules.

7. Can the board be used in redundant system configurations?

   Yes, it supports redundant power inputs and multiple backplanes for fault-tolerant architectures.

8. What is the operational temperature range of the backplane board?

   It operates reliably between 0°C and 60°C.

9. Does the backplane support high-density module installations?

   Yes, it can handle multiple high-performance modules without signal degradation.

10. Is maintenance or module replacement disruptive to system operation?

    No, the rack-mounted plug-in design allows module replacement without interrupting the entire system.
