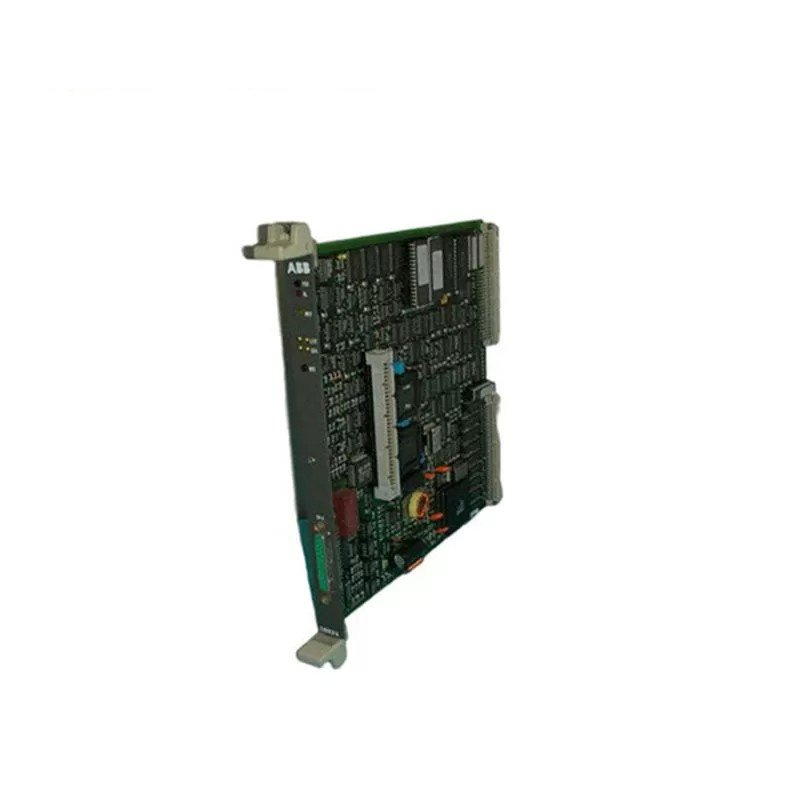

ABB HESG447224R2 Output Module

The ABB HESG447224R2 is an Output Module designed for the ABB Procontrol P13 distributed control system (DCS). It facilitates digital outputs to external devices based on commands from the control system. The module features advanced connectivity options and robust specifications suitable for demanding industrial environments.

Technical Specifications

• Power Supply: 24 VDC
• Power Consumption: 20 W
• Operating Temperature Range: -40 to 70 °C (-40 to 158 °F)
• Storage Temperature Range: -40 to 85 °C (-40 to 185 °F)
• Humidity: 5 to 95% RH (non-condensing)
• Vibration: 0.05 g rms, 5 to 500 Hz
• Shock: 5 g, 11 ms half-sine
• EMC: EN 61000-6-2, EN 61000-6-3
• Dimensions: 210 x 160 x 80 mm (8.27 x 6.30 x 3.15 in)
• Weight: 1.5 kg (3.31 lb)

Additional Features

• Dual redundant power inputs
• Watchdog timer
• Diagnostics
• Alarms
• One M.2 2280 M-Key slot for automatic detection of PCI Express x4 NVMe or SATA Gen3 SSDs
• Two front-accessible SIM card slots for signal redundancy
• Four CMI slots for modular I/O expansion
• One CFM slot for power ignition sensing

Applications

The ABB HESG447224R2 Output Module is suitable for various applications in process industries, including:

• Oil and gas
• Chemicals
• Power generation
• Water and wastewater treatment
• Pharmaceuticals
• Food and beverage

Benefits

• High reliability and availability
• Scalability
• Flexibility
• Ease of use
• Cost-effectiveness
