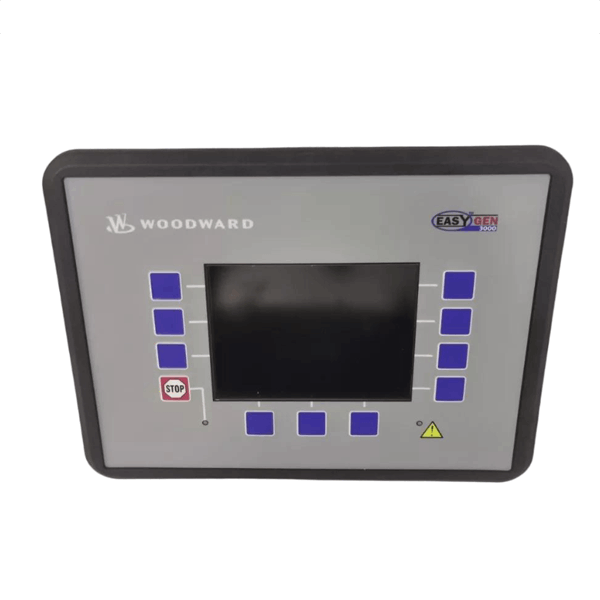

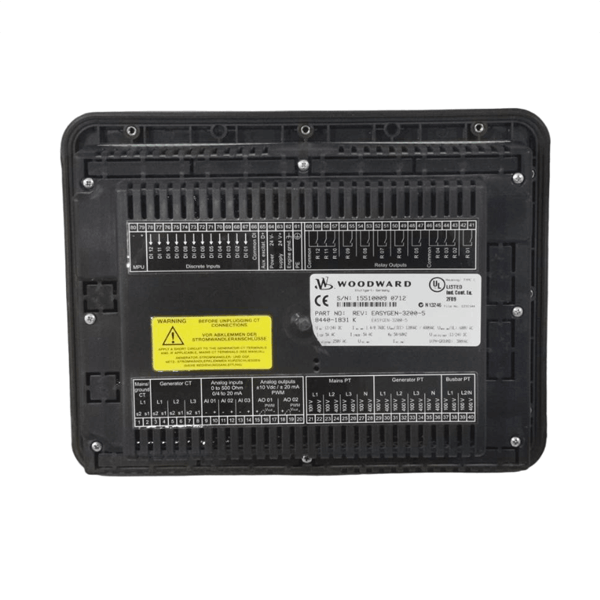

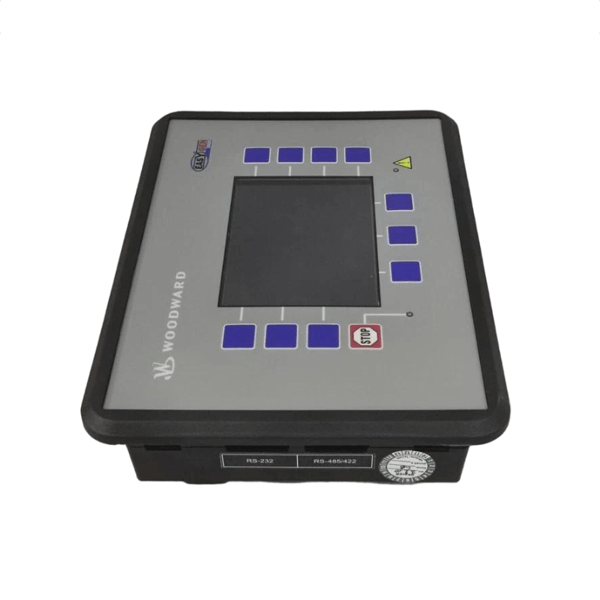

Woodward EASYGeneral ElectricN-3200-5 Generator Controller

The Woodward EASYGEN-3200-5 is an advanced generator controller designed for complex power management applications. It provides comprehensive control, protection, and monitoring functions for single or multiple gensets operating in island, standby, or parallel-to-mains configurations.

Key Features

• Complete genset control, monitoring, and protection

• Supports single or multiple genset applications

• Automatic synchronization and load sharing

• Multiple operating modes: island, standby, or parallel-to-mains

• Integrated PLC logic for application customization

• Wide range of communication protocols (CAN, Modbus, Ethernet, etc.)

• Graphical display with intuitive menu navigation

• Event logging and data trending for diagnostics

• Compact, rugged design for industrial environments

Technical Specifications

Industry Applications

• Power Generation Plants – multi-generator synchronization and load control

• Oil & Gas – genset control for remote and offshore installations

• Marine – reliable shipboard power management

• Data Centers – standby and emergency genset synchronization

• Industrial Facilities – seamless backup power and load control

Advantages

• Versatile controller for complex genset applications

• Supports multiple communication protocols for easy system integration

• Automatic synchronization and load sharing improve reliability

• Built-in PLC logic provides flexibility for custom applications

• Compact design with rugged construction for harsh environments

• Extensive event logging and diagnostics improve maintenance efficiency

Frequently Asked Questions (FAQ)

Q1: What is the main function of the EASYGEN-3200-5?

It provides control, monitoring, and protection for single or multiple generators.

Q2: Can it handle parallel genset applications?

Yes, it supports synchronization and load sharing for multiple gensets.

Q3: Which communication protocols are supported?

CAN, Modbus, Ethernet, and optional Profibus.

Q4: Does it include built-in logic programming?

Yes, it features integrated PLC logic for custom control strategies.

Q5: What display type does it use?

A graphical LCD with intuitive menu navigation.

Q6: What are the operating modes?

Island, standby, and parallel-to-mains operation.

Q7: What protection functions are available?

Voltage, frequency, load, and fault protections are integrated.

Q8: What is the operating temperature range?

-20 °C to +70 °C.

Q9: What are the dimensions?

217 mm x 282 mm x 99 mm.

Q10: How much does it weigh?

1.85 kg.
