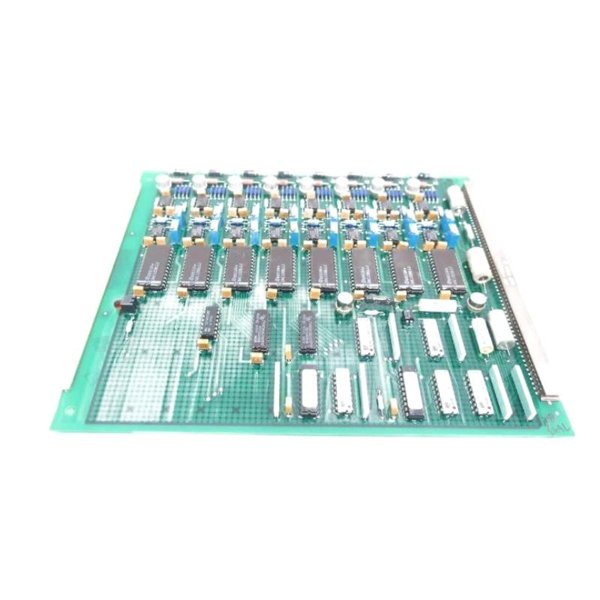

Woodward 5461-644 Analog Output Module

The Woodward 5461-644 Analog Output Module is designed for applications where precision and reliability are paramount. It allows a Woodward control system to interface with various field devices that require analog signals for operation. This module features 4-20mA and 0-10V output options, providing flexibility for a wide range of industrial applications.

Whether it is controlling the speed of a motor, adjusting the position of a valve, or regulating a process parameter in real-time, the Woodward 5461-644 ensures that the system provides accurate, stable, and reliable analog output signals. With a robust design suited for harsh industrial environments, this module ensures long-term performance and compatibility with other Woodward control equipment.

Technical Specifications

Applications

The Woodward 5461-644 Analog Output Module is ideal for a wide range of industrial applications where precision control and reliable output are critical. Key applications include:

1. Power Generation: Used in controlling turbine speed, generator output, and other critical parameters in power plants.

2. Oil & Gas: Provides control for valves, pumps, and other field devices in remote oilfield operations.

3. Water Treatment: Regulates pumps, filtration, and chemical dosing systems, ensuring effective treatment of water and wastewater.

4. Manufacturing: Used in automated production lines, controlling actuators, conveyors, and robots to ensure optimal performance.

5. HVAC Systems: Provides precise control over heating, ventilation, and air conditioning systems in large commercial or industrial buildings.

6. Chemical Processing: Used to regulate the flow of chemicals, controlling pumps and valves to maintain system stability.

Advantages

1. Precise Output Control: Provides reliable analog signals (4-20mA, 0-10V) for precise control of field devices, ensuring accurate regulation of industrial processes.

2. Compact Design: Its compact size and DIN rail mounting option allow for easy installation in control panels, even in tight spaces.

3. High Durability: The module is designed to operate in harsh industrial environments, with a wide operating temperature range of -20°C to 70°C.

4. Versatile Signal Handling: Capable of delivering both current and voltage output signals, making it adaptable for various field devices.

5. Scalability: With four output channels, the module can control multiple devices simultaneously, offering flexibility for system expansion.

6. Low Power Consumption: Operates on a 24V DC power supply, ensuring low energy consumption while maintaining performance.

7. Easy Integration: Seamlessly integrates with Woodward control systems, simplifying setup and reducing the time required for configuration.

8. Compliance: CE and UL certifications ensure that the module meets international safety standards, making it suitable for global deployments.

9. Reliable Communication: Supports Modbus and CAN communication protocols, ensuring fast, reliable data transfer between the module and the control system.

10. Long-Term Performance: Built for long-term use, ensuring stable and consistent performance throughout the life of the equipment.

FAQ

1. What is the purpose of the Woodward 5461-644 Analog Output Module?

   • The module converts digital signals from a Woodward control system into precise analog output signals for field devices that require such inputs for operation.

2. How many output channels does the Woodward 5461-644 support?

   • The module supports up to four output channels.

3. What types of output signals can the module provide?

   • The module provides analog output signals in 4-20mA and 0-10V, which are widely used for controlling field devices.

4. What is the power supply requirement for this module?

   • The module operates on a 24V DC power supply.

5. What is the operating temperature range of the module?

   • The module operates within a temperature range of -20°C to 70°C.

6. Can the module be used outdoors?

   • The module is designed for industrial environments and should be installed in a protective enclosure if used outdoors to shield it from harsh environmental conditions.

7. What communication protocols are supported by the module?

   • The module supports Modbus and CAN communication protocols, ensuring reliable data transfer with the control system.

8. How is the module mounted?

   • The module is designed for DIN rail mounting, making installation quick and easy.

9. Is the Woodward 5461-644 Analog Output Module compatible with other Woodward products?

   • Yes, the module is designed to integrate seamlessly with other Woodward control systems, providing smooth communication and control.

10. What industries typically use the Woodward 5461-644 Analog Output Module?

    • The module is used in industries such as power generation, oil & gas, water treatment, manufacturing, HVAC, and chemical processing.
