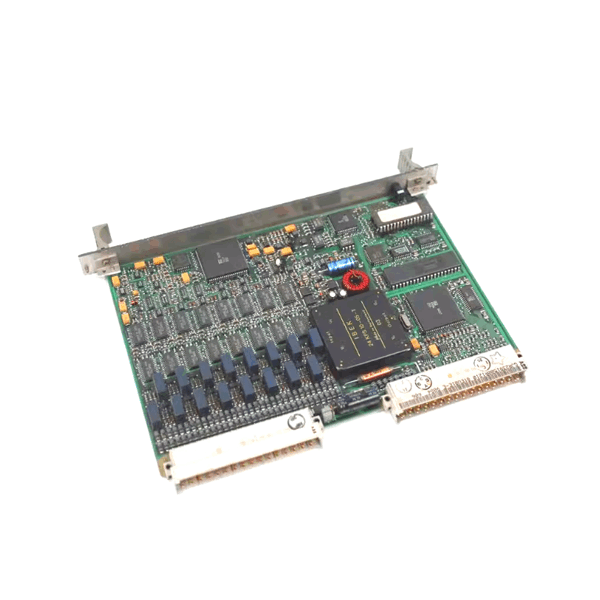

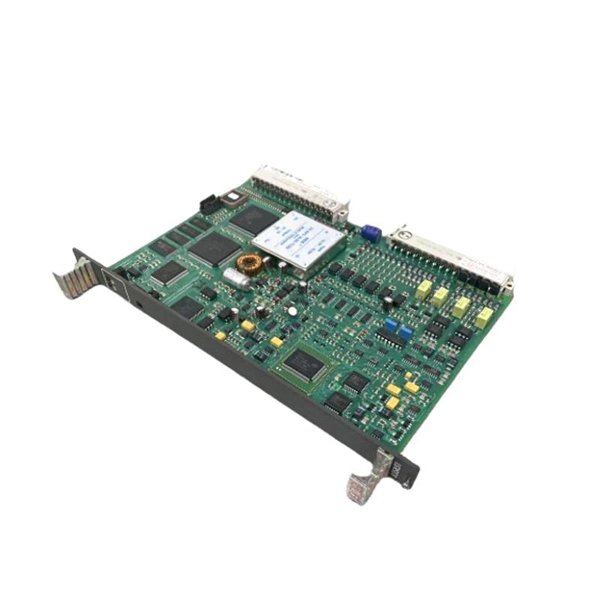

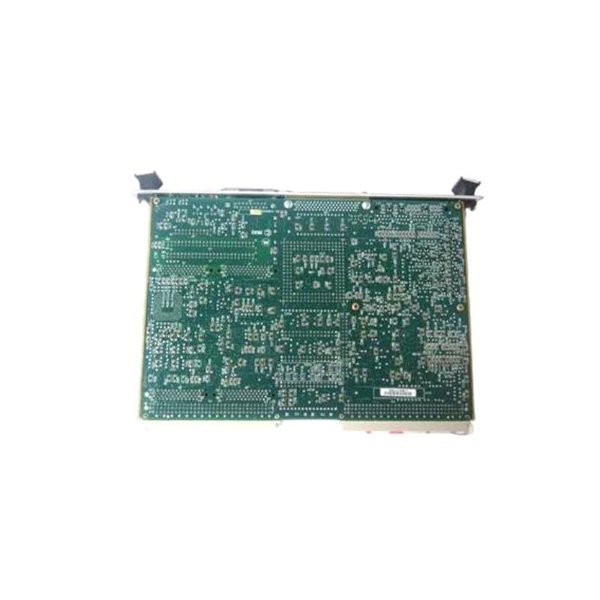

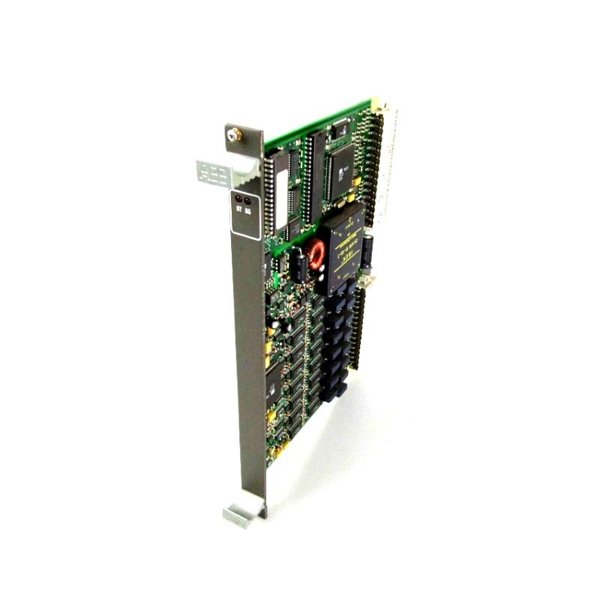

ABB 81EU01 GJR2391500R1210 Universal Input Module

The 81EU01 module functions as a translator in industrial automation setups, bridging the gap between various sensor inputs and the control system. It accepts a range of signals from sensors and switches—both digital and analog—and converts them into a format comprehensible to the control system. This capability allows for seamless integration and monitoring of different process variables such as pressure, temperature, and flow within a unified control framework.​

Technical Specifications

Below is a detailed table outlining the key technical specifications of the ABB 81EU01 GJR2391500R1210 module:​

Applications

The ABB 81EU01 module is widely employed in various industrial sectors due to its flexibility and reliability. Common applications include:​

• Process Control: Monitoring and controlling variables such as temperature, pressure, and flow in industries like chemical processing and power generation.​

• Machine Automation: Integrating with machinery to collect and process input signals for automated operations.​

• Safety Systems: Gathering critical input data to ensure safe operation of industrial processes.​

• Building Automation: Managing environmental controls within commercial and industrial buildings.​

Advantages

The ABB 81EU01 module offers several key advantages:​

• Versatility: Capable of handling both analog and digital inputs, accommodating a wide range of sensors and devices.​

• High Precision: 16-bit analog resolution ensures accurate data acquisition.​

• Safety Compliance: Intrinsic safety certification allows deployment in hazardous environments.​

• Operational Flexibility: Hot-swappable design facilitates maintenance without system downtime.​

• User-Friendly Configuration: Software-configurable channels enable easy adaptation to specific application requirements.​

• Robust Performance: High noise immunity and wide operating temperature range ensure reliable operation in harsh industrial conditions.

FAQ

1. What types of input signals can the ABB 81EU01 module process?

   • The module can process both analog voltage signals (0 to 10 V) and digital/pulse signals (24 V DC).​

2. Is the ABB 81EU01 module suitable for hazardous environments?

   • Yes, it is intrinsically safe certified for use in hazardous areas classified as ATEX/IECEx Zone 2.​

3. Can the module be replaced without shutting down the system?

   • Yes, the module supports hot swapping, allowing replacement without system downtime.​

4. How are the input channels configured?

   • Each channel is software-configurable, allowing individual settings for analog or digital input types.​

5. What is the analog resolution of the module?

   • The module offers a 16-bit analog resolution for high-precision signal processing.​

6. What are the dimensions and weight of the module?

   • The module measures 198 x 261 x 20 mm, with a weight of 0.5 kg.​

7. What mounting options are available for the ABB 81EU01 module?

   • It is designed for DIN rail mounting, facilitating easy installation within control cabinets.​

8. Does the module provide any visual status indicators?

   • Yes, it features LED indicators that provide visual status indications for each channel.​

9. What is the operating temperature range of the module?

   • The module operates reliably within a temperature range of -40°C to +70°C.​

10. How does the module ensure signal integrity in noisy environments?

    • It possesses high noise immunity, ensuring reliable operation even in electrically noisy industrial settings.
