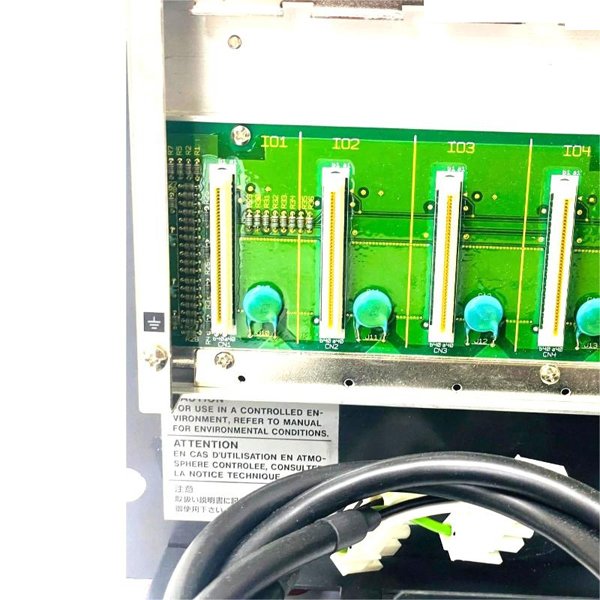

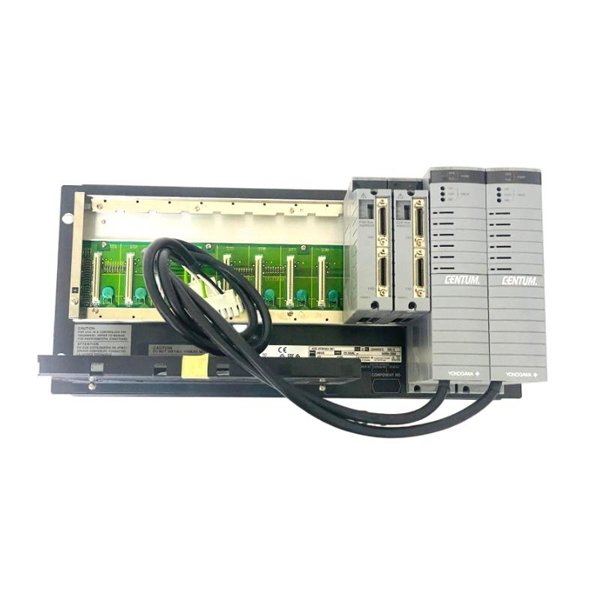

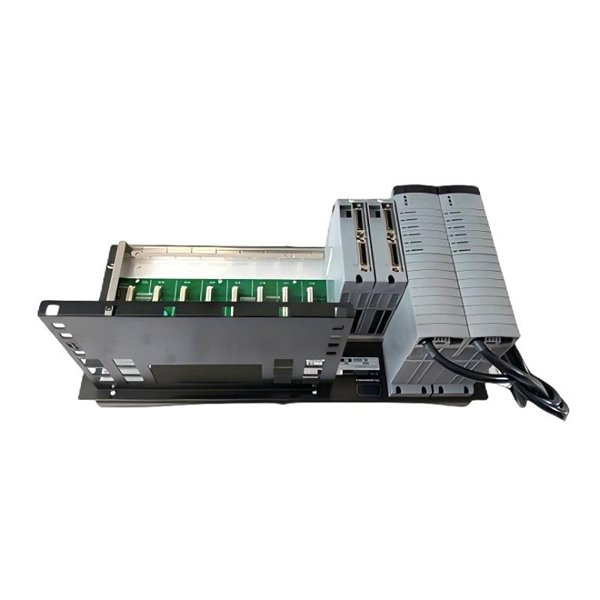

Yokogawa ANB10D-427/CU2N ESB Bus Node Unit

The Yokogawa ANB10D-427/CU2N is a high-performance ESB (Ethernet Service Bus) bus node unit designed to facilitate seamless communication in industrial automation systems. It plays a pivotal role in connecting various field devices, sensors, and control systems via an Ethernet-based communication network, ensuring that the entire system operates efficiently and reliably.

This unit supports high-speed communication and offers robust features for easy integration into large-scale automation networks. It is specifically designed to meet the needs of complex control systems, providing real-time data transfer, superior signal processing, and flexible configuration options. Whether used in process control, manufacturing automation, or remote monitoring applications, the ANB10D-427/CU2N ensures optimal performance under demanding industrial conditions.

With its compact design and high functionality, the ANB10D-427/CU2N is a reliable choice for applications requiring continuous and uninterrupted communication between devices across various systems.

Product Parameters

Product Applications

The ANB10D-427/CU2N ESB Bus Node Unit is widely used across various industries that rely on Ethernet-based communication networks for industrial control, automation, and monitoring. Some of its key applications include:

• Industrial Automation: Connects multiple devices such as PLCs, sensors, and actuators, enabling seamless communication for process control and automation.

• Process Control Systems: Ensures real-time data exchange and management between control systems and field devices, making it ideal for large-scale process monitoring and control.

• Data Acquisition: Facilitates the collection and transmission of data from field devices to central systems for further analysis and reporting in real-time.

• Distributed Control Systems (DCS): Integrates with DCS to provide efficient communication between remote devices and central control systems for synchronized data processing.

• Remote Monitoring and Control: Enables the connection of remote sensors and actuators, making it suitable for applications requiring real-time monitoring and adjustments over long distances.

Product Advantages

• High-Speed Ethernet Communication: The unit supports 100 Mbps Ethernet communication, ensuring fast and efficient data transfer and minimizing communication delays.

• Scalability: With support for 16 I/O channels, the ANB10D-427/CU2N can handle a wide range of field devices, allowing for future expansion and scalability of your automation systems.

• Compact and Robust Design: Despite its compact size (482.6 × 221.5 × 205 mm), the unit is built to withstand harsh industrial environments, with a temperature range of -20°C to +60°C.

• Easy Integration: Compatible with other Yokogawa products and systems, the unit simplifies integration into existing control and monitoring systems, reducing setup complexity.

• Energy-Efficient: With a low power consumption of 10 W, the unit provides optimal performance while minimizing energy usage and operational costs.

• Reliable and Durable: Built to operate continuously in challenging conditions, the unit offers exceptional reliability and longevity, ensuring consistent performance over time.

FAQ

1. What communication protocol does the ANB10D-427/CU2N support?

The ANB10D-427/CU2N supports Ethernet communication using the ESB (Ethernet Service Bus) protocol for efficient and high-speed data transfer.

2. How many I/O channels can the ANB10D-427/CU2N support?

The unit supports 16 I/O channels, providing enough capacity for a wide range of field devices.

3. What is the required power supply for the ANB10D-427/CU2N?

The unit requires a 24 VDC power supply with a tolerance of ±20%.

4. What is the communication speed of the ANB10D-427/CU2N?

The communication speed is 100 Mbps, which allows for fast and reliable data transmission between devices.

5. What is the temperature range in which the ANB10D-427/CU2N operates?

The ANB10D-427/CU2N operates in a temperature range of -20°C to +60°C, making it suitable for a variety of industrial environments.

6. How is the ANB10D-427/CU2N mounted?

This unit is designed for rack mounting, making installation straightforward and easy within control panels or server racks.

7. What types of connectors are used with the ANB10D-427/CU2N?

The unit uses RJ45 Ethernet connectors for seamless network communication with other devices.

8. How much power does the ANB10D-427/CU2N consume?

The unit consumes only 10 W of power, ensuring low energy usage while maintaining high performance.

9. Can the ANB10D-427/CU2N be integrated with other Yokogawa systems?

Yes, the unit is fully compatible with other Yokogawa products, enabling easy integration and communication within Yokogawa-based control systems.

10. What is the weight of the ANB10D-427/CU2N unit?

The ANB10D-427/CU2N weighs 10 kg, which is manageable for installation while being robust enough for industrial applications.
