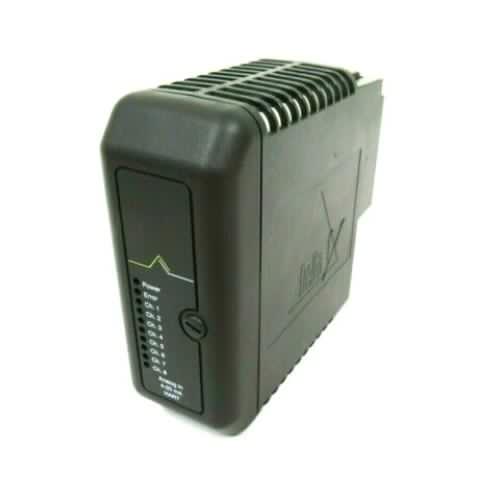

The Emerson Delta V KJ3002X1-BA1 12P0680X122 is a 16-bit, single-channel analog input module that is used in the DeltaV distributed control system (DCS). KJ3002X1-BA1 module provides a high-accuracy, high-speed, and reliable way to measure analog signals from a variety of sources, such as temperature, pressure, flow, and level sensors.

Features

• 16-bit resolution
• 100 kHz sampling rate
• HART 7 compatibility
• Modbus RTU/TCP/IP compatibility
• Ethernet connectivity
• DIN rail mounting

Technical Specifications

• Input range: -10 to +10 VDC
• Input impedance: 10 MΩ
• Output range: 0 to 4 mA
• Output impedance: 250 Ω
• Communication protocol: HART 7, Modbus RTU/TCP/IP
• Ethernet interface: 10/100Base-T
• Dimensions: 4.4 x 11.4 x 12.7 cm
• Weight: 0.2 kg

Advantages

• High accuracy
• High speed
• Reliable performance
• Wide input range
• HART 7 compatibility
• Modbus RTU/TCP/IP compatibility
• Ethernet connectivity
• DIN rail mounting

Applications

• Process control
• Manufacturing
• Utilities
• Oil and gas
• Chemical
• Pharmaceutical
• Water and wastewater treatment
