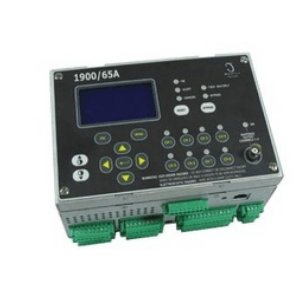

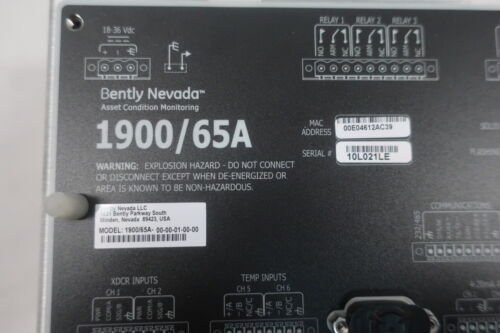

Bently Nevada 1900/65A 172323-01 Vibration Monitoring Controller
Brand: Bently Nevada
Model Number: 1900/65A 172323-01
Part Number: 172323-01
Type: Vibration monitoring controller
Product Origin: USA
Payment methods: T/T, Western Union
Dimensions: 196.9 mm x 149.4 mm x 97.8 mm (7.75” x 5.88” x 3.85”)
Weight: 1.4 kg (3.09 lbs)
Certificate: CE, UL
Warranty: 1 year
Product Description
The 1900/65A General Purpose Equipment Monitor is designed to continuously monitor and protect equipment used in various applications and industries. Consequently, it is suitable for general-purpose machines and processes that require continuous monitoring and protection.
Inputs
Moreover, it offers four transducer inputs, which can be configured for 2- and 3-wire accelerometers, velocity sensors, or proximity sensors. Additionally, it provides four temperature inputs that support Type E, J, K, and T thermocouples, as well as 2- or 3-wire RTDs.
Outputs
Furthermore, the 1900/65A boasts six relay outputs that can be configured to open or close based on the OK, Alert, and Danger statuses of any channel or combination of channels. Alongside these, there are four 4-20 mA recorder outputs and a dedicated buffered output for each transducer input.
Modbus Gateway
The monitor also features a Modbus Gateway option, allowing communication with Modbus clients, including Distributed Control Systems (DCSs), Supervisory Control and Data Acquisition (SCADA) systems, Programmable Logic Controllers (PLCs), or System 1 software.
Configuration
Users can configure monitor operation and the Modbus Gateway register map using software. Additionally, configuration information is stored in non-volatile memory and can be uploaded to the PC for changes.
Display Module
For added convenience, an optional display/keypad is available for viewing channel information or making minor configuration changes, enabling stand-alone operation.
Specifications (Selected)
- Input Voltage Range: 18 to 36 Vdc
- Operating Temperature: -20 to +70 ºC (-4 to +158 ºF)
- Storage Temperature: -30 to +90 ºC (-22 to +194 ºF)
- Supported Transducers: Various Bently Nevada transducer systems for acceleration, velocity, radial vibration, thrust, speed, and position measurements.
Loading comments...
Bently Nevada 1900/65A 172323-01 Vibration Monitoring Controller
Brand: Bently Nevada
Model Number: 1900/65A 172323-01
Part Number: 172323-01
Type: Vibration monitoring controller
Product Origin: USA
Payment methods: T/T, Western Union
Dimensions: 196.9 mm x 149.4 mm x 97.8 mm (7.75” x 5.88” x 3.85”)
Weight: 1.4 kg (3.09 lbs)
Certificate: CE, UL
Warranty: 1 year
Product Description
The 1900/65A General Purpose Equipment Monitor is designed to continuously monitor and protect equipment used in various applications and industries. Consequently, it is suitable for general-purpose machines and processes that require continuous monitoring and protection.
Inputs
Moreover, it offers four transducer inputs, which can be configured for 2- and 3-wire accelerometers, velocity sensors, or proximity sensors. Additionally, it provides four temperature inputs that support Type E, J, K, and T thermocouples, as well as 2- or 3-wire RTDs.
Outputs
Furthermore, the 1900/65A boasts six relay outputs that can be configured to open or close based on the OK, Alert, and Danger statuses of any channel or combination of channels. Alongside these, there are four 4-20 mA recorder outputs and a dedicated buffered output for each transducer input.
Modbus Gateway
The monitor also features a Modbus Gateway option, allowing communication with Modbus clients, including Distributed Control Systems (DCSs), Supervisory Control and Data Acquisition (SCADA) systems, Programmable Logic Controllers (PLCs), or System 1 software.
Configuration
Users can configure monitor operation and the Modbus Gateway register map using software. Additionally, configuration information is stored in non-volatile memory and can be uploaded to the PC for changes.
Display Module
For added convenience, an optional display/keypad is available for viewing channel information or making minor configuration changes, enabling stand-alone operation.
Specifications (Selected)
- Input Voltage Range: 18 to 36 Vdc
- Operating Temperature: -20 to +70 ºC (-4 to +158 ºF)
- Storage Temperature: -30 to +90 ºC (-22 to +194 ºF)
- Supported Transducers: Various Bently Nevada transducer systems for acceleration, velocity, radial vibration, thrust, speed, and position measurements.
