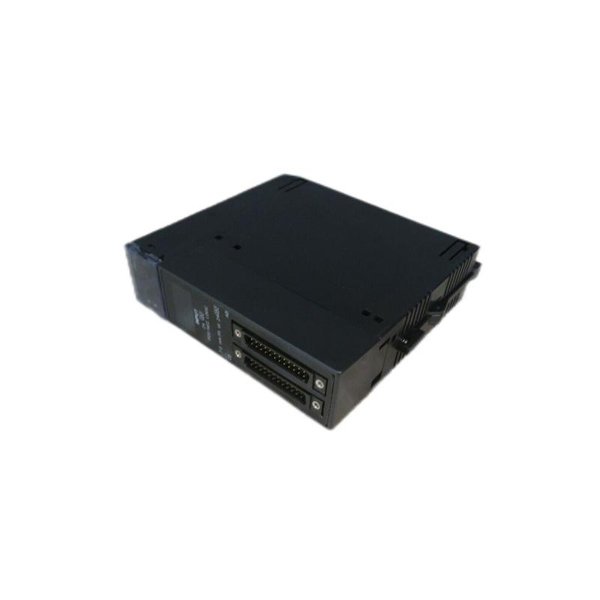

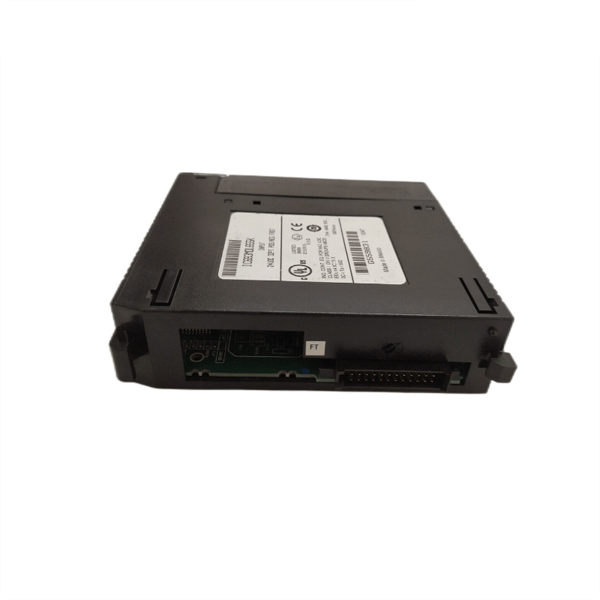

General Electric IC693MDL655L Positive/Negative Logic Input Module

The GE IC693MDL655L is a highly reliable digital output module designed for use in the GE Series 90-30 programmable logic controllers (PLCs). This module is engineered to provide seamless integration with GE’s versatile PLC systems, offering flexible and precise control of industrial processes. With high-speed response times and robust design, the IC693MDL655L is suitable for a wide range of automation applications.

The IC693MDL655L module is particularly useful in systems that require reliable output control, such as manufacturing lines, packaging systems, and industrial machines. It features a combination of discrete digital outputs, making it an ideal choice for controlling relays, valves, motors, and other devices.

Product Specifications

The GE IC693MDL655L is characterized by the following technical specifications:

Product Applications

The IC693MDL655L digital output module is suitable for use in a wide range of industrial applications, including:

1. Manufacturing Automation: Ideal for controlling machinery, conveyor belts, and robotic arms.

2. Process Control: Used for controlling actuators, motors, and other devices in a process automation environment.

3. Material Handling: Effective in controlling sorting, packaging, and transportation systems.

4. HVAC Systems: Integrated into systems to control heating, ventilation, and air conditioning units.

5. Automated Testing: Used in test stations to control various outputs during the testing process.

Product Advantages

• High Reliability: The IC693MDL655L is designed for long-lasting performance, ensuring minimal downtime in industrial settings.

• Easy Integration: It integrates seamlessly with the GE Series 90-30 PLCs, offering ease of installation and operation.

• Flexible Output Control: Offers 16 individual digital outputs, each capable of handling up to 0.5A, providing versatile control in various applications.

• Wide Operating Temperature Range: Designed to operate in a wide range of temperatures, making it suitable for both indoor and harsh industrial environments.

• Compact Design: The module’s compact size makes it an ideal choice for applications with space constraints.

FAQ(Frequently Asked Questions)

1. Q: What is the voltage range for the GE IC693MDL655L outputs?

   • A: The output voltage range for this module is from 0 to 24 VDC.

2. Q: How many outputs does the GE IC693MDL655L module have?

   • A: It has 16 discrete digital outputs.

3. Q: What is the current rating for each output on the GE IC693MDL655L?

   • A: Each output can handle up to 0.5A of current, and the total current rating for the module is 8A.

4. Q: Can I use this module with any GE PLC system?

   • A: The IC693MDL655L is designed for use with the GE Series 90-30 PLC base.

5. Q: What are the mounting options for this module?

   • A: The module mounts directly to the IC693 PLC base.

6. Q: What is the operating temperature range of the module?

   • A: The operating temperature range is from 0°C to 60°C.

7. Q: Is this module suitable for use in outdoor environments?

   • A: The module is designed for indoor use and may not be suitable for extreme outdoor conditions without additional protective measures.

8. Q: Does this module support sinking outputs?

   • A: Yes, the GE IC693MDL655L supports sinking digital outputs.

9. Q: What is the weight of the GE IC693MDL655L module?

   • A: The weight of the module is 0.281 kg.

10. Q: Can I use this module to control motors directly?

    • A: Yes, it can be used to control motors, relays, and other devices that require discrete digital output control.
