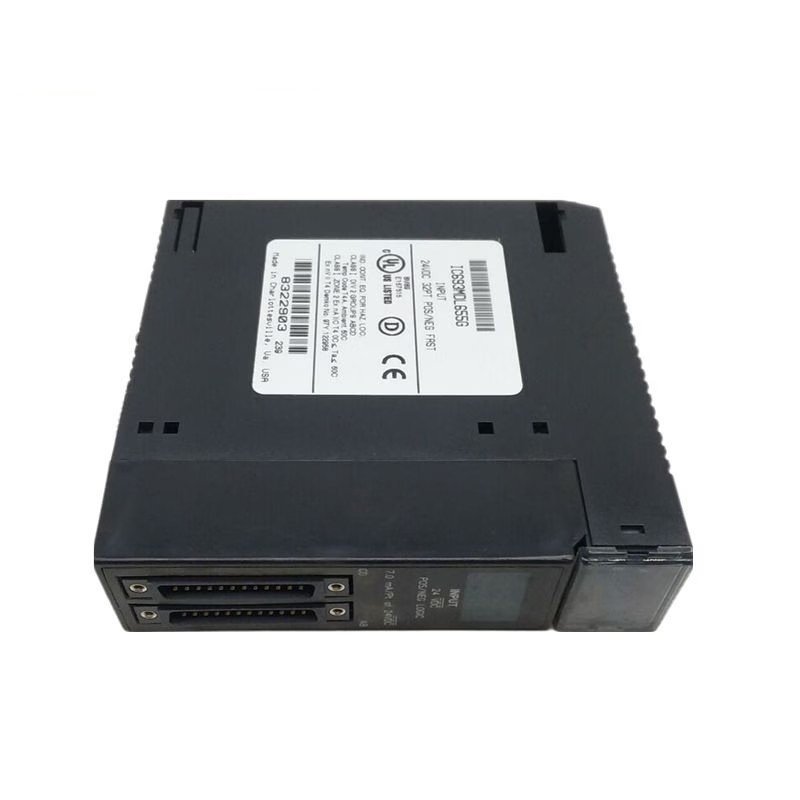

The GE Fanuc IC693MDL655G is a 24-Volt DC Positive/Negative Logic Input Module designed for use with the GE Fanuc Series 90-30 PLC systems. It provides 32 discrete input points, making it suitable for controlling various industrial automation devices such as sensors, switches, and pushbuttons. The module is optimized for flexibility and reliability in industrial environments, offering high isolation and fast response times.

Technical Specifications

• Product Type: 24-Volt DC Positive/Negative Logic Input Module
• Manufacturer: GE Fanuc
• Series: 90-30
• Input Voltage: 0 to 30 VDC
• Number of Inputs: 32 (4 groups of 8)
• Logic Type: Positive and Negative logic
• Input Current: 7 mA (typical) at rated voltage
• On-State Voltage: 11.5 to 30 VDC
• Off-State Voltage: 0 to 5 VDC
• On-State Current: 3.2 mA minimum
• Off-State Current: 1.1 mA maximum
• On Response Time: 2 ms maximum
• Off Response Time: 2 ms maximum
• Isolation:
  • 1500 V (field side to logic side)
  • 250 V (between groups)
• Internal Power Consumption: 29 mA (all inputs on) from 5V bus on the backplane
