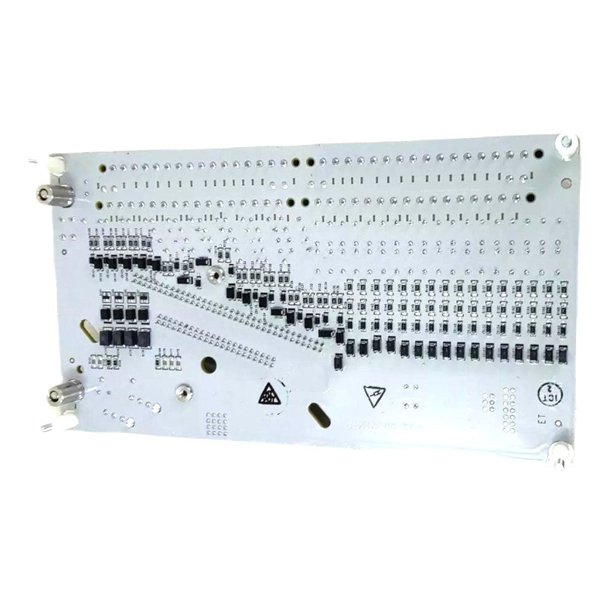

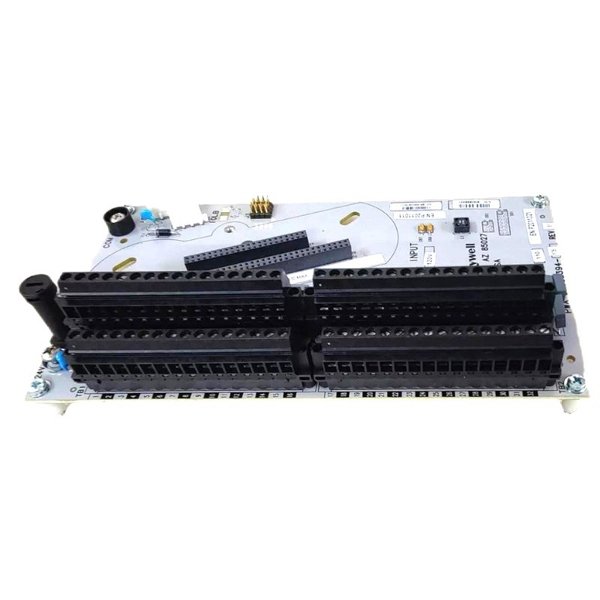

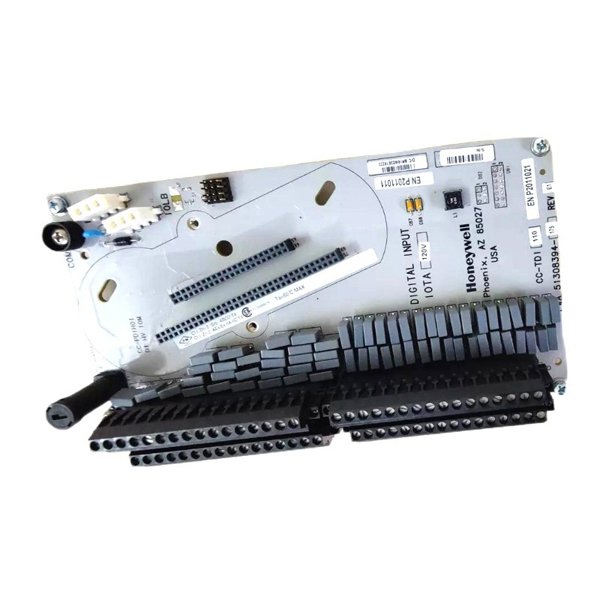

Honeywell CC-TDI11 051308307-175 C300 Controller Backplane

The Honeywell CC-TDI11051308307-175 is a high-performance industrial control module designed for precision monitoring and automation applications. It is part of Honeywell’s trusted line of process control solutions, known for reliability, durability, and seamless integration with industrial systems. This module is widely used in sectors such as oil & gas, chemical processing, power generation, and manufacturing.

Product Specifications

Product Applications

The Honeywell CC-TDI11051308307-175 is suitable for a wide range of industrial applications, including:

• Process Control Systems: Ensures accurate monitoring and regulation of industrial processes.

• Oil & Gas: Used in refineries, pipelines, and offshore platforms for safety and efficiency.

• Chemical Processing: Provides reliable data acquisition in corrosive environments.

• Power Plants: Monitors critical parameters in turbines and boilers.

• Manufacturing: Integrates with automation systems for real-time control.

• Water Treatment: Manages filtration and pumping systems.

Product Advantages

1. High Accuracy: Delivers precise measurements for critical industrial processes.

2. Robust Construction: Built to withstand harsh industrial environments (IP65 rated).

3. Wide Compatibility: Supports multiple communication protocols (Modbus, HART, Ethernet/IP).

4. Easy Integration: Seamlessly connects with Honeywell and third-party control systems.

5. Long Lifespan: Designed for durability with high-quality components.

6. Safety Certifications: Complies with ATEX and IECEx for hazardous areas.

Frequently Asked Questions (FAQ)

1. What is the operating voltage range of the CC-TDI11051308307-175?

The module operates at 24V DC (±10%).

2. Is this module suitable for hazardous environments?

Yes, it is ATEX and IECEx certified for use in explosive atmospheres.

3. What communication protocols does it support?

It supports Modbus RTU, HART, and Ethernet/IP.

4. What are the dimensions and weight of this module?

Dimensions: 63.5 x 124.46 x 307.34 mm| Weight: 0.5 kg.

5. Can it be used in high-temperature environments?

Yes, it operates in temperatures ranging from -20°C to 70°C (-4°F to 158°F).

6. What is the protection rating of this module?

It has an IP65 rating, making it dust-tight and resistant to water jets.

7. Does it come with a warranty?

Yes, it includes a 12 months.

8. Is this module compatible with third-party PLCs?

Yes, it integrates with most industrial control systems via standard protocols.

9. What industries commonly use this module?

Oil & gas, chemical processing, power plants, manufacturing, and water treatment.

10. How do I troubleshoot communication issues?

Check wiring, ensure correct protocol settings, and verify power supply stability.
