Honeywell 900S50-0460 ControlEdge HC900 I/O Scanner for Remote Rack
Manufacturer:Honeywell
Product Number:900S50-0460
Product Type:I/O Scanner
Origin:USA
Dimensions:137 × 38.1 × 137.16 mm
Weight:0.36 kg
Views:76
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description

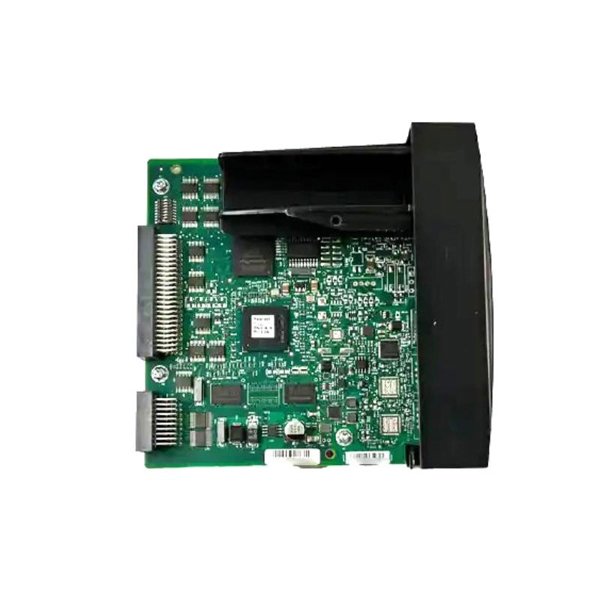

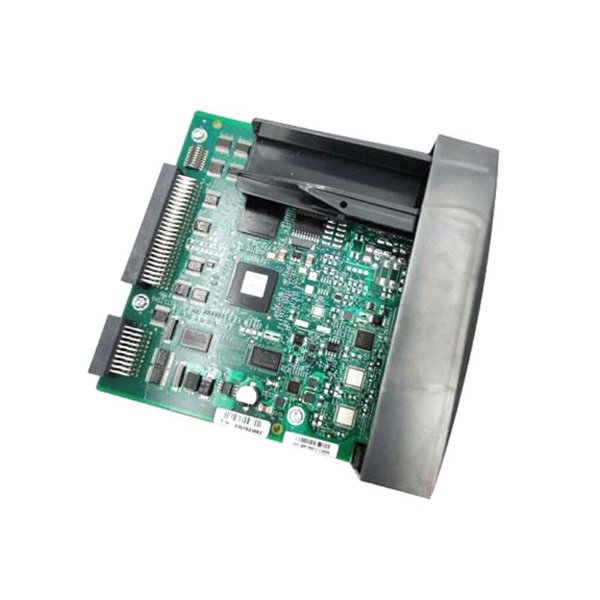

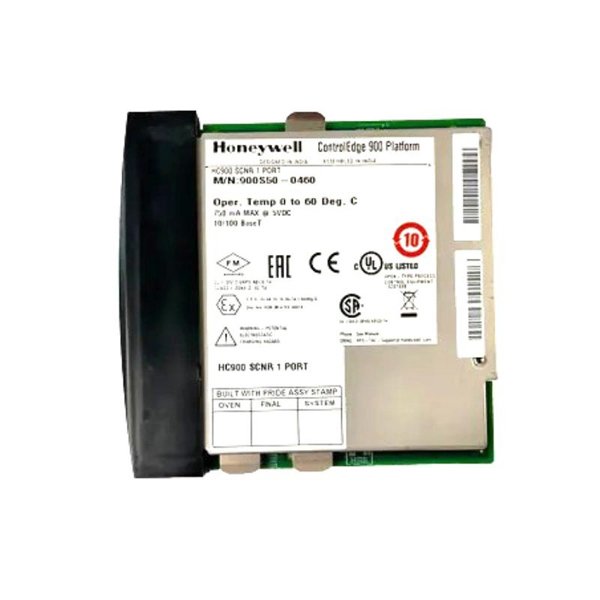

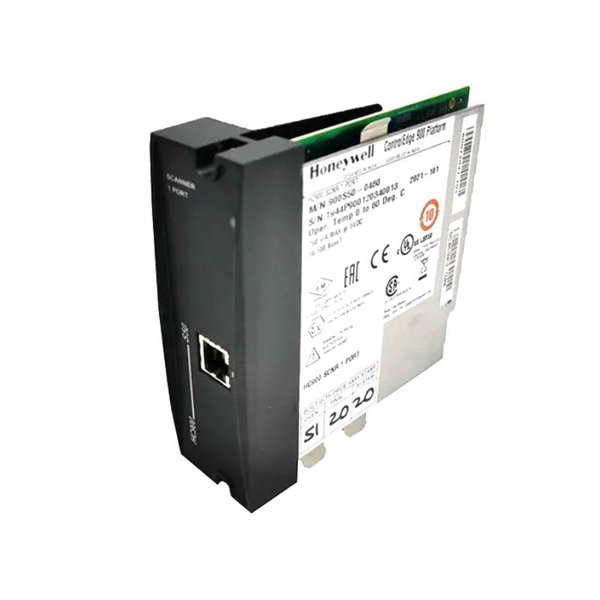

The Honeywell 900S50-0460 is a single-port I/O Scanner Module designed for the ControlEdge HC900 system. It allows communication between remote I/O racks and the main controller, enabling decentralized architecture for process control. This module facilitates data exchange through deterministic protocols to support high-reliability industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 900S50-0460 |
| Product Type | I/O Scanner Module for Remote Rack |
| Port Configuration | Single-Port Ethernet |
| Mounting Type | DIN Rail (35 mm) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 10%–90% non-condensing |
| Dimensions (H × W × D) | 137 × 38.1 × 137.16 mm |
| Weight | 0.36 kg |
| Status Indicators | Tri-color LED (Green/Amber/Red) |
| Certification | CE, UL, CSA, ATEX, FM |
| Isolation | Galvanic Isolation to Logic |
| Hot Swap Support | Yes |
Applications
-
Remote process monitoring and control
-
Distributed I/O installations
-
Large-scale DCS systems in chemical, food, water treatment, and energy sectors
-
Remote equipment interfacing in modular process units
Product Advantages
-
Modular Scalability: Enables flexible system expansion through remote racks
-
Hot-Swap Capability: Insert/remove without powering down the system
-
Deterministic Communication: Real-time I/O updates with minimal latency
-
Robust Build: Withstands harsh industrial environments (G3 conformal coating)
-
Integrated Diagnostics: LED indicators for status and fault detection
FAQs
Q1: What communication protocol does the 900S50-0460 support?
A1: It uses Ethernet-based deterministic protocols suitable for remote I/O communication.
Q2: Can the module be inserted or removed under power?
A2: Yes, the module supports hot insertion/removal without system shutdown.
Q3: What is the maximum operating temperature?
A3: The maximum operating temperature is 60°C.
Q4: How many ports are on the 900S50-0460?
A4: It is equipped with one Ethernet port.
Q5: Is this scanner module suitable for safety applications?
A5: Yes, it supports failsafe values and conforms to industrial safety standards.
Q6: What does the status LED indicate?
A6: Green = OK, Red = Fault, Amber = Override (Force mode).
Q7: Does it support field wiring terminal blocks?
A7: Yes, it is compatible with Euro and barrier style terminal blocks.
Q8: What is the form factor of the module?
A8: Compact form with dimensions of 137 × 38.1 × 137.16 mm.
Q9: Is the 900S50-0460 compliant with RoHS?
A9: Yes, it complies with RoHS 2, excluding power supply modules.
Q10: Can it be used in vibration-prone environments?
A10: Yes, it meets vibration standards up to 1g acceleration (15.77–250 Hz).
