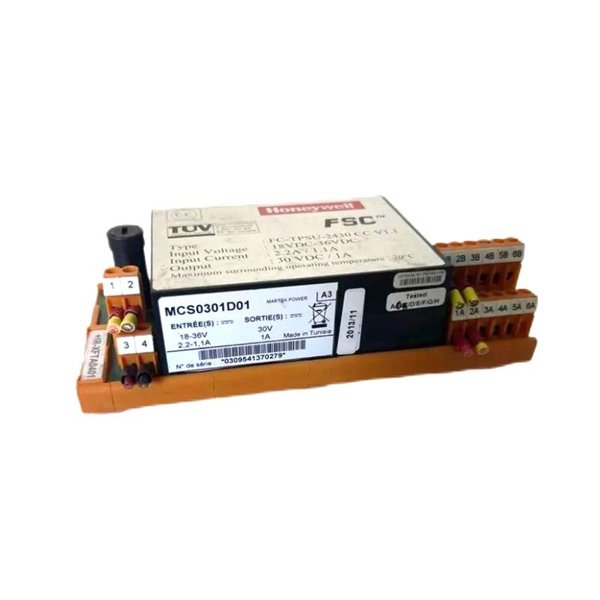

Honeywell FC-TPSU-2430 Power Supply Converter

The Honeywell FC-TPSU-2430 Power Supply Converter is a robust and reliable power supply module designed to deliver stable 24 VDC power to Honeywell’s field devices, controllers, and I/O modules within industrial automation and safety systems. It plays a vital role in ensuring uninterrupted power delivery, which is critical for maintaining system availability and operational safety.

Engineered for use in demanding environments, the FC-TPSU-2430 offers excellent protection against voltage fluctuations, overcurrent, and short circuits. Its compact design allows easy installation in control panels and rack systems, contributing to efficient space utilization.

This power supply converter is widely used across Honeywell’s Experion Process Knowledge System (PKS), Safety Manager, and related platforms, supporting seamless operation of process control, safety, and communication modules.

Technical Specifications

Product Applications

The FC-TPSU-2430 Power Supply Converter is commonly used in a variety of industrial settings where reliable power is critical for control and safety systems, including:

• Oil and Gas Processing – Powers controllers and field I/O in harsh, remote environments.

• Power Generation Plants – Supports continuous operation of control and monitoring equipment.

• Chemical and Petrochemical Plants – Provides reliable power for safety and process automation systems.

• Water and Wastewater Treatment – Ensures uninterrupted power for control panels managing pumps and valves.

• Manufacturing and Automation – Supplies power to distributed control systems and safety modules.

• Building Automation – Powers devices within HVAC and lighting control systems.

Product Advantages

• Stable and Reliable Power Output: Ensures consistent 24 VDC power under varying input conditions.

• Built-in Protection Features: Safeguards against overload, short circuits, and voltage spikes.

• High Efficiency: Minimizes energy loss and heat generation.

• Compact and Easy to Install: Designed for DIN rail or panel mounting, saving space in control cabinets.

• Wide Operating Temperature Range: Suitable for diverse industrial environments.

• Compatibility: Fully compatible with Honeywell control systems and field devices.

Frequently Asked Questions (FAQ)

1. What input voltage range does the FC-TPSU-2430 support?

   It accepts a wide input range from 100 to 240 VAC at 50/60 Hz.

2. What is the nominal output voltage?

   The module provides a nominal 24 VDC output.

3. How much current can this power supply deliver?

   It can supply up to 3 Amps continuously.

4. Does the power supply have built-in protection features?

   Yes, it includes overcurrent and short circuit protection.

5. Can the FC-TPSU-2430 be mounted on a DIN rail?

   Yes, it supports both DIN rail and panel mounting.

6. What is the typical operating temperature range?

   The device operates reliably between 0°C and 60°C.

7. Is the power supply suitable for hazardous environments?

   It is designed for industrial environments but specific hazardous location certifications should be verified based on installation.

8. What are the dimensions of the unit?

   It measures 150 × 70 × 62.3 mm.

9. Is the FC-TPSU-2430 compatible with Honeywell control systems?

   Yes, it is designed for seamless integration with Honeywell’s Experion PKS and Safety Manager systems.

10. What certifications does this product hold?

    It is certified by CE, UL, and CSA.
