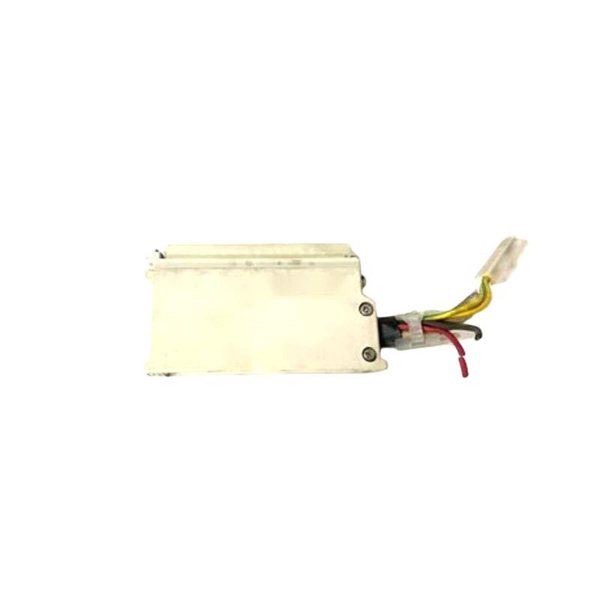

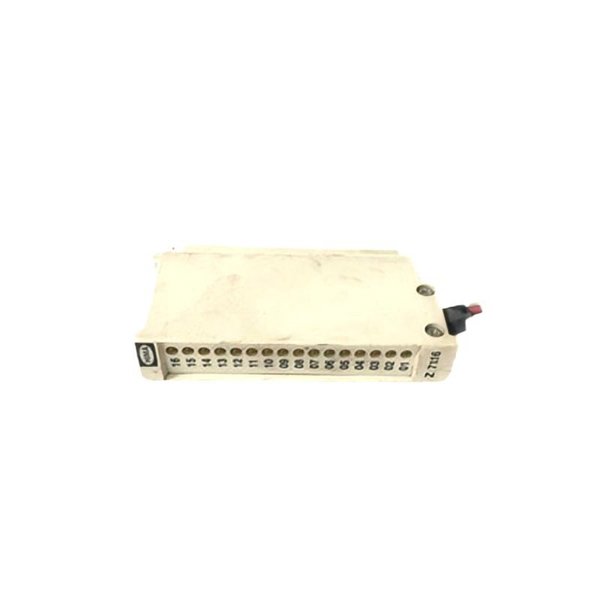

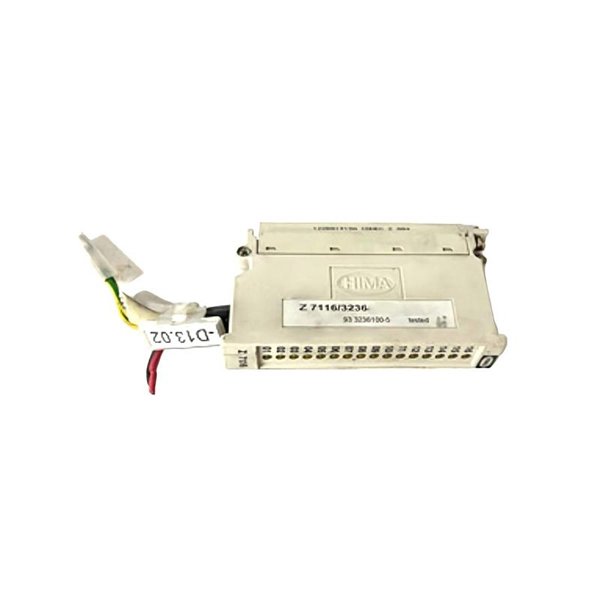

Hima Z7116/3236/C10 Cable Plug

The HIMA Z7116/3236/C10 Cable Plug is a high-quality industrial connector designed for seamless integration with HIMA safety systems. Manufactured in Germany, this cable plug ensures reliable signal transmission and robust performance in demanding environments. Its 16-pin configuration, LED indicators, and shunt resistor make it ideal for applications requiring precise monitoring and control.

Technical Specifications

Product Applications

The HIMA Z7116/3236/C10 Cable Plug is designed for use in various industrial applications where safety and reliability are paramount:

• Turbine Control Systems: Ensures reliable connections in power generation facilities.

• Industrial Automation: Facilitates secure communication between control systems and machinery.

• Safety Systems: Integral in connecting safety-related devices to HIMA safety controllers.

• Hazardous Environments: Suitable for areas prone to dust, moisture, or extreme temperatures due to its IP67 rating.

• Process Control Systems: Ensures reliable connections in chemical, oil, and gas industries.

Product Advantages

• Robust Construction: Durable materials ensure long-lasting performance in harsh conditions.

• High Protection Class: IP67 rating provides excellent resistance to dust and water ingress.

• Versatile Compatibility: Designed to work seamlessly with HIMA’s F3221 and F3236 modules.

• Easy Installation: User-friendly design allows for quick and secure connections, reducing installation time.

• Compliance with Standards: Meets international safety and environmental standards, ensuring reliability and safety.

• Compact Design: Space-saving dimensions make it suitable for installations with limited space.

• Reliable Signal Transmission: Minimizes signal loss, ensuring consistent communication between components.

• Temperature Resistance: Operates effectively in a wide temperature range, accommodating various industrial environments.

• Maintenance-Friendly: Designed for easy maintenance, reducing downtime and operational costs.

• Enhanced Safety: Provides secure connections, minimizing the risk of accidental disconnections or failures.

Frequently Asked Questions (FAQ)

1. What is the primary use of the HIMA Z7116/3236/C10 Cable Plug?

   • It is used to connect field devices to HIMA safety modules, ensuring secure and reliable signal transmission in safety-critical applications.

2. Is the cable plug suitable for outdoor use?

   • Yes, with an IP67 rating, it is dust-tight and water-resistant, making it suitable for outdoor and harsh environments.

3. What is the operating temperature range?

   • The plug operates effectively between -20°C and +60°C.

4. Can it be used with other HIMA modules besides F3221 and F3236?

   • While specifically designed for F3221 and F3236, compatibility with other modules should be verified based on technical requirements.

5. What are the weight of the plug?

   • It weighs 0.5 kg.

6. Does the plug comply with international standards?

   • Yes, it complies with CE, UL, and EN standards.

7. Is the installation process complicated?

   • No, the plug is designed for easy and secure installation, reducing setup time.

8. What is the warranty period for the product?

   • The product comes with a 12-month warranty.

9. Does the plug have LED indicators?

   • Yes, it features 16 LED indicators, one for each channel, providing clear visual feedback.

10. Is the plug resistant to high humidity?

    • Yes, it can operate in environments with up to 95% relative humidity, non-condensing.
