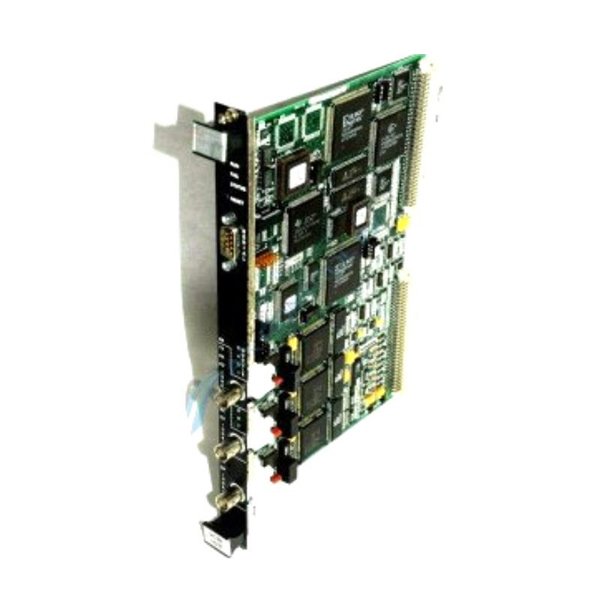

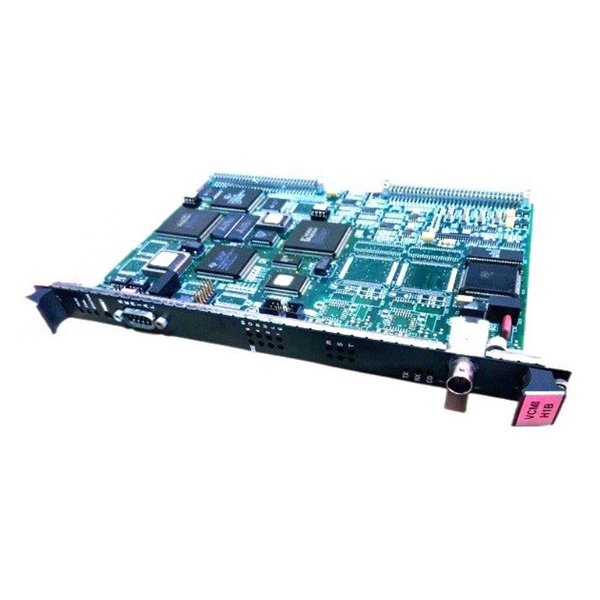

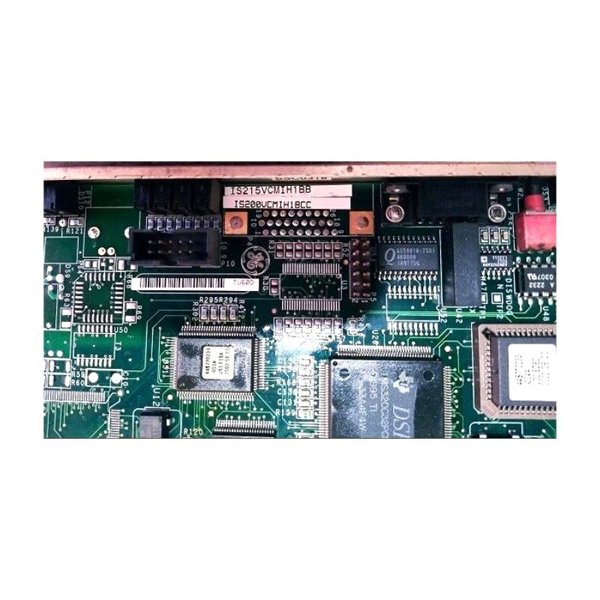

General Electric IS215VCMIH1B VCMI Bus Master Controller Board

The GE IS215VCMIH1B is a VCMI Bus Master Controller Board designed for integration within the Mark VI system, a part of GE’s Speedtronic series for gas and steam turbine control. This board serves as a critical communication interface, ensuring seamless data exchange between the controller and Input/Output (I/O) boards, as well as the system control network known as IONet.

Product Specifications

Product Applications

The IS215VCMIH1B is primarily utilized in industrial settings for the management and control of gas and steam turbines. Its applications include:

• Turbine Control Systems: Serving as a communication hub within GE’s Mark VI system, it ensures efficient data exchange between controllers and I/O devices, facilitating precise turbine operation.

• Industrial Process Automation: By managing communication interfaces, it plays a vital role in automating processes in power plants and other industrial environments where turbines are employed.

• System Monitoring and Diagnostics: The board’s ability to manage IDs and facilitate communication allows for real-time monitoring and diagnostics of turbine systems, aiding in predictive maintenance and reducing downtime.

Product Advantages

The IS215VCMIH1B offers several key advantages:

• Enhanced Communication: With its VME Bus Interface and IONet connectivity, the board ensures reliable and high-speed communication within the system, leading to improved performance.

• System Integration: Acting as a VCMI Bus Master Controller, it enhances system integration, enabling better coordination and synchronization of components within the GE Mark VI system.

• Flexibility: The availability of configurations with one or three Ethernet ports allows it to be tailored to different system requirements, supporting both simplex and TMR systems.

• Reliability: Designed for industrial environments, the board is built to withstand the demanding conditions of turbine control systems, ensuring long-term reliability.

FAQ

1. What is the purpose of the GE IS215VCMIH1B VCMI Bus Master Controller Board?

   The GE IS215VCMIH1B serves as a crucial part of the GE Mark VI control system, acting as a communication interface between the controller and various I/O devices in gas and steam turbine systems. It handles the data exchange between different system components and ensures proper operation and integration of the turbine control system.

2. Is the GE IS215VCMIH1B compatible with other turbine control systems outside of the Mark VI?

   No, the IS215VCMIH1B is specifically designed for use with the GE Mark VI turbine control system. It is not compatible with other turbine control systems as it is optimized for Mark VI configuration and communication protocols.

3. How does the IS215VCMIH1B facilitate communication between system components?

   The board communicates via the VME bus interface and IONet, a dedicated communication network within the GE Mark VI system. It supports both simplex and TMR (Triple Modular Redundancy) configurations, ensuring continuous and reliable communication in turbine control applications.

4. What are the key features of the IS215VCMIH1B regarding redundancy?

   The IS215VCMIH1B supports TMR configurations, providing enhanced system reliability. This means that the system can operate with three separate communication paths, ensuring that failure of one path does not lead to a loss of functionality, which is critical for safety in turbine control applications.

5. How does the board contribute to system diagnostics?

   The IS215VCMIH1B allows for real-time monitoring of the turbine system. It helps detect faults or performance issues by communicating diagnostic data and status reports across the IONet. This feature is vital for predictive maintenance, enabling operators to address potential issues before they lead to system downtime.

6. What types of power supply does the GE IS215VCMIH1B require?

   The IS215VCMIH1B operates with a 5V DC power supply, which is standard for most VME-based controller boards in turbine control systems. Proper voltage regulation is essential for maintaining stable operation of the board and the entire system.

7. Can the IS215VCMIH1B handle large data transfer requirements?

   Yes, the IS215VCMIH1B is designed to handle significant data traffic within the control system. Its integration into the IONet allows it to efficiently manage large amounts of data exchange between various components of the turbine system, ensuring timely and accurate control decisions.

8. What role does the IS215VCMIH1B play in system synchronization?

   The board plays a vital role in synchronizing multiple system components by managing the communication between the controller and I/O devices. This ensures that all components within the turbine system operate in harmony, which is essential for optimizing performance and efficiency.

9. Is the GE IS215VCMIH1B easily upgradeable?

   The IS215VCMIH1B is part of the GE Mark VI system, which is designed to be scalable and upgradable. While the board itself may not require frequent upgrades, the overall system can be enhanced with new software or hardware components to meet evolving operational needs.

10. What environmental conditions is the IS215VCMIH1B designed to withstand?

    The IS215VCMIH1B is built to perform reliably in industrial environments, including power plants and other industrial sites. It is designed to handle the vibrations, temperature variations, and electromagnetic interference commonly encountered in turbine control applications.
