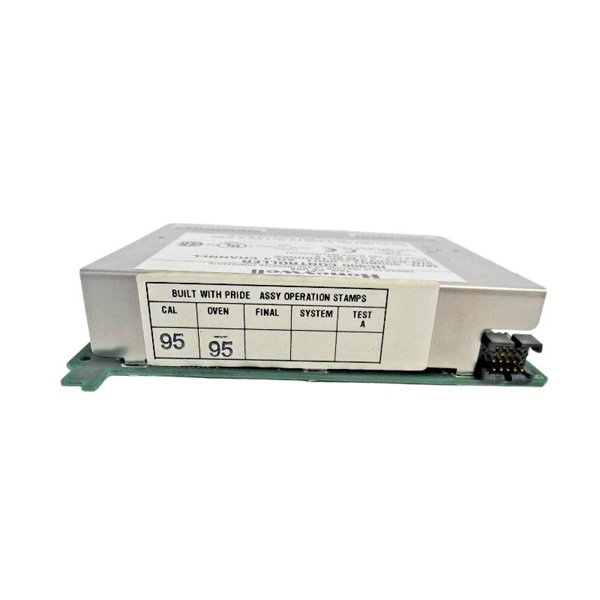

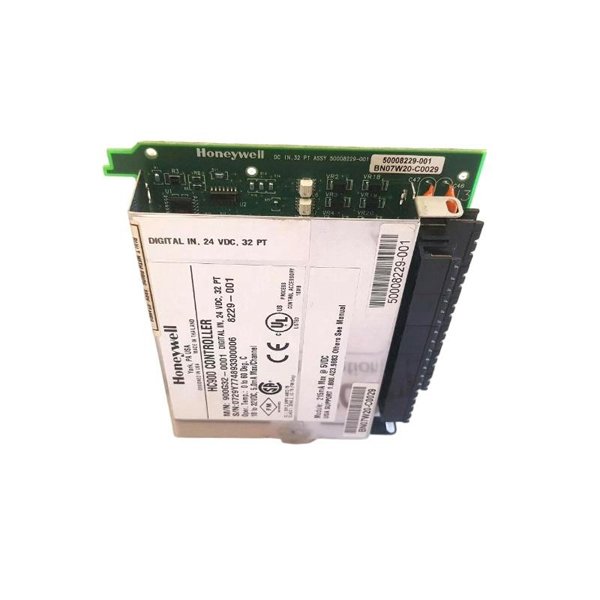

Honeywell 900G32-0102 HC900 32-Channel 24 VDC Digital Input Card

The Honeywell 900G32-0102 HC900 32-Channel 24 VDC Digital Input Card is a high-performance component designed for integration with Honeywell’s HC900 Process Controller. This digital input card enables the HC900 controller to interface with a wide range of digital field devices, such as sensors, switches, and safety devices. It supports 32 channels, providing high-density input for monitoring critical processes in industrial automation applications.

The 900G32-0102 card operates on a 24 VDC power supply and is designed to handle digital signals, offering fast response times and reliable performance in demanding environments. With modular design, it can be easily integrated into existing control systems, helping optimize the operation of large, complex systems with minimal space requirements.

With advanced diagnostic features, the HC900 32-Channel Digital Input Card ensures real-time monitoring and precise data capture from multiple devices, improving overall system efficiency and reducing the risk of errors. It is ideal for applications that require monitoring of on/off switches, alarm signals, and status indicators from multiple field devices.

Product Specifications

Product Application

The Honeywell 900G32-0102 HC900 Digital Input Card is commonly used in a wide variety of industrial automation applications where real-time monitoring of digital signals is essential. Some of the key applications include:

• Oil & Gas: In oil rigs, refineries, and pumping stations, the card is used to monitor valves, pressure switches, and safety equipment. It helps ensure that critical safety systems are operating properly and that any alarms or warnings are promptly detected.

• Chemical Processing: The card plays a crucial role in monitoring on/off signals from mixing equipment, reactors, and dosing systems. The HC900 with this card ensures that critical parameters are controlled accurately and consistently.

• Water Treatment: In water treatment plants, the card interfaces with flow sensors, level switches, and chemical dosing systems to monitor the operational status of treatment processes. It ensures that the plant operates efficiently while maintaining environmental standards.

• Manufacturing: The 900G32-0102 is used in automated production lines to monitor machine status, start/stop switches, and safety devices. This ensures smooth operations and timely detection of faults, preventing costly downtime.

• HVAC Systems: In HVAC systems, the digital input card is used to monitor on/off signals from various devices like motors, fans, and pumps, ensuring the entire system operates at peak efficiency.

With its high-density input channels and flexible configuration, the 900G32-0102 card is ideal for a variety of control and monitoring functions in industrial applications.

Product Advantages

• High Channel Density: The 32-channel design of the 900G32-0102 provides extensive input capabilities within a compact form factor, making it ideal for applications that require monitoring of multiple digital signals.

• Compact Size: With a size of 137 x 35.6 x 137.16 mm and weighing just 0.175 kg, the card is space-efficient, allowing it to be installed in systems with limited physical space while maintaining optimal performance.

• Seamless Integration: Designed for use with the HC900 controller, the card integrates easily with existing control systems, reducing installation time and complexity.

• Reliable Performance: The card is designed to operate in harsh industrial environments with an operating temperature range of -20°C to +60°C. It ensures reliable performance in a wide variety of applications, including those with challenging environmental conditions.

• Wide Input Range: Supporting 24 VDC digital input signals, the card can interface with a wide range of devices, ensuring compatibility with various industrial sensors and switches.

• Advanced Diagnostics: The HC900 controller, combined with the 900G32-0102 card, offers advanced diagnostics to monitor and troubleshoot digital input signals. This feature helps detect faults early, reducing system downtime and improving overall reliability.

• Energy-Efficient: The 24 VDC operating voltage of the card ensures that it consumes minimal energy, contributing to overall system efficiency and lower operational costs.

• Enhanced System Control: The card is designed to handle a wide range of input signals, ensuring that the HC900 controller provides precise control and monitoring for large-scale industrial systems.

• Flexible Mounting: The rack mount design of the card makes it easy to install and configure, providing flexibility for integration into various control panel systems.

• Compliance with Industry Standards: The card is UL, CE, and RoHS certified, ensuring that it meets global standards for safety, environmental impact, and quality.

Frequently Asked Questions (FAQ)

1. What industries use the Honeywell 900G32-0102 Digital Input Card?

   • The 900G32-0102 is used in industries such as oil and gas, chemical processing, water treatment, manufacturing, and HVAC systems.

2. What are the dimensions and weight of the 900G32-0102 card?

   • The 900G32-0102 has dimensions of 137 x 35.6 x 137.16 mm and weighs 0.175 kg.

3. What type of inputs does the 900G32-0102 support?

   • The 900G32-0102 supports 24 VDC digital input signals, allowing it to interface with a wide range of field devices.

4. How many channels does the Honeywell 900G32-0102 have?

   • The 900G32-0102 features 32 digital input channels, providing extensive monitoring capabilities.

5. What is the operating voltage of the 900G32-0102 card?

   • The card operates with a 24 VDC power supply.

6. Can the 900G32-0102 be used in extreme environments?

   • Yes, it has an operating temperature range of -20°C to +60°C, making it suitable for use in harsh industrial environments.

7. Is the Honeywell 900G32-0102 card easy to install?

   • Yes, the card has a rack mount design, making it easy to install in existing control systems.

8. What certifications does the 900G32-0102 have?

   • The card is UL, CE, and RoHS certified, ensuring compliance with global safety and environmental standards.

9. How does the 900G32-0102 improve system reliability?

   • The card provides real-time monitoring of digital input signals and supports advanced diagnostics, helping to detect issues early and reduce downtime.

10. What is the main advantage of using the Honeywell 900G32-0102 Digital Input Card?

    • The main advantage is its high channel density and reliable performance in industrial applications, ensuring precise monitoring of multiple digital signals with minimal space requirements.
