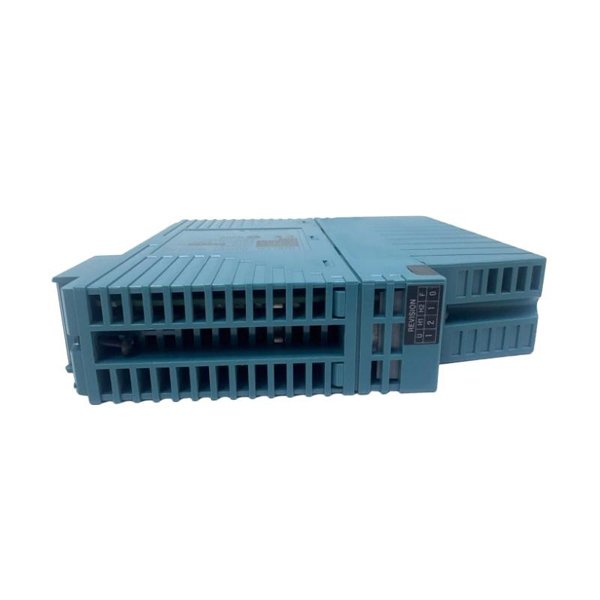

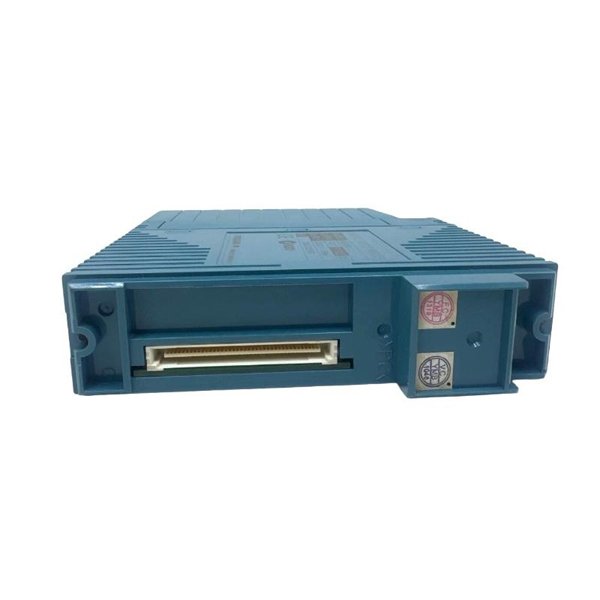

Yokogawa NFDV551-P10/CCC01 Digital Output Module

The Yokogawa NFDV551-P10/CCC01 Digital Output Module is a high-performance module designed for distributed control and safety systems, supporting precise digital signal output for critical field devices. It is part of the Yokogawa CENTUM VP and ProSafe-RS platform family, developed to provide stable, reliable, and secure output functionality under demanding industrial conditions.

This module is engineered for controlling actuators, solenoid valves, relays, alarms, and shutdown systems in large-scale industrial environments. With robust isolation, fast response time, and comprehensive diagnostic features, the NFDV551-P10/CCC01 ensures safety, maintainability, and efficiency in mission-critical operations.

Its modular design provides scalability and flexibility, allowing seamless integration into existing I/O configurations. It is particularly suited for process industries where uninterrupted operations and system availability are essential.

Product Specifications

Product Applications

The NFDV551-P10/CCC01 is applied across industries where reliable output signals are essential for safety and automation. Its common applications include:

• Oil & Gas Facilities: Actuation of solenoid valves, pumps, and emergency shutdown devices.

• Chemical and Petrochemical Plants: Driving interlock relays, alarms, and protective shutdown mechanisms.

• Power Plants: Control of turbine auxiliaries, emergency systems, and protection relays.

• Pharmaceutical Manufacturing: Precision operation of equipment and safety interlocks.

• Water and Wastewater Treatment: Controlling gates, pumps, and automatic valve systems.

• Heavy Industries (Steel, Mining): Operating machinery and field control devices requiring reliable digital outputs.

Product Advantages

• High Output Reliability: Supports critical industrial operations with redundant design for fault tolerance.

• Fast Response Time: Less than 5 ms output response ensures real-time actuation of field devices.

• Strong Channel Isolation: Prevents cross-channel interference and enhances system safety.

• Advanced Diagnostic Functions: Self-checking, loop monitoring, and fault detection reduce downtime.

• Compact and Lightweight: Space-saving dimensions simplify cabinet layout and installation.

• Seamless Integration: Fully compatible with Yokogawa’s CENTUM VP and ProSafe-RS systems.

• Compliance with International Standards: Guarantees suitability for global industrial applications.

• Scalable Architecture: Modular design supports easy system expansion and maintenance.

Frequently Asked Questions (FAQ)

1. How many output channels are available on the NFDV551-P10/CCC01?

   It provides 16 digital output channels.

2. What is the maximum current capacity per output channel?

   Each channel can supply up to 0.5 A at 24 V DC.

3. What is the typical response time for the digital outputs?

   The module has a typical response time of less than 5 milliseconds.

4. Does the module provide channel-to-channel isolation?

   Yes, optical and electrical isolation are implemented for each channel.

5. What diagnostic functions are included in this module?

   It supports channel fault detection, loop monitoring, and self-diagnosis.

6. Is the module capable of redundant operation?

   Yes, it supports dual redundant configurations for safety-critical systems.

7. Which field devices are commonly driven by this module?

   It is suitable for solenoid valves, relays, alarms, and emergency shutdown actuators.

8. What is the power consumption of this module?

   The power consumption is 4.5 W.

9. Which control systems are supported by this module?

   It is fully compatible with CENTUM VP and ProSafe-RS.

10. Does the module comply with industrial EMC standards?

    Yes, it complies with IEC/EN industrial EMC requirements.
