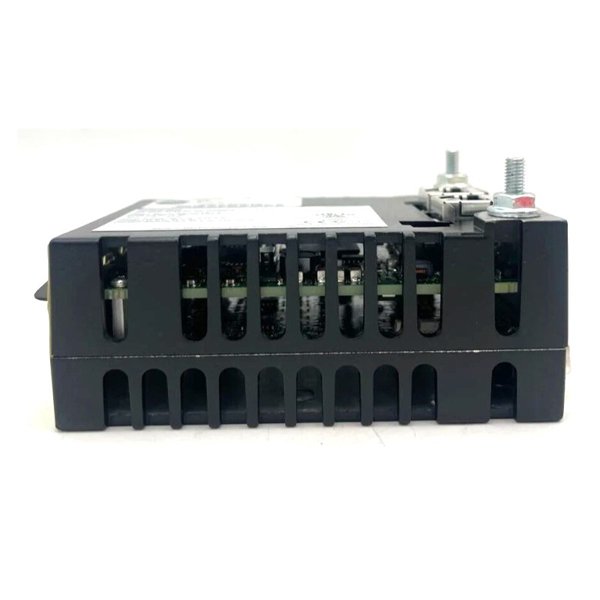

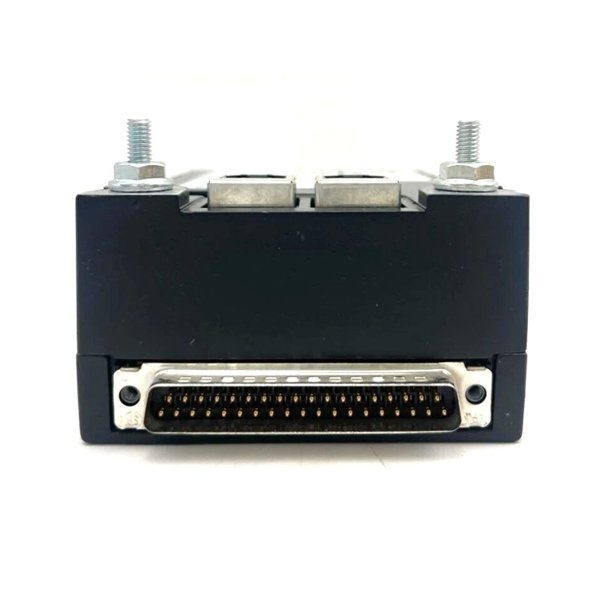

General Electric IS220YDOAS1AJ Discrete Contact Input I/O Module

The GE IS220YDOAS1AJ Discrete Contact Input I/O Module is part of GE’s powerful automation and control system, designed to provide reliable and accurate input/output capabilities for industrial applications. This module interfaces digital input signals with the system’s control logic, enabling seamless data processing and monitoring. It’s built to meet demanding industrial standards, offering robust performance in challenging environments.

Technical Specifications

Applications

1. Automation Systems: Ideal for controlling machines or processes that require discrete input monitoring such as switches, pushbuttons, and limit switches.

2. Control Systems: Perfect for digital I/O tasks in process control systems, industrial automation, and safety systems.

3. Power and Energy Management: Can be used in energy management systems to collect data from field devices.

4. Oil and Gas Industry: Works well in environments that require precise and reliable signal monitoring for discrete inputs.

5. Manufacturing Plants: Suitable for integration into automated production lines to monitor discrete status signals from equipment.

Product Advantages

• Reliability: Built to withstand harsh industrial environments, ensuring continuous performance without failure.

• High Input Range: Can handle a wide range of input voltages (10-30 V DC), making it versatile for various industrial applications.

• Compact Size: The module’s small form factor ensures easy integration into existing systems with limited space.

• Efficient Power Consumption: With a low power consumption of just 3.5 W, this module is energy-efficient, making it cost-effective for large systems.

• Enhanced Accuracy: Provides precise and real-time digital input processing for accurate monitoring and control.

• Durability: Designed to operate in tough environments, ensuring a long lifespan and consistent performance.

FAQ

1. What is the input voltage range of the GE IS220YDOAS1AJ module?

The input voltage range for the GE IS220YDOAS1AJ module is between 10 V DC and 30 V DC.

2. How many channels does the module support?

The module supports 8 digital input channels.

3. Can this module be used in high-temperature environments?

Yes, the module is designed to function in harsh industrial environments, including high temperatures. However, it’s important to verify the temperature range in the product’s specific manual.

4. What type of digital input signals can this module process?

This module processes discrete contact input signals such as those from pushbuttons, limit switches, and relays.

5. What is the power consumption of the module?

The GE IS220YDOAS1AJ has a low power consumption of 3.5 W.

6. Is this module compatible with other GE automation systems?

Yes, it is fully compatible with other GE automation systems and can be easily integrated into a variety of control applications.

7. Can this module handle inputs from sensors?

Yes, it can process inputs from sensors that generate discrete contact signals, such as on/off switches.

8. Does this module require a special configuration for installation?

The module is designed to be plug-and-play with minimal configuration required. However, it is always advisable to follow the manufacturer’s installation guidelines.

9. Can the IS220YDOAS1AJ module be used in hazardous locations?

This module is not inherently rated for hazardous locations. Additional protective measures or certification may be required for such environments.

10. How does this module communicate with the control system?

The module communicates with the control system via standard industrial communication protocols supported by GE automation systems.
