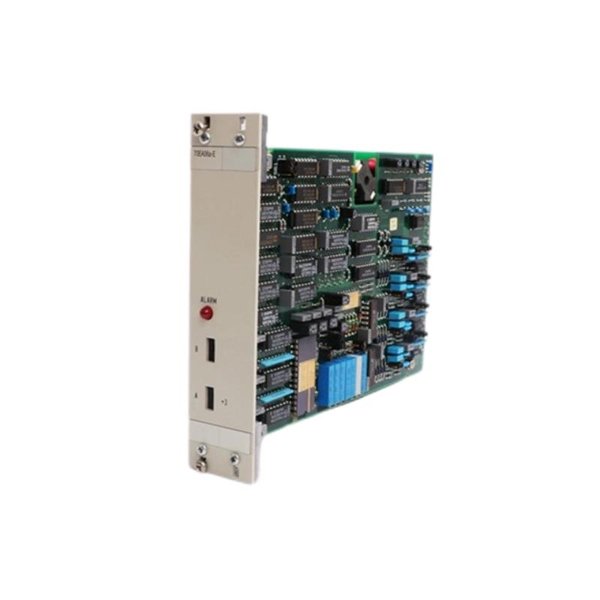

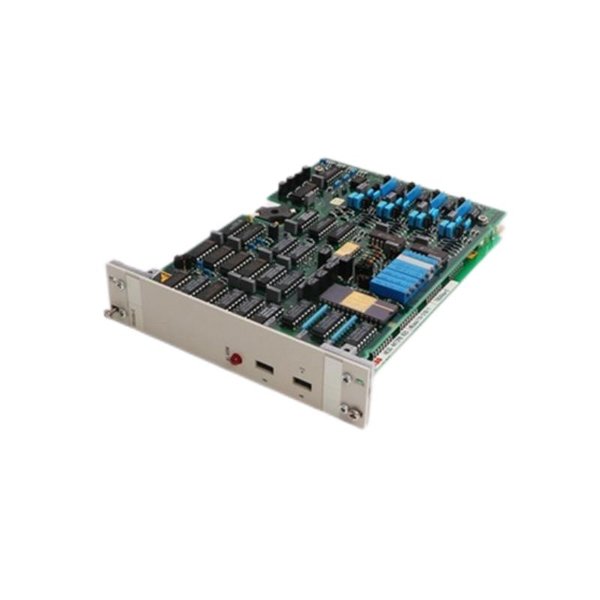

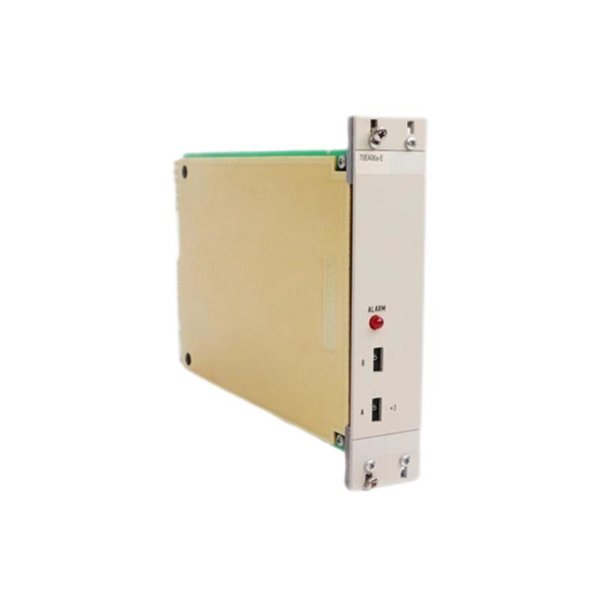

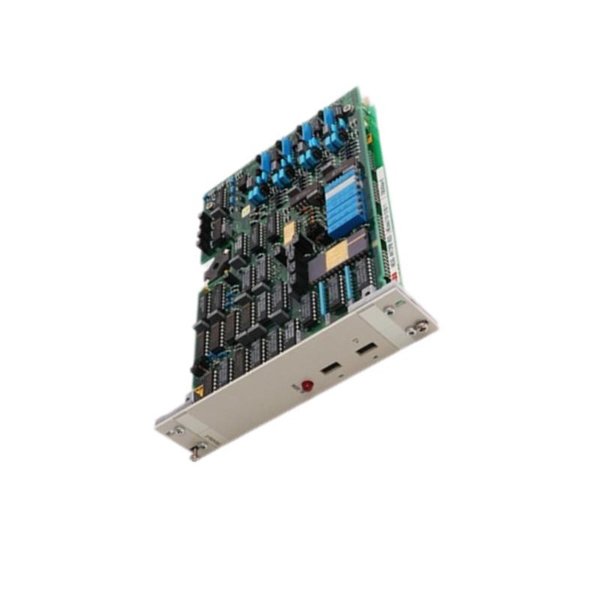

ABB 70EA06A-E HESG447398R0020 Input Module
Manufacturer:ABB
Product Number:70EA06A-E HESG447398R0020
Product Type:Input Module
Origin:Sweden
Dimensions:200 x 150 x 120 mm
Weight:2.5 kg
Views:65
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB 70EA06A-E HESG447398R0020 is a high-reliability digital input module designed for industrial automation systems within the ABB Symphony and INFI 90 series platforms. Engineered to meet the rigorous demands of continuous process control, this module plays a vital role in capturing digital signals from field devices and transmitting them reliably to the control processor.
This input module is renowned for its durability, low failure rate, and seamless integration into legacy and modern DCS architectures. It’s ideal for heavy industries such as power generation, petrochemical, and manufacturing where real-time, accurate input capture is mission-critical.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 70EA06A-E |
| Part Number | HESG447398R0020 |
| Function | Digital Input Module |
| System Compatibility | Symphony DCI, INFI 90 |
| Input Type | Digital / Discrete |
| Number of Channels | 16 Channels |
| Input Voltage | Typically 24 VDC (Nominal), suitable for field device signals |
| Logic Level High | ≥ 15 VDC |
| Logic Level Low | ≤ 5 VDC |
| Input Impedance | >10kΩ |
| Response Time | ≤ 5 ms |
| Isolation | Optical isolation between field and system logic |
| Redundancy Support | Yes (via system architecture) |
| Diagnostic Functions | Input line diagnostics, LED status indicators |
| Power Consumption | Approx. 2.5 W |
| Communication | Bus-connected via backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting | Rack-mount (DIN rail optional with adapter) |
| Protection | Conformal coated for harsh environments |
| Dimensions (H x W x D) | 200 x 150 x 120 mm |
| Weight | 2.5 kg |
| Certifications | CE, UL, CSA, ATEX compliance (depending on batch and regional variation) |
Product Applications
The ABB 70EA06A-E Input Module is widely used across several industrial sectors, including:
-
Power Plants (Thermal, Nuclear, Hydro): To monitor field input signals like limit switches, pressure switches, and interlock conditions.
-
Petrochemical Facilities: Used in monitoring digital inputs from sensors and transmitters that control valves and safety shutdowns.
-
Manufacturing Automation: Integrated with PLC/DCS for monitoring of sensors and binary input status.
-
Water Treatment Plants: Captures input data from field instruments related to tank levels and flow status.
-
Steel and Mining: Utilized in heavy-duty environments for capturing digital states of remote terminal units (RTUs).
Product Advantages
-
Robust Field Isolation: Optical isolation ensures protection from transient voltages and ground loops.
-
Legacy System Compatibility: Fully integrates with Symphony and INFI 90 systems, ensuring backward compatibility.
-
High Signal Integrity: Designed for minimal input delay and high noise immunity.
-
Compact Design: Slim form factor allows dense installation in standard I/O racks.
-
Long Service Life: Engineered for durability with MTBF exceeding industrial average.
-
Easy Maintenance: Diagnostic LEDs and system status feedback simplify troubleshooting.
Frequently Asked Questions (FAQ)
-
Q: What systems is the 70EA06A-E compatible with?
A: It is primarily compatible with ABB Symphony DCI and INFI 90 process control systems.
-
Q: How many input channels does this module support?
A: It supports 16 discrete (digital) input channels.
-
Q: What type of signals can it read?
A: It reads digital ON/OFF signals, typically 24 VDC.
-
Q: Is the module hot-swappable?
A: No, the module should be powered down during replacement to avoid system faults.
-
Q: Can this module be used in safety-critical applications?
A: Yes, especially in systems where diagnostic feedback and isolation are required.
-
Q: Does the module support redundancy?
A: Yes, redundancy can be configured at the system level.
-
Q: Are the input channels isolated from each other?
A: No, channels share common isolation, but the module is isolated from the system bus.
-
Q: Is the firmware field-upgradable?
A: No, this module does not have user-upgradable firmware.
-
Q: What is the typical installation environment?
A: Control cabinets with controlled temperatures and industrial-grade power.
-
Q: Can the module be installed in a redundant I/O configuration?
A: Yes, the system allows pairing of input modules in redundant racks. However, redundancy is handled at the system architecture level and requires configuration in the control system software.
