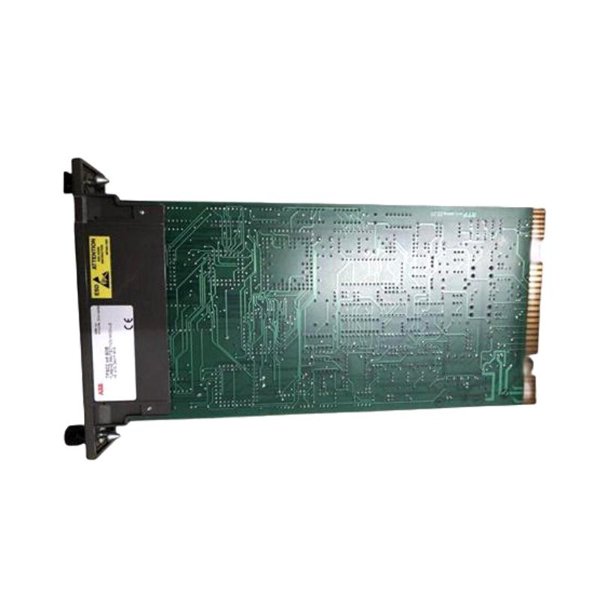

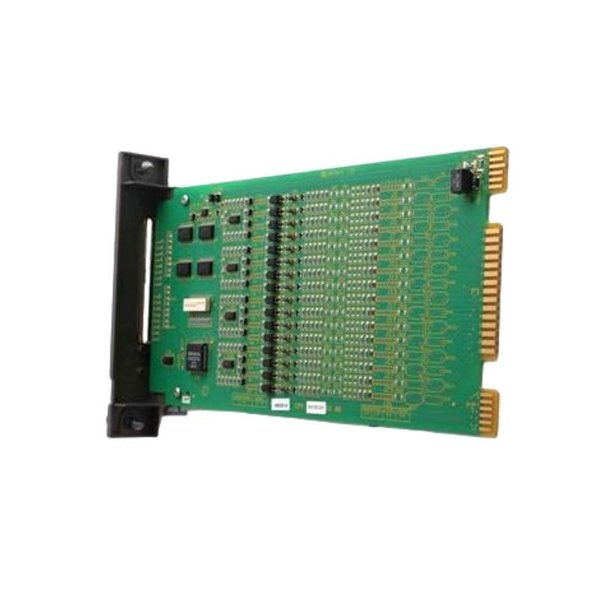

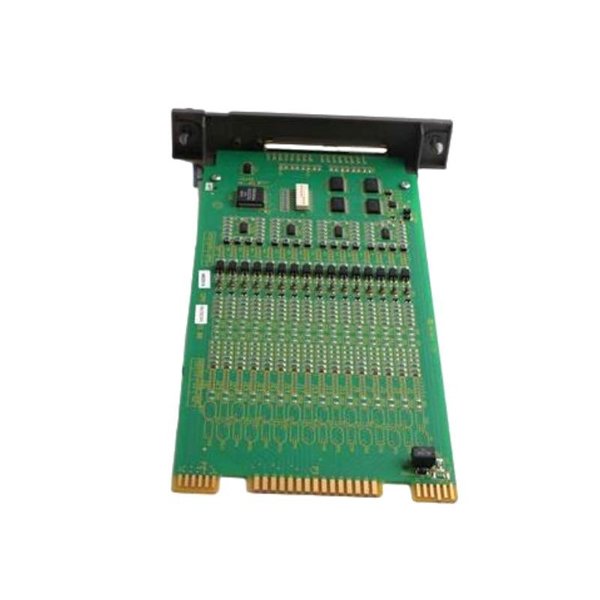

ABB Bailey SPSDI14 16-channel Digital Input Module

The ABB Bailey SPSDI14 is a high-performance 16-channel digital input module specifically designed for ABB INFI 90 and Symphony series Distributed Control Systems (DCS). As part of the Bailey family of I/O modules, the SPSDI14 facilitates reliable monitoring of digital signals from field devices such as switches, relays, limit sensors, and alarm contacts.

This module enables real-time status acquisition by converting discrete voltage-level changes in the field into logic-level inputs that are recognized by the controller. It plays a crucial role in gathering binary state information required for decision-making in automated industrial processes.

With built-in isolation, high-speed response, and system diagnostics, the SPSDI14 delivers operational integrity, robust performance, and seamless integration into ABB’s modular and scalable control architectures. It is widely used in power generation, oil and gas, chemical processing, water treatment, and manufacturing automation.

Technical Specifications

Product Applications

The SPSDI14 module plays a pivotal role in discrete signal acquisition across various industrial sectors. Its versatility and robust performance make it ideal for:

• Power Plants

  Monitors breaker positions, valve limits, trip circuits, and safety switches.

• Oil & Gas Facilities

  Acquires on/off signals from pressure switches, tank level alarms, and pump status relays.

• Water & Wastewater Treatment

  Reads digital states from flow switches, pump starters, and fault indicators.

• Industrial Manufacturing

  Tracks conveyor limit switches, machine safeties, and interlocks.

• Substation Automation

  Collects binary data from protection relays, isolators, and SCADA I/O extensions.

• Chemical Processing Units

  Monitors batch process completion signals, emergency stops, and tank interlocks.

Product Advantages

• High Channel Density

  16 discrete input channels in a compact form factor reduce panel space usage.

• Optical Isolation

  Ensures electrical noise immunity and protection from field-side surges.

• Individual Channel LEDs

  Real-time status visualization aids quick field diagnostics and commissioning.

• System Integration

  Fully compatible with ABB INFI 90 and Symphony Plus DCS frameworks.

• Flexible Mounting Options

  Can be installed in standard racks or DIN rail enclosures for adaptability.

• Wide Voltage Tolerance

  Accepts a broad input range, minimizing the risk of input misreads in unstable environments.

• Hot Swap Capability

  Module replacement without system shutdown (when configured in redundancy).

• Built-in Diagnostics

  Monitors channel health and communication integrity with fault detection.

• Robust Design

  Built for operation in harsh industrial conditions with wide temperature and humidity tolerance.

Frequently Asked Questions (FAQ)

1. Can SPSDI14 handle both NPN and PNP type field inputs?

   Yes. The module accommodates a wide variety of input wiring schemes as long as the signal voltage levels comply with the required logic thresholds.

2. How is the status of each input channel displayed?

   Each channel has a dedicated LED indicator to show the current state (ON/OFF) in real time.

3. Does the SPSDI14 support redundancy?

   Yes, it can be configured as part of a redundant I/O subsystem to ensure continuous operation in case of hardware faults.

4. What protection is offered against electrical noise or voltage spikes?

   Each input is optically isolated and includes built-in surge protection to withstand typical industrial transients.

5. Is it possible to hot-swap this module during runtime?

   In redundant configurations, SPSDI14 supports hot-swapping to avoid control system downtime during replacement.

6. What happens if one of the input channels fails?

   The system diagnostic functions will flag the issue, and channel-specific fault data can be retrieved via the control software.

7. Can the debounce time for digital signals be configured?

   Yes, filtering and debounce settings are configurable through ABB’s system configuration tools.

8. Is the SPSDI14 suitable for safety-critical inputs?

   While not SIL-certified, it is often used in non-SIL safety-critical digital monitoring scenarios where field reliability is essential.

9. How are field devices connected to this module?

   Each digital input is connected through the field terminal strip on the system rack or I/O carrier, depending on installation.

10. What types of signals can the SPSDI14 read?

    The module detects standard dry contact closures and voltage-level transitions from 24 VDC logic sources.
