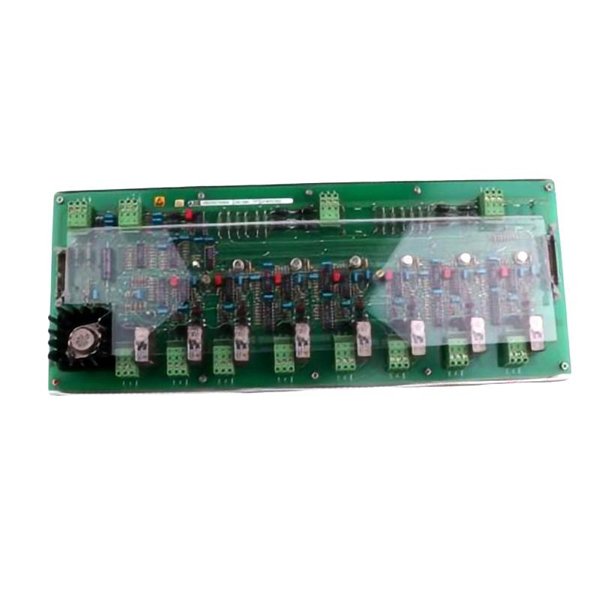

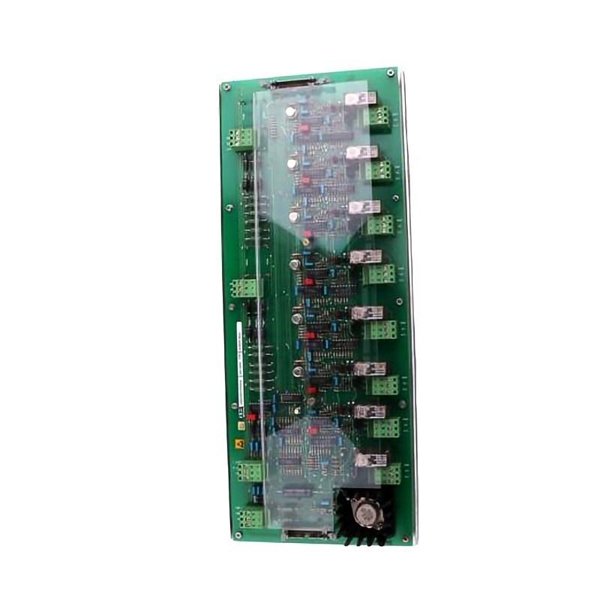

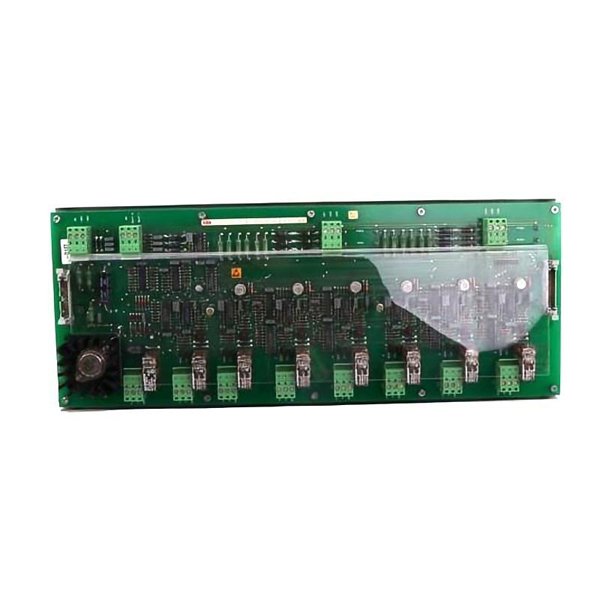

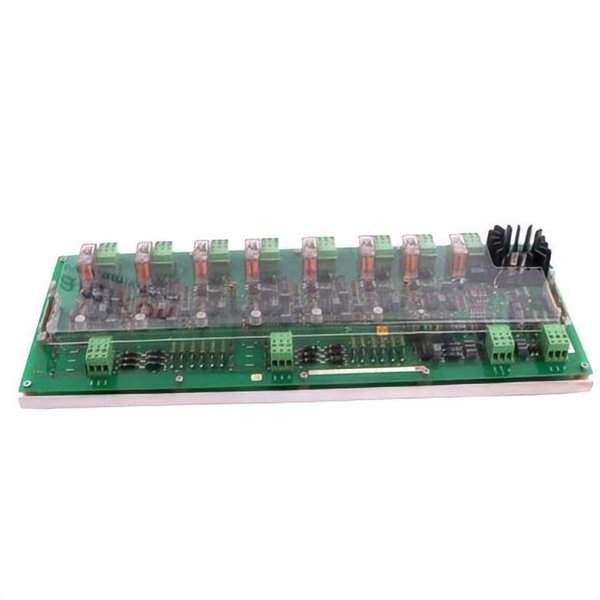

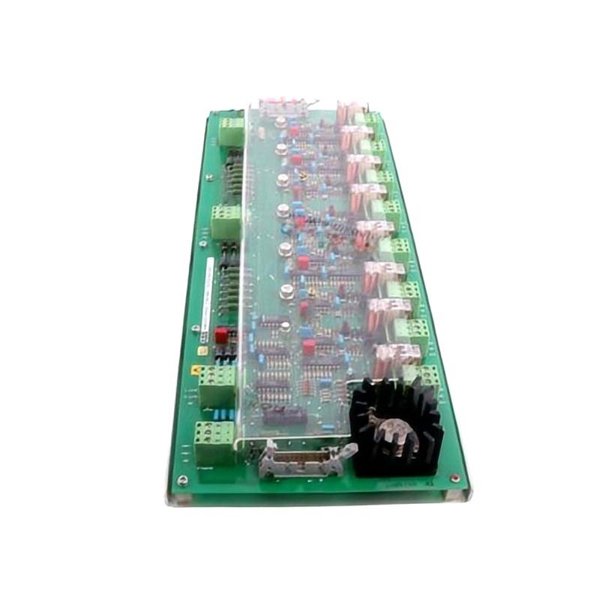

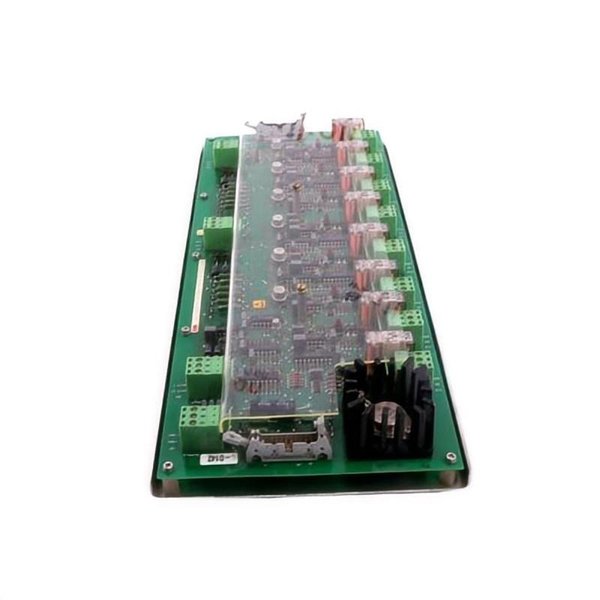

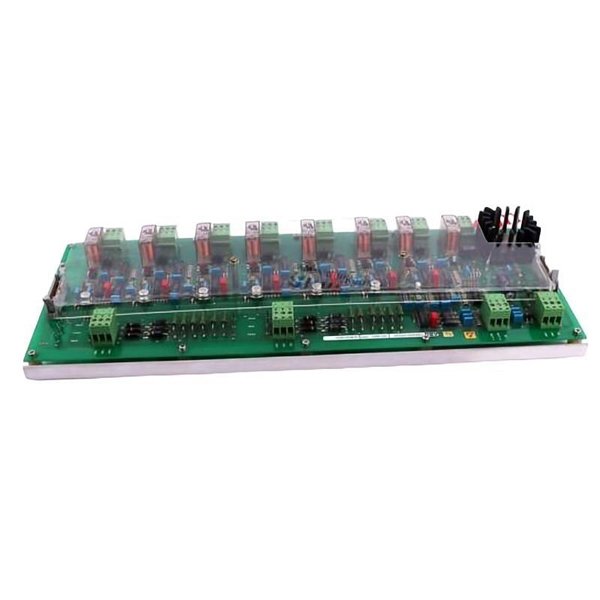

ABB US B030 AE02 HIEE200072R2 Power Supply Module

The ABB US B030 AE02 HIEE200072R0002 power supply module is a critical component designed to provide stable and reliable power to industrial control systems. Built by ABB, a globally recognized leader in automation technology, this module is widely used in distributed control systems (DCS) and other automation platforms where dependable power delivery is essential.

This power supply module is engineered to convert and regulate incoming electrical power into a stable DC output, supporting various control units and communication modules within the system. Its robust construction allows it to operate continuously in demanding industrial environments such as manufacturing plants, oil and gas facilities, chemical plants, and power generation stations. The unit’s reliability minimizes downtime, supports system stability, and enhances the overall safety of automation processes.

Technical Specifications

Applications

The ABB US B030 AE02 power supply module is designed for use in a broad spectrum of industrial and automation environments, including but not limited to:

• Distributed control systems (DCS) in manufacturing and processing plants

• Process automation in oil and gas extraction and refining

• Power generation and distribution control panels

• Chemical and pharmaceutical production systems

• Automated assembly lines in heavy industry

• SCADA systems requiring reliable power sources

• Critical infrastructure facilities where power stability is paramount

Product Advantages

• Reliable Power Delivery: Provides stable and consistent 24 VDC power output ensuring uninterrupted operation of control systems.

• Wide Input Range: Accepts a broad range of AC and DC input voltages, allowing flexible installation in diverse environments.

• Robust Design: Constructed to withstand harsh industrial conditions including temperature variations and electrical disturbances.

• Comprehensive Protection: Built-in safeguards against over-voltage, overload, and short-circuit conditions help protect both the module and connected equipment.

• Ease of Installation: DIN rail mounting and terminal block connectors simplify setup and maintenance.

• Low Maintenance: Designed for long operational life with minimal maintenance requirements, reducing total cost of ownership.

Frequently Asked Questions (FAQ)

1. What systems are compatible with the ABB US B030 AE02 power supply module?

This module is compatible with ABB distributed control systems such as Symphony and Advant, as well as other automation platforms that require 24 VDC power supplies.

2. What input voltage does this power supply support?

It supports a wide input voltage range from 85 to 264 VAC and from 100 to 300 VDC.

3. How is this module mounted?

The module is designed for easy installation on a standard DIN rail.

4. Does this power supply module have built-in protections?

Yes, it includes over-voltage, overload, and short-circuit protections to ensure safe operation.

5. What is the operating temperature range of the module?

It can operate in environments from -20°C up to +60°C.

6. Is this module suitable for hazardous environments?

While it is rugged and industrial-grade, specific hazardous area certifications (e.g., ATEX) should be verified depending on the application.

7. Can the module be hot-swapped during operation?

No, it is recommended to power down the system before replacing the module to ensure safety.

8. What is the typical lifespan of this power supply module?

The module has an MTBF of over 200,000 hours, indicating long-term reliability under normal operating conditions.

9. Are there status indicators on the module?

Most units come equipped with LED indicators for power presence and fault detection.

10. How can I maintain this power supply module?

Regular inspections for dust, tightness of electrical connections, and verification of output voltages are recommended. The unit itself is designed for minimal maintenance.
