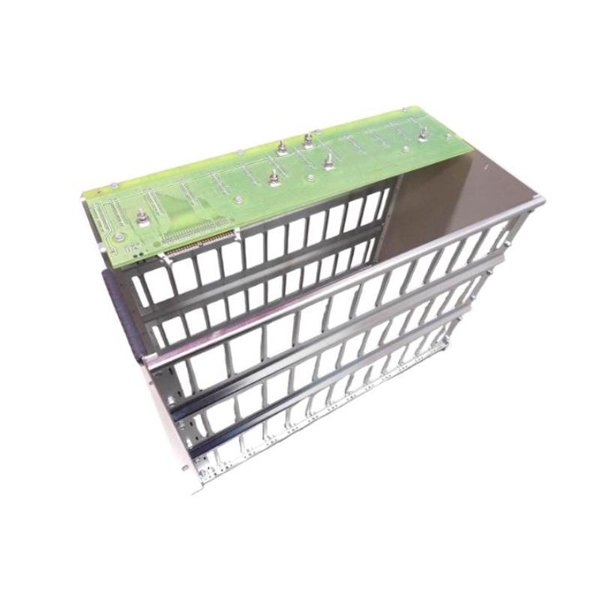

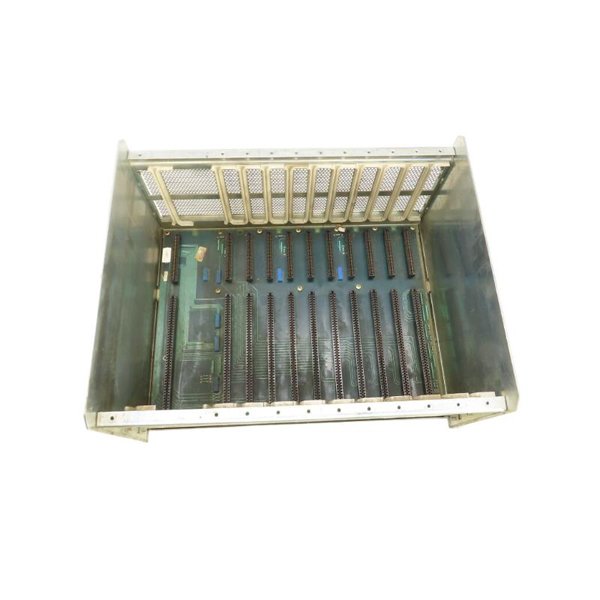

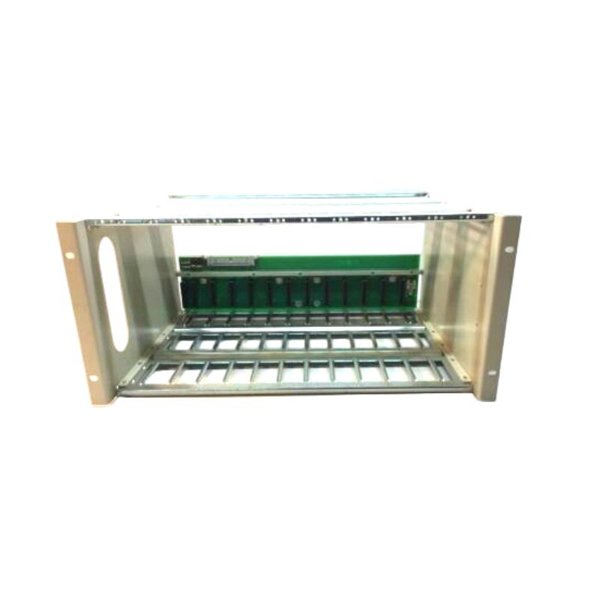

Ovation 1D54557G07 Slot-Mounted Chassis

The Ovation 1D54557G07 slot-mounted chassis is a robust and highly versatile component in the Ovation series designed for industrial automation systems. It serves as the backbone of the Ovation control system, housing various I/O modules, communication cards, and processing units in a high-performance, modular framework. The 1D54557G07 chassis provides essential features such as power distribution, module slot integration, and flexibility in industrial settings, including process control, manufacturing automation, and power distribution applications.

Constructed with industrial-grade materials, the chassis ensures reliable performance in high-demand environments, allowing Ovation modules to be installed securely for seamless operation. Its compact design (320 x 230 x 180 mm) and lightweight nature (1.5 kg) provide both space-saving advantages and ease of handling, ideal for compact control rooms, rack-mounted systems, and distributed automation setups.

With a high-density slot configuration, the Ovation 1D54557G07 chassis supports efficient integration with various Ovation control modules—perfect for applications where signal management, data processing, and device communication are essential to automation systems.

Product Specifications

Product Applications

The Ovation 1D54557G07 slot-mounted chassis is ideal for numerous applications in industrial control, including:

1. Process Automation Systems

   The chassis supports integration with a wide array of Ovation control modules, ensuring the management and optimization of process control systems in industries such as chemical processing, refineries, and petrochemical plants.

2. Power Generation

   In power plants, the chassis accommodates various modules that handle power distribution, monitoring, and feedback loops. It enables effective control of boiler systems, turbines, and generators.

3. Manufacturing Automation

   Used in industrial automation systems, the chassis provides a centralized location for multiple I/O modules, enabling streamlined control over automated production lines, robotic systems, and conveyor networks.

4. HVAC Control Systems

   The chassis is used in HVAC systems to house control modules that manage the regulation of temperature, humidity, and air quality in commercial buildings or factories.

5. Distributed Control Systems (DCS)

   The chassis is a key component in DCS setups, allowing multiple field modules to connect to a central control unit for coordinated operations, especially in large-scale facilities.

6. Test and Measurement Systems

   The Ovation 1D54557G07 chassis also serves as the housing for modules in test systems, including those used for quality assurance, diagnostics, and calibration of complex equipment.

Product Advantages

1. Modular Design for Flexibility

   With up to 7 slots for module installation, the Ovation 1D54557G07 chassis allows for the easy addition of various modules to adapt to different system requirements. It enables users to scale systems as needed, providing unparalleled flexibility in design.

2. Durable Construction

   The chassis is made of high-quality steel with a durable finish, designed to withstand the harsh conditions often found in industrial environments. Its IP20 rating ensures protection from dust and other contaminants.

3. Efficient Power Distribution

   The 24 V DC power supply is distributed effectively to all connected modules, minimizing power loss and ensuring efficient system operation. This feature ensures reliable performance for both continuous and critical applications.

4. Compact and Lightweight

   The 1.5 kg weight and compact size (320 x 230 x 180 mm) make this chassis suitable for space-constrained environments. Its rack-mountable design simplifies installation and maintenance.

5. Enhanced System Integration

   With multiple slots available for integration, the chassis allows for seamless communication between modules, enabling complex automation processes and precise system control.

6. Temperature Range Suitability

   The operating temperature range of -20°C to 60°C ensures that the Ovation 1D54557G07 can function effectively in a variety of environments, from cold storage facilities to high-temperature industrial plants.

FAQ

1. What is the maximum number of modules that can be installed in the Ovation 1D54557G07 chassis?

   The Ovation 1D54557G07 chassis can accommodate up to 7 modules.

2. What power supply does the chassis require?

   The Ovation 1D54557G07 requires a 24 V DC power supply.

3. What environmental rating does the Ovation chassis have?

   The chassis has an IP20 environmental rating, offering protection against dust and moisture in non-hazardous environments.

4. Is the chassis suitable for high-temperature environments?

   Yes, the chassis operates in a temperature range from -20°C to 60°C, making it suitable for both low and high-temperature environments.

5. What types of systems can use the Ovation 1D54557G07 chassis?

   It can be used in process automation systems, power generation, manufacturing automation, HVAC systems, DCS, and test & measurement systems.

6. What material is the chassis made from?

   The chassis is constructed from steel with a durable finish for strength and protection.

7. How is the chassis mounted?

   The Ovation 1D54557G07 is designed for rack-mounting, making it suitable for control panels or centralized automation setups.

8. Can the Ovation 1D54557G07 chassis be used in hazardous environments?

   The chassis is rated IP20, which means it is not designed for environments with significant dust or moisture. It is ideal for general industrial use in non-hazardous environments.

9. Is the chassis compatible with all Ovation modules?

   Yes, the Ovation 1D54557G07 chassis is designed to accommodate various Ovation I/O modules, communication cards, and processing units.

10. What is the weight of the Ovation 1D54557G07 chassis?

    The chassis weighs approximately 1.5 kg, making it lightweight and easy to install.
