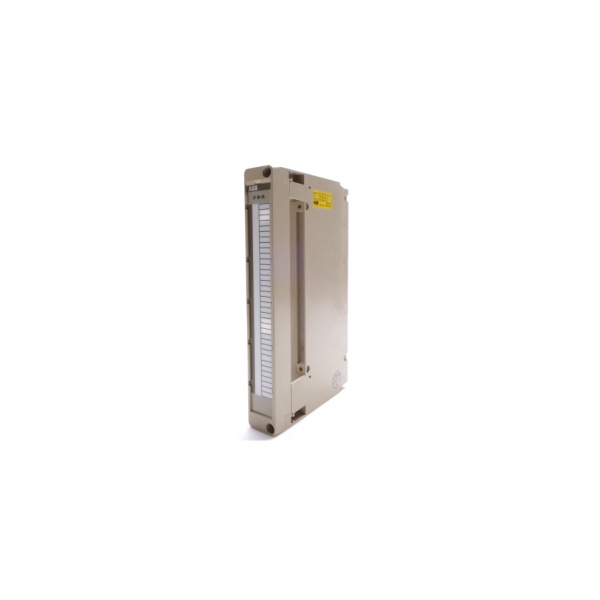

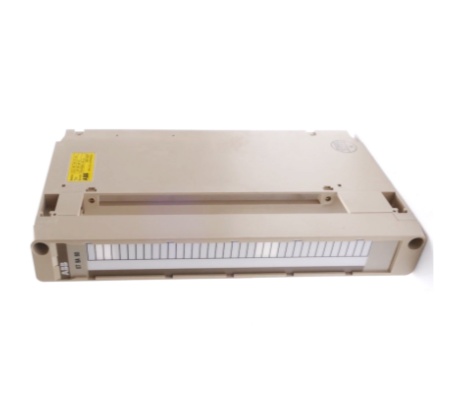

ABB 07BA60 GJV3074397R1 Binary Output Module

The ABB 07BA60 GJV3074397R1 is a binary output module designed for use with ABB S800 I/O system or other automation control systems. It is used to control binary outputs in industrial applications, allowing direct connection with actuators, relays or other devices requiring simple on/off control.

The 07BA60 module supports multiple digital outputs. It comes with 8 or 16 channels, each of which can be controlled individually. For most industrial control systems, the outputs are typically rated for 24V DC, ensuring compatibility with a wide range of actuators and control devices.

Each output channel is capable of providing a specific current, approximately 0.5 A to 2 A per channel. This current rating supports the control of a wide range of industrial devices such as relays, actuators, or other field devices.

The module communicates with the rest of the I/O system in a rack-mount configuration via a backplane and typically supports ABB proprietary protocols for control systems. If used in a distributed control system, the module can also support communication protocols such as Modbus, Profibus, or Ethernet/IP.

Frequently asked questions about the product are as follows:

-How many output channels does the ABB 07BA60 module support?

The 07BA60 binary output module typically supports 8 or 16 channels, each capable of controlling a binary output signal.

-What is the output voltage of the ABB 07BA60 binary output module?

The 07BA60 module supports 24V DC output.

-Does the ABB 07BA60 module provide any diagnostic features?

The 07BA60 module typically includes LED indicators to show the on/off status of each output channel. It also has diagnostic features that can alert the system to any faults, such as overload, open circuit or short circuit.
