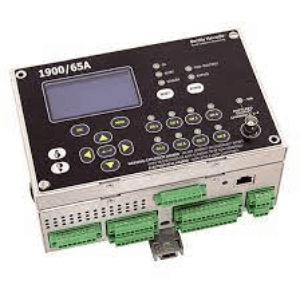

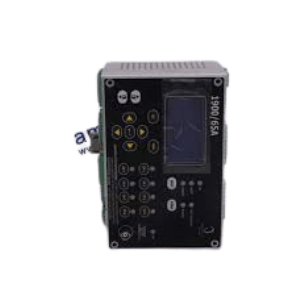

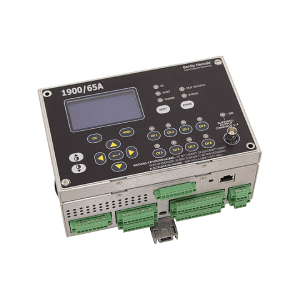

Bently Nevada 172323-01 167699-02 1900/65A Display Module

The Bently Nevada 172323-01 167699-02 1900/65A supports an optional display/keypad, which allows users to view channel information or make minor configuration adjustments. This feature enables the 1900/65A to function as a standalone unit. If desired, the display can be located up to 75 meters (250 feet) away from the Monitor Module.

Feature List

• Compact size:
  • Monitor Module: 196.9 mm x 149.4 mm x 74.4 mm (7.75” x 5.88” x 2.93”).
  • Monitor Module with attached Display Module: 196.9 mm x 149.4 mm x 97.8 mm (7.75” x 5.88” x 3.85”).
• Buffered Outputs:
  • Display Module: A single buffered output on the Display Module provides access to input Channels 1 through 4. The signal is not amplified or scaled, and this output is buffered to offer protection against short circuits and electromagnetic interference (EMI).
  • Output Impedance: 550 Ω
  • Bandwidth:
    • Minimum 40 kHz (when Display Module is attached directly to Monitor)
    • Minimum 8 kHz (when connected with 75 m or 250 ft. of cable)

Display Module

• OK LED: This LED illuminates to indicate that the monitor is functioning correctly.

The 1900/65A General Purpose Equipment Monitor is designed to be a versatile and cost-effective solution for the continuous monitoring and protection of equipment in various applications and industries.
