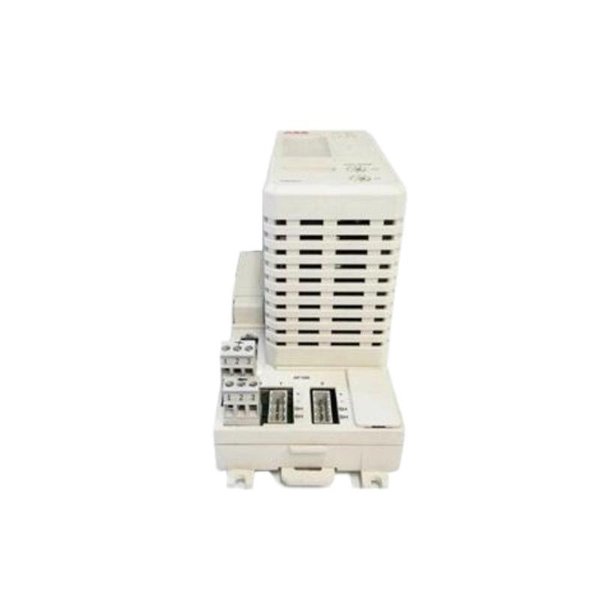

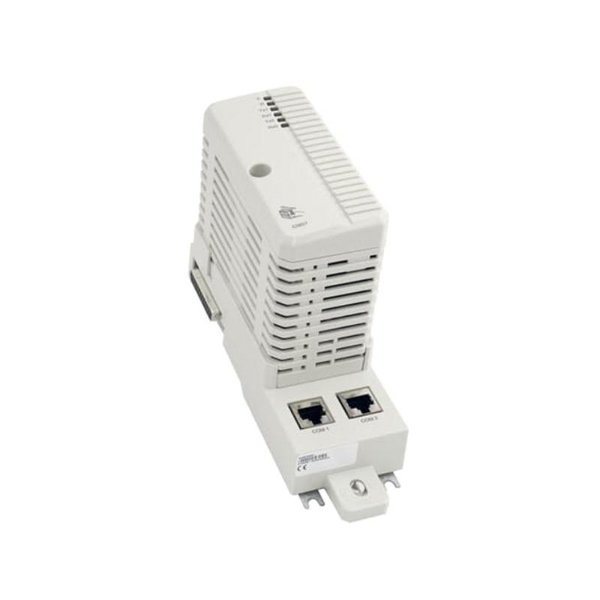

ABB CI857K01/CI857 3BSE018144R1 AC 800M Communication Interface Module

The ABB CI857K01 / CI857 3BSE018144R1 is a communication interface module used within the AC 800M control system to enable integration with ABB’s INSUM system. This module allows the AC 800M controller to communicate with intelligent switchgear devices using ABB’s proprietary INSUM protocol over Ethernet. Designed for robust industrial environments, it supports multidrop configurations, extended communication distances, and time synchronization functionalities.

It communicates via standard 10 Mbit/s Ethernet, uses an RJ-45 interface, and integrates seamlessly with INSUM Communication Libraries through function blocks. Power is supplied directly from the processor unit over the CEX-Bus, eliminating the need for an external power source.

Technical Specifications

Applications

• Integration of intelligent motor control units (MCUs) in substations

• Industrial switchgear communication using INSUM

• Power distribution automation

• Process industries requiring Ethernet-based monitoring of electrical assets

• Centralized control systems using AC 800M series controllers

Advantages

• Seamless integration with ABB’s INSUM system

• No external power source required (powered via CEX-Bus)

• High scalability: up to 256 devices per controller

• Supports hot swapping for minimal downtime

• Ethernet communication enables extended cabling distance and reliability

• Compliant with industrial standards (CE, RoHS, IP20)

• G3-rated corrosion protection for harsh environments

FAQ

Q1: What is the primary function of the CI857 module?

A1: It enables communication between the AC 800M controller and ABB’s INSUM intelligent switchgear devices.

Q2: Does the CI857 support hot swapping?

A2: Yes, it supports hot swap for ease of maintenance and minimal downtime.

Q3: What is the maximum number of CI857 modules allowed per AC 800M controller?

A3: Up to 6 CI857 modules can be used per AC 800M.

Q4: What is the maximum number of devices a single CI857 can manage?

A4: Each CI857 can handle up to 128 INSUM devices.

Q5: Is an external power supply required for CI857 operation?

A5: No, it is powered via the CEX-Bus from the controller unit.

Q6: What type of connector does CI857 use?

A6: It uses a standard RJ-45 female 8-pin Ethernet connector.

Q7: What environmental conditions is CI857 designed for?

A7: Operating temperature from +5 to +55 °C, storage from -40 to +70 °C, and G3 corrosion resistance.

Q8: Is CI857 compliant with industrial safety and environmental directives?

A8: Yes, it is CE-marked, RoHS, and WEEE compliant.

Q9: What communication speed does CI857 support?

A9: It supports a communication speed of 10 Mbit/s.

Q10: What is the protection class of CI857?

A10: It is IP20 rated according to EN60529 and IEC 529 standards.
