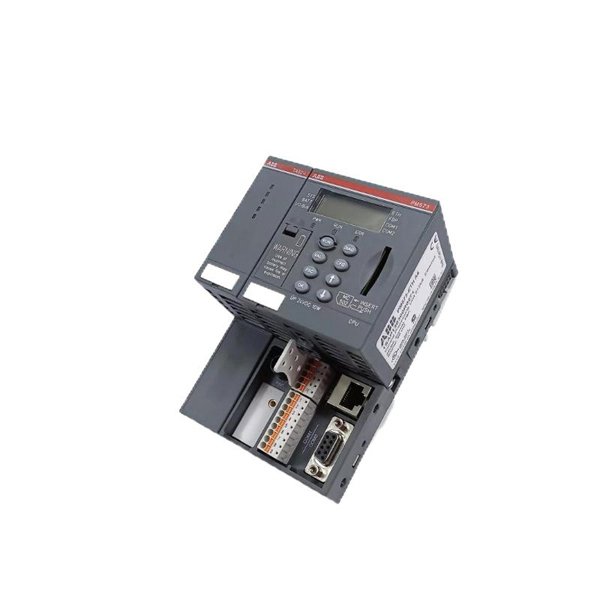

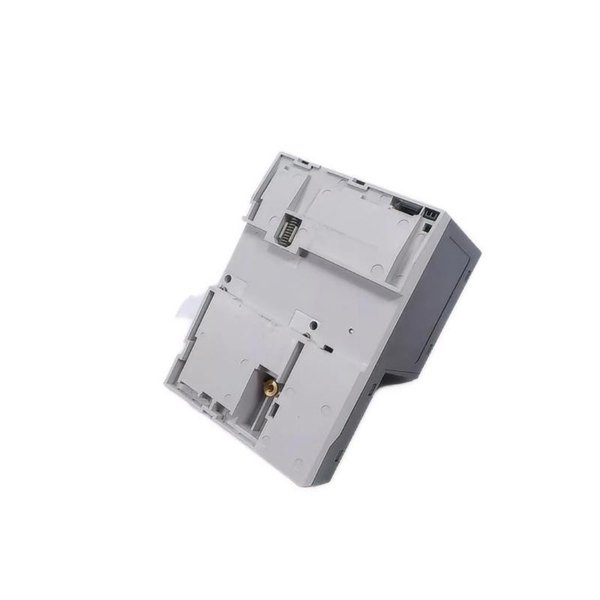

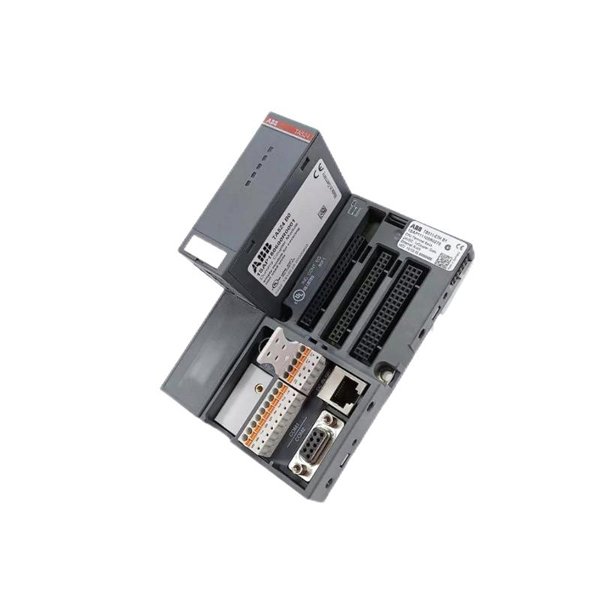

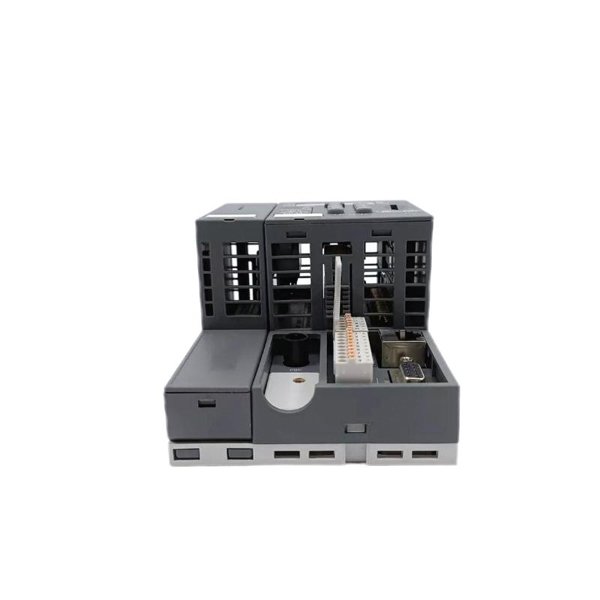

ABB PM573 CPU Programmable Logic Controller

The ABB PM573 is a compact yet powerful CPU module belonging to the ABB AC500 series of programmable logic controllers (PLCs). Engineered to meet the growing demands of industrial automation, the PM573 offers high-speed processing, flexible communication capabilities, and modular scalability, making it ideal for a wide range of applications in factory automation, process control, infrastructure management, and machine building.

Technical Specifications

Applications

The ABB PM573 is suitable for a wide range of industrial applications, including:

• Manufacturing Automation: Control of assembly lines, robotic systems, and machinery.

• Process Control: Monitoring and controlling processes in chemical, pharmaceutical, and food industries.

• Building Automation: Managing HVAC systems, lighting, and security systems.

• Energy Management: Supervising power generation, distribution, and consumption.

• Water and Wastewater Management: Controlling treatment processes and distribution networks.

• Transportation Systems: Automation in railways, airports, and traffic management.

Key Advantages

• High Performance: Fast processing speed ensures efficient execution of complex control tasks.

• Scalability: Supports expansion with up to 10 I/O modules, accommodating growing system needs.

• Flexible Communication: Multiple interfaces (Ethernet, RS232/485, FBP) for seamless integration.

• User-Friendly Interface: LCD display with function keys for easy monitoring and configuration.

• Robust Design: Operates reliably in a wide temperature range and industrial environments.

• Compliance: Meets international standards and certifications for safety and performance.

Frequently Asked Questions (FAQ)

1. What is the processing speed of the PM573?

   The PM573 operates at 200 MHz, providing fast and efficient processing for control applications.

2. How much memory does the PM573 have?

   It has 512 kB of user program memory and 512 kB of user data memory.

3. What communication interfaces are available?

   The PM573 includes Ethernet, two RS232/485 ports, and FBP communication interfaces.

4. Can the PM573 be expanded with additional I/O modules?

   Yes, it supports expansion with up to 10 I/O modules, allowing for 320 digital and 160 analog I/Os.

5. What is the operating temperature range?

   The module operates within a temperature range of 0°C to +60°C.

6. Is the PM573 suitable for building automation?

   Yes, its features make it ideal for applications in building automation, including HVAC and lighting control.

7. What is the protection class of the PM573?

   It has an IP20 protection class, suitable for installation in control cabinets.

8. Does the PM573 have a display for user interaction?

   Yes, it features an LCD display with one line and eight function keys for user interaction.

9. What mounting options are available?

   The PM573 is designed for DIN rail mounting (TH35-15).

10. What certifications does the PM573 hold?

    It is certified with CE, CSA, cULus, and EAC standards.
