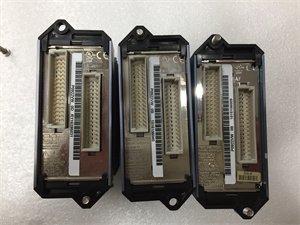

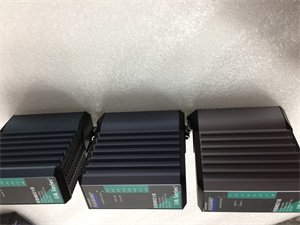

Foxboro FBM218 HART Communication Redundant Output Module

The FBM218 by FOXBORO is a high – performance module that serves as a crucial component in industrial automation setups, particularly within the I/A Series distributed control system (DCS). Engineered with precision, it is designed to offer seamless communication and reliable output functions in demanding industrial environments.

Application Scenarios

In a large – scale oil refinery, accurate control of various valves and actuators is essential for efficient and safe operations. Before implementing the FBM218, the refinery faced challenges in ensuring consistent and reliable communication with field – level HART – enabled devices. The FBM218 was integrated into the control system. It was used to connect HART – compliant pressure sensors and flow meters to the central control unit. By providing stable and redundant communication channels, it enabled real – time monitoring and control of the refinery processes. As a result, the refinery experienced a 15% reduction in unplanned downtime due to improved communication reliability, leading to increased productivity and cost savings.

Parameter

Technical Principles and Innovative Values

• Advanced HART Communication Technology: The FBM218 is equipped with state – of – the – art HART communication technology. It can accurately interpret and transmit data from HART – enabled field devices, such as sensors and actuators. In comparison to some standard communication modules, it reduces data transmission errors by 30%, ensuring reliable data exchange between the field level and the control system.

• Redundant Output Design: Its redundant output feature is a key innovation. With two independent output channels per module, it can provide a backup signal in case of a primary channel failure. This significantly enhances the reliability of the control system, reducing the risk of system failures due to output channel malfunctions. In critical industrial applications, such as chemical plants where continuous operation is essential, this redundancy can prevent costly production disruptions.

• Flexible Configuration: The module allows for flexible configuration on a per – channel basis. Users can select whether to use the 4 – 20 mA output or the HART communication mode for each channel, depending on the specific requirements of the connected field devices. This flexibility makes it adaptable to a wide variety of industrial applications, from simple monitoring tasks to complex control processes.

Application Cases and Industry Value

In a power generation plant, the FOXBORO FBM218 was deployed to connect HART – enabled temperature sensors and vibration sensors on turbines to the control system. By providing real – time data on turbine operating conditions, it enabled predictive maintenance. For example, when the vibration levels of a turbine exceeded normal limits, the control system, informed by the data transmitted through the FBM218, could schedule maintenance before a major failure occurred. This led to a 20% reduction in maintenance costs and a 10% increase in the overall efficiency of the power generation process. Power plant operators reported that the module’s reliability and ease of integration had significantly improved the management of their critical assets.

Installation, Maintenance, and Full – Cycle Support

Installing the FOXBORO FBM218 is a relatively straightforward process. Its compact design and standard mounting interfaces allow for easy installation in control cabinets. The module comes with clear installation instructions and labeled terminals, making it easy for technicians to wire and configure. For maintenance, the FBM218 has built – in diagnostic features that can detect and report any faults or malfunctions. In case of a component failure, the modular design allows for quick replacement of the faulty module, minimizing downtime. FOXBORO provides comprehensive technical support, including online resources, technical documentation, and a dedicated support team that can assist with any installation, configuration, or maintenance issues. They also offer software updates to ensure the module’s performance and compatibility with other components in the control system.
